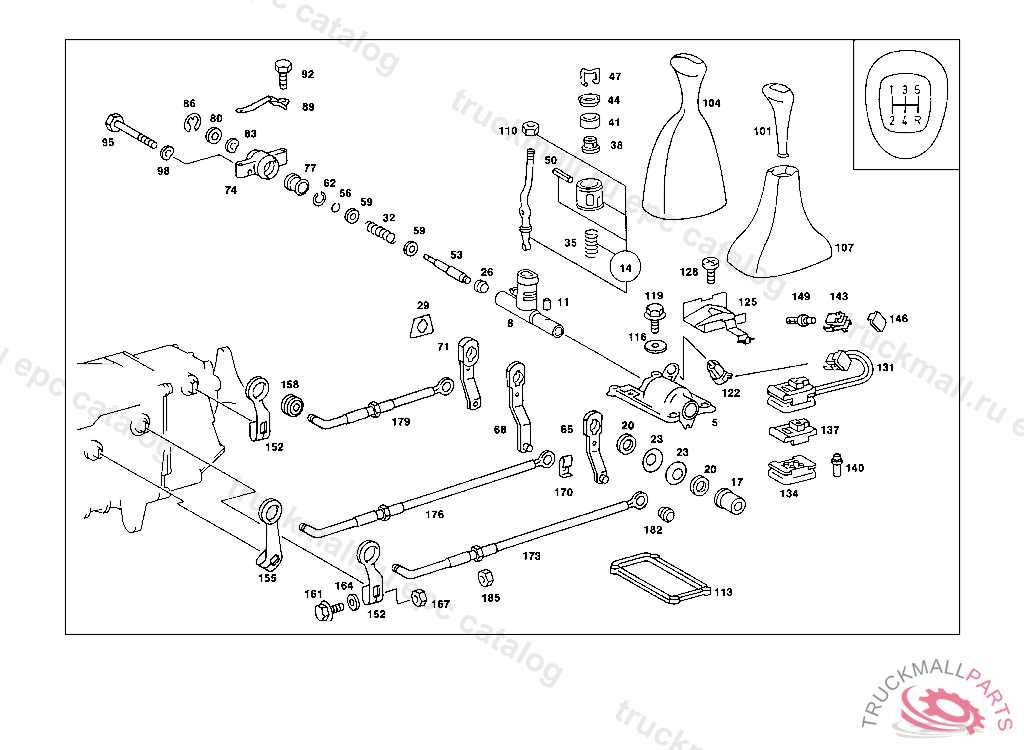

300 TD - 123.190 - 26 TRANSMISSION

5

BEARING

8

SHIFTING TUBE

11

PIN

14

SHIFT LEVER RANGE OF DELIVERY

17

BUSHING SHIFTING TUBE

20

SPACER WASHER

23

DISC SPRING

26

BUSHING SHIFTING TUBE

29

WASHER

32

SPRING SHIFTING TUBE

35

SPRING SHIFTING TUBE

38

BUSHING , 003 110322 007 099339 086 007515 093 011074 102,103 307216 105 267872 183 019925 190 025456 200 085537 280 003577 283 009004

41

BUSHING SHIFTING TUBE

44

COVER

47

SPRING

50

CLAMPING SLEEVE , Replaced By: N001481005017

50

CLAMPING SLEEVE

53

GUIDE PIVOT SHIFTING TUBE

56

SNAP RING

59

WASHER

62

LOCK

65

SHIFT LEVER 1ST AND 2ND SPEED

68

SHIFT LEVER 3RD AND 4TH SPEED

71

SHIFT LEVER 5TH SPEED AND REVERSE

74

BEARING

77

BUSHING

80

WASHER

83

SPRING WASHER SHIFTING CYLINDER TO YOKE

86

LOCK

89

SLOTTED GATE

92

SCREW STOP PLATE TO BEARING BRACKET

95

SCREW SOLENOID VALVE TO TRANSMISSION CASE TOP COVER M 6X32,002,003,006-009 4 263014-4 422632,034,134 4 276784-4 422632

98

SPRING WASHER LICENSE PLATE TO BRACKET

101

HANDLE

104

GEARSHIFT LEVER GEARSHIFT LEVER WITH LEATHER COVER

107

BOOT

110

NUT

113

GASKET

116

WASHER , Replaced By: N009021006208

116

WASHER COMPRESSED AIR LINE TO BRACKET

119

SCREW BEARING BRACKET TO TUNNEL

122

SWITCH BACK-UP LIGHT SWITCH

125

BRACKET CABLE HARNESS

128

SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING

131

CABLE HARNESS

131

CABLE HARNESS , Replaced By: A1245403310

134

PLUG HOUSING DOUBLE

137

COVERTO 007 545 00 28

140

PLUG PIN ADDITIONAL CABLE TO SERIES CABLE

143

PIN BUSHING HOUSING BIPOLAR

146

COVERTO 010 545 10 28

149

ROUND PIN BUSHING2.5 MM2

149

PIN BUSHING , Replaced By: A0025459926

152

LEVER 1ST,2ND,5TH SPEED AND REVERSE

155

LEVER 3RD AND 4TH SPEED

158

BUSHING , 102,103 219674 ALSO INSTALLED ON 219935,219936,220064,220096,220332. EXCEPT FOR 219267,219275,219283,219285,219287,219293,219296,219301,219302,219304,219307,219309,219313,219317, 219319-219321,219325,219326,219328-219331,219333,219335,219336,219338,219339,219341,219342,219346, 219347,219350,219351,219354,219357-219361,219363-219380,219384,219385,219387-219389,219391-219395, 219397,219399,219400,219402-219409,219411-219415,219417-219422,219424-219426,219428-219435,219437, 219439-219447,219449-219453,219459-219471,219473-219483,219485-219499,219502-219516,219520-219599, 219601-219673. 183 014172 ALSO INSTALLED ON 014174-014198,014203,014209,014215,014221,014225,014231,014407,014486,014630.

161

SCREW SHIFT LEVER TO TRANSMISSION

164

WASHER COMPRESSED AIR LINE TO BRACKET

164

WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449

167

NUT CYLINDER TO BRACKET TO0002902112

167

NUT BATTERY MOUNTING

170

LOCK

173

ROD 1ST AND 2ND SPEED

176

ROD 3RD AND 4TH SPEED

179

ROD 5TH SPEED AND REVERSE

182

BUSHING FROM LEVER TO VALVE BODY ASSEMBLY

182

BUSHING

185

NUT
