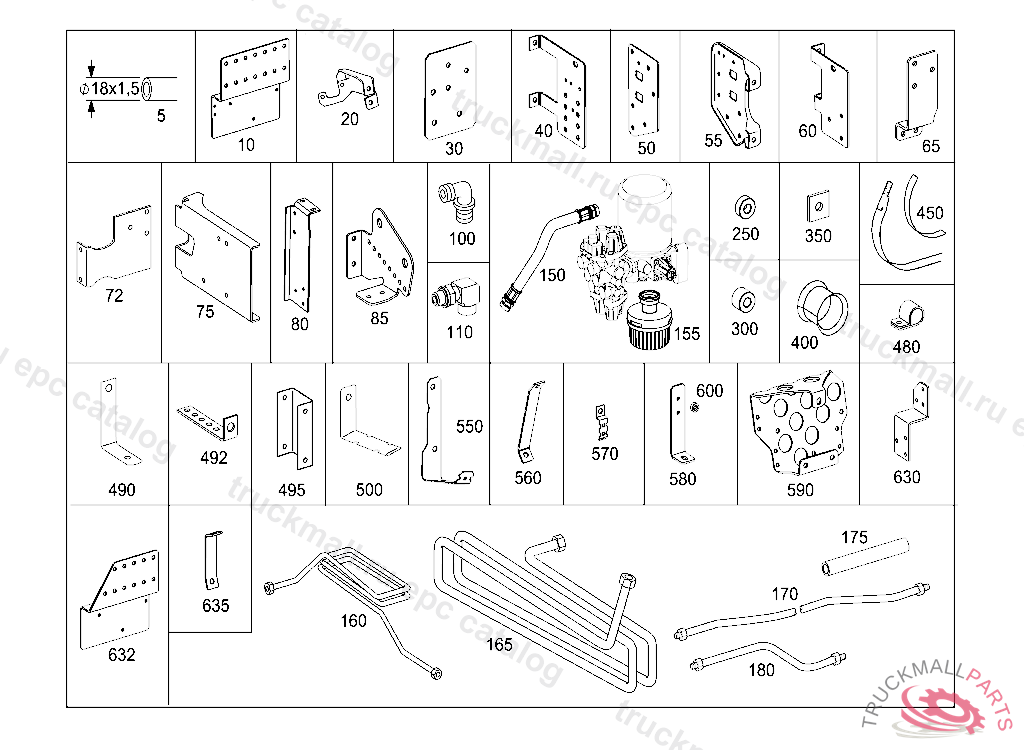

Поз.
Артикул
Описание
5
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
5
LINE AIR COMPRESSOR LINE 18X1.5MM, TO BE ADAPTED DURING ASSEMBLY LENGTH AVAILABLE: 6 000 MM
5
COMPRESSED AIR LINE AIR COMPRESSOR LINE 18X1.5MM, Replaced By: A0005516456
5
COMPRESSED AIR LINE AIR COMPRESSOR LINE 18X1.5MM, Replaced By: A0005516456
10
BRACKET MOUNTING PARTS
10
BRACKET MOUNTING PARTS
20
BRACKET MOUNTING PARTS
30
BRACKET MOUNTING PARTS 5MM
30
BRACKET MOUNTING PARTS
30
BRACKET MOUNTING PARTS
40
BRACKET MOUNTING PARTS
50
BRACKET AIR DEHYDRATOR
55
BRACKET AIR DEHYDRATOR
60
BRACKET AIR DEHYDRATOR
60
BRACKET AIR DEHYDRATOR
65
BRACKET AIR DEHYDRATOR
72
BRACKET AIR DEHYDRATOR
75
BRACKET EXTERIOR AIR DRIER AT FRAME
80
BRACKET AIR DRIER TO CROSSMEMBER
85
BRACKET AIR DEHYDRATOR TO SIDE PART, REAR
100
ELBOW FITTING LINE CONNECTION
110
ELBOW FITTING LINE CONNECTION
150
HOSE LINE AIR COMPRESSOR LINE
150
HOSE LINE AIR COMPRESSOR LINE
155
MUFFLER AIR DEHYDRATOR,CONNECTION: "30"
160
COILED TUBE AIR COMPRESSOR LINE
165
COMPRESSED AIR LINE AIR DEHYDRATOR
170
COMPRESSED AIR LINE COMPRESSOR
175
HOSE LINE CONNECTIONS18X26X200MM
180
COMPRESSED AIR LINE HYDRAULIC SYSTEM
250
BUSHING , Replaced By: A6624750850
250
SPACER TUBE MOUNTING PARTS, Replaced By: A6179900340
250
WASHER BEARING BRACKET TO SIDE MEMBER,K 164363
250
BUSHING MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
300
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
300
BUSHING MOUNTING PARTS
300
BUSHING MOUNTING PARTS, Replaced By: A3142420151
350
SHIM MOUNTING PARTS 7MM
350
BASE MOUNTING PARTS 10MM
400
GROMMET LINE THRU FRAME
450
ADHESIVE TAPE60 MM, ORDER BY THE METER
480
CLAMP LINE MOUNTING
490
BRACKET LINE MOUNTING
490
BRACKET MOUNTING PARTS
492
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
495
BRACKET FUEL TANK
500
BRACKET MOUNTING PARTS
550
BRACKET LINE MOUNTING
550
BRACKET MOUNTING PARTS
560
BRACKET MOUNTING PARTS
560
BRACKET MOUNTING PARTS
570
BRACKET AIR DEHYDRATOR
580
BRACKET MOUNTING PARTS
580
BRACKET LINE MOUNTING, INO.1457 IIII I
590
BRACKET MOUNTING PARTS
600
WASHER BRACKET TO LEFT SIDE MEMBER
630
BRACKET MOUNTING PARTS
632
BRACKET AIR DEHYDRATOR
635
BRACKET MOUNTING PARTS
