Поз.
Артикул
Описание

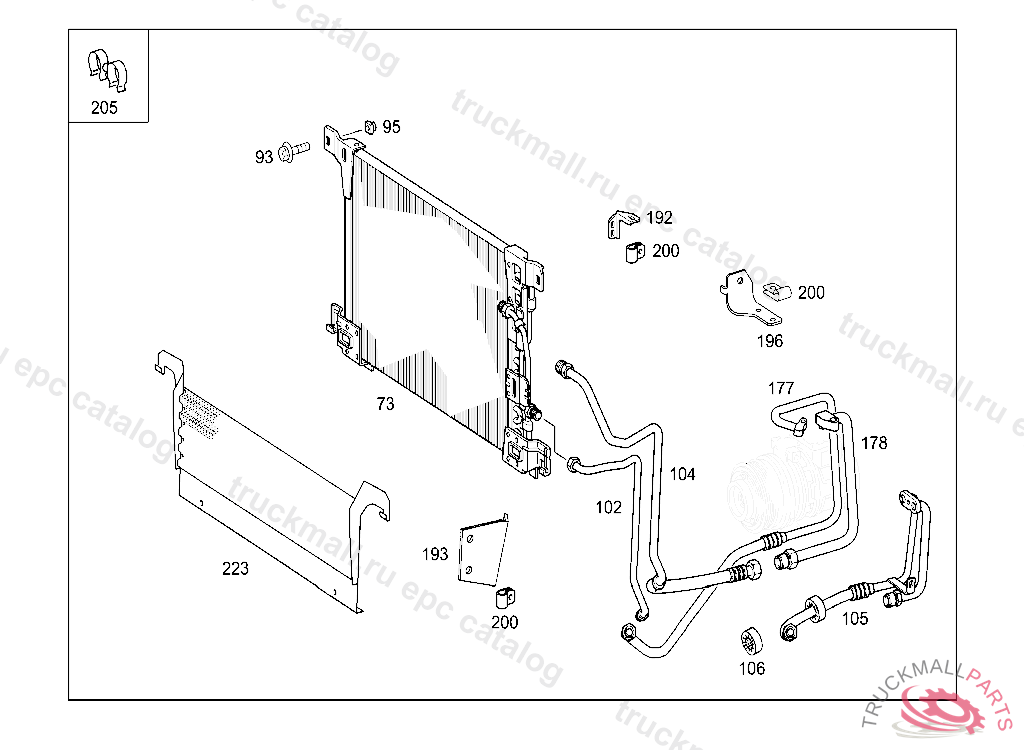

73
CONDENSER AIR CONDITIONER
93
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
93
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
95
SQUARE NUT PROTECTIVE GRILLE ON RADIATOR,BOTTOM
102
PIPE LINE FROM CONDENSER TO COMPRESSOR
104
PIPE LINE FROM CONDENSER TO COMPRESSOR
105
PIPE LINE RADIATOR TO COMPRESSOR
105
PIPE LINE , Replaced By: A9428303315
106
RUBBER RING
177
PIPE LINE COMPRESSOR TO RADIATOR
177
PIPE LINE COMPRESSOR TO RADIATOR
178
PIPE LINE COMPRESSOR TO RADIATOR
192
BRACKET REFRIGERANT PIPE ON RADIATOR
192
BRACKET REFRIGERANT PIPE ON RADIATOR
193
BRACKET REFRIGERANT PIPE ON RADIATOR
193
BRACKET REFRIGERANT PIPE ON RADIATOR
196
BRACKET , Replaced By: A9428321213
196
BRACKET LINE MOUNTING
200
PIPE CLAMP LINE MOUNTING 15-20MM, Replaced By: A0019958002
200
CLAMP LINE MOUNTING 24 MM
200
CLAMP LINE MOUNTING
200
CLAMP DELIVERY AND SUCTION LINES TO STEERING
200
CLAMP FEED LINE TO THERMOSTAT
200
CLAMP HOSE TO FLANGE AND TO VALVE
200
PIPE CLAMP LINE MOUNTING 15-20MM
200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
205
CLAMP LINE MOUNTING
223
PROTECTIVE GRILL CONDENSER
