Поз.
Артикул
Описание

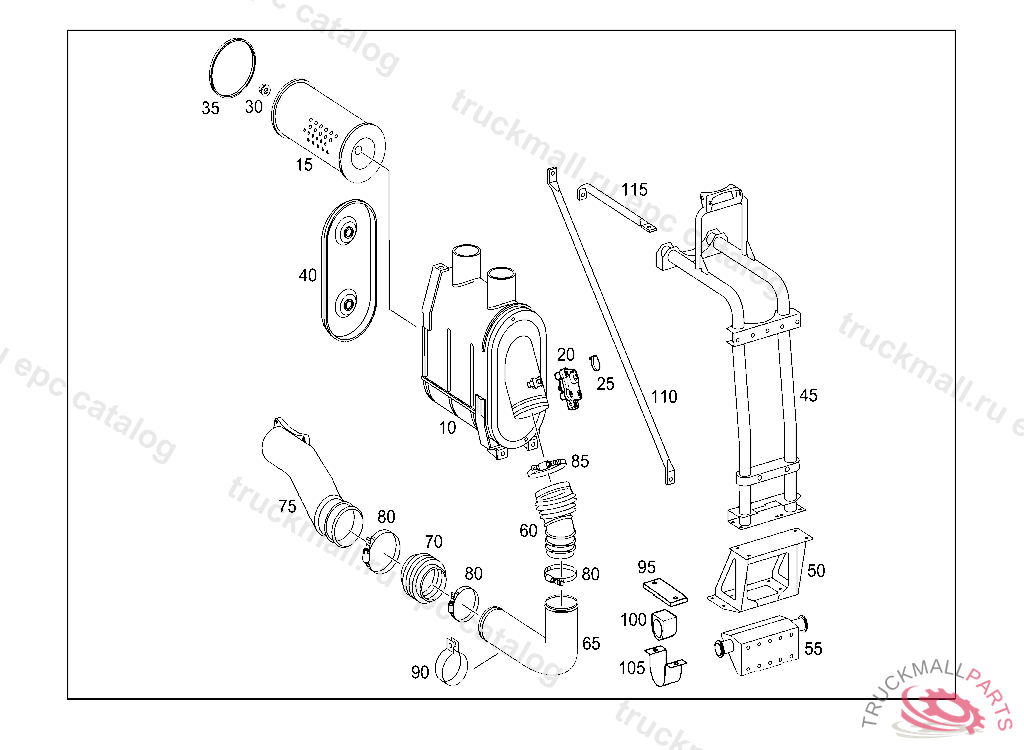

10
AIR CLEANER STEEL VERSION, FOR COMPONENT PARTS SEE SPARE PARTS LIST
15
FILTER ELEMENT
20
PRESSURE SENSOR
20
SENDER UNIT MAINTENANCE INDICATION
25
DUST CAP SENDER UNIT
30
HEXAGON NUT
35
SEAL RING
40
COVER PLASTIC VERSION
45
BRACKET BASE FRAME
50
BRACKET BASE FRAME
55
BRACKET BASE FRAME TO SUPPORT
60
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
65
PIPE ELBOW
70
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
75
PIPE ELBOW FROM AIR CLEANER TO ENGINE
80
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
85
CLAMP HOSE TO AIR CLEANER 180-200X12MM
90
CLAMP EXHAUST PIPE TO MUFFLER
95
PLATE BRACKET TO EXHAUST MUFFLER BRACKET
100
RUBBER MOUNTING BRACKET TO EXHAUST MUFFLER BRACKET, Replaced By: A6254910085
100
RUBBER MOUNTING BRACKET TO EXHAUST MUFFLER BRACKET
105
CLAMP BRACKET TO EXHAUST MUFFLER BRACKET
110
REINFORCEMENT EXHAUST MUFFLER BRACING
115
TUBE STRUT BRACKET TO BRACKET
