Главная
›
Mercedes
›
TRUCK
›
2031 AS - 2051 AS
›
934.082
›
31 FRAME
›
001 TRAILER COUPLING,FRONT IL.1
Mercedes A6628850020 - Опорный кронштейн

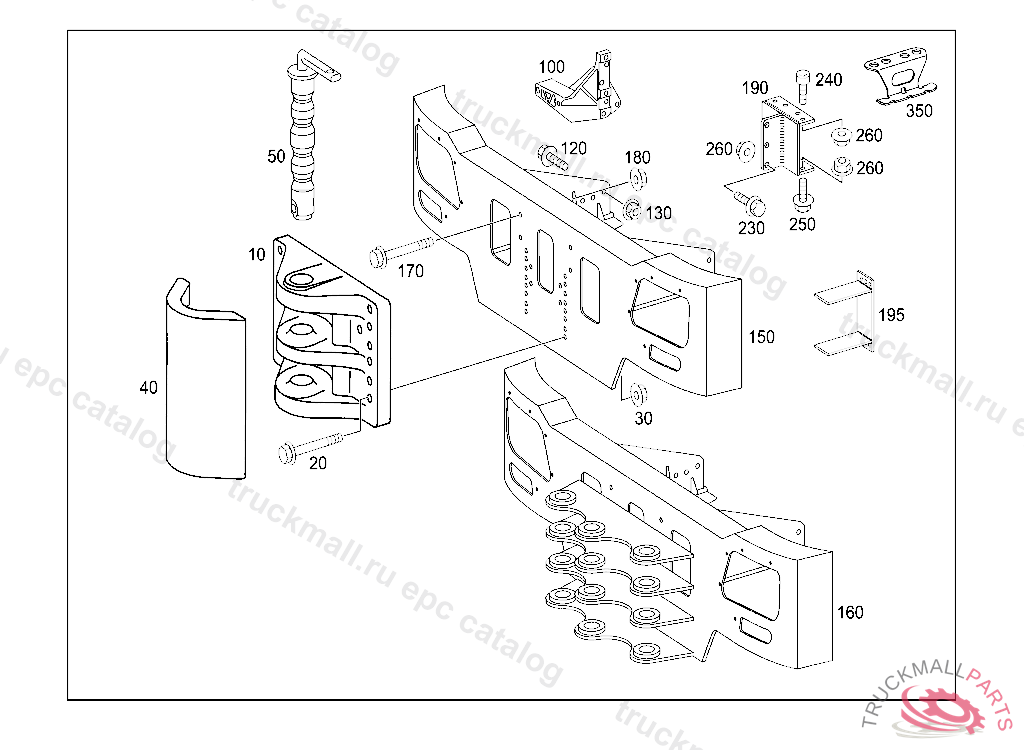

2031 AS - 2051 AS 934.082
31 FRAME - 001 TRAILER COUPLING,FRONT IL.1
Поз.
Артикул
Описание
10
A6253150361
COUPLING MOUTH
20
N910105016006
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
20
N007991016006
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
30
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
40
A6253150183
COVERING COUPLING MOUTH
50
A6253100207
COUPLING PIN COUPLING MOUTH
100
A9436660178
HOLDING DEVICE LEFT
100
A9436660278
HOLDING DEVICE RIGHT
120
N910105020020
SCREW STEERING SUPPORT TO FRAME M 20X1.5X130
130
N913023020001
NUT TRAILER COUPLING TO REAR CROSS MEMBER
150
A6628801570
FRONT BUMPER FACE BAR
160
A6628801670
FRONT BUMPER FACE BAR
170
N910105016024
HEXAGON HEAD BOLT AT BUMPER M16X1.5X180
170
N910105016027
SCREW RUBBER MOUNTING TO BEARING M 16X1.5X200
180
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
190
A6628850120
BEARING BRACKET LEFT
190
A6628850020
BEARING BRACKET RIGHT
195
A6628850220
MOUNTING
230
N910105016012
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
240
N000912016089
SCREW TOP M16X65
250
N910105016015
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M16X1.5X65,V 207570
260
N913023016001
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
350
A9414296369
BRACKET AT SIDE MEMBER
