Поз.
Артикул
Описание

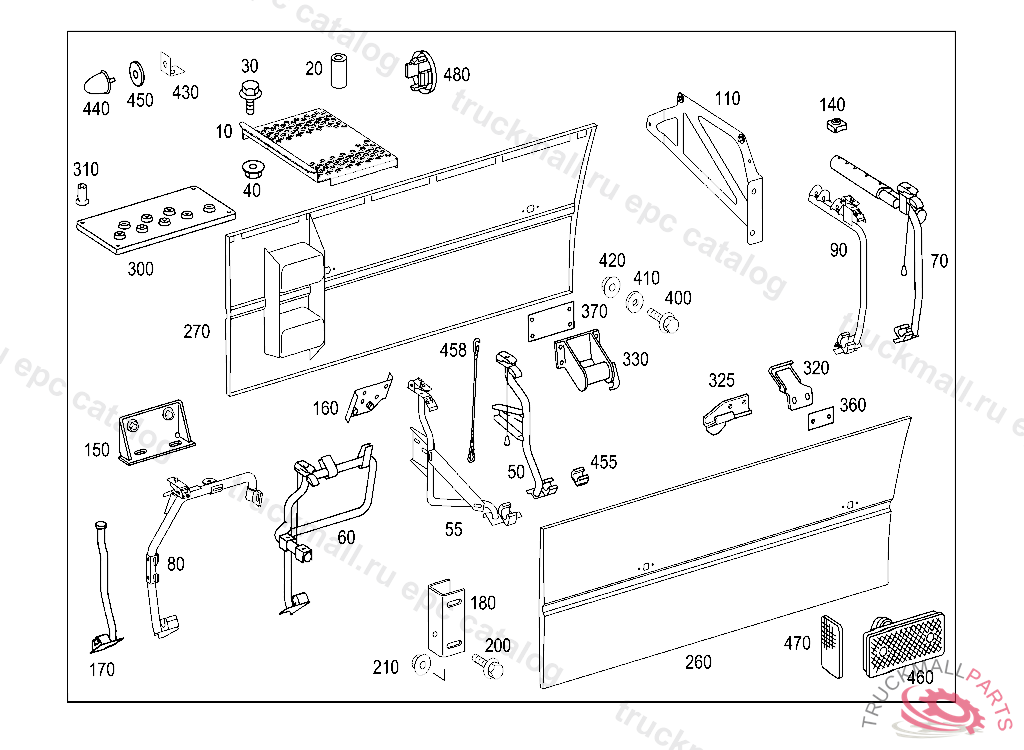

10
RUNNING BOARD
20
BUSHING MOUNTING PARTS, SIMPLE PART-PLEASE HAVE SHOP MADE
20
BUSHING , Replaced By: A3103220030
20
SHACKLE PIN MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
30
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
30
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
30
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
40
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
BRACKET SIDE PANELLING, FRONT LEFT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
50
BRACKET SIDE PANELLING, FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
55
BRACKET SIDE PANELLING, FRONT LEFT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
60
BRACKET SIDE PANELLING, FRONT RIGHT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
60
BRACKET SIDE PANELLING, FRONT RIGHT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
70
BRACKET SIDE PANELLING,REAR RIGHT
70
BRACKET SIDE PANELLING,REAR LEFT
80
BRACKET SIDE PANELLING, FRONT RIGHT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
90
BRACKET SIDE PANELLING,REAR RIGHT,INO.7350I I I II FOR COMPONENT PARTS SEE SPARE PARTS LIST
90
BRACKET SIDE PANELLING,REAR LEFT,INO.7350I I I II FOR COMPONENT PARTS SEE SPARE PARTS LIST
110
SUPPORT STEP BEHIND CAB
140
CLAMPING PIECE MOUNTING PARTS
150
BRACKET SIDE PANELLING, FRONT LEFT
160
BRACKET SIDE PANELLING, FRONT LEFT
170
BRACKET MOUNTING PARTS
180
BRACKET SIDE PANELLING
200
SCREW BRACKET MOUNTING M 10X120
200
SCREW , Replaced By: N910107010004
200
HEXAGON HEAD BOLT BRACKET MOUNTING M10X100
200
SCREW BRACKET MOUNTING M 10X60
200
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
210
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
260
PANELLING LEFT
270
PANELLING RIGHT
300
ROCKER PANEL ROCKER PANEL
310
RIVET REST TO ROCKER PANEL
320
BRACKET TOP
325
BRACKET FRONT RIGHT TOP
330
REST REAR LEFT,BOTTOM
330
REST FRONT LEFT BOTTOM
330
REST FRONT RIGHT BOTTOM
330
REST REAR RIGHT BOTTOM
360
PAD MOUNTING PARTS, SIMPLE PART-PLEASE HAVE SHOP MADE
370
PAD MOUNTING PARTS 10MM, SIMPLE PART-PLEASE HAVE SHOP MADE
400
SCREW BRACKET TO SIDE PART M 8X20
400
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
400
SCREW BRACKET TO SIDE PART M 8X1.25X35
410
WASHER BRACKET TO LEFT SIDE MEMBER
420
NUT ENGINE MOUNTING M8
420
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
430
BRACKET SENSOR CABLE TO FRONT AXLE
430
SUPPORT MOUNTING PARTS, SIMPLE PART-PLEASE HAVE SHOP MADE
440
RUBBER BUFFER COVERING
450
WASHER LEVER TO BRACKET 30X10.5X4 MM
455
RUBBER MOUNTING
458
CABLE RETAINER STEEL
460
SIDE MARKER LAMP. CLEARANCE LIGHT (SIDE MARKER LAMP),AMBER, Replaced By: A0005447211
460
MARKER LAMP (SIDE MARKER LAMP),AMBER
470
REFLECTOR SELF-ADHESIVE,K 057592
480
CAP TO PLUG THE HOLE USED FOR STARTER CABLE IN INSTRUMENT PANEL
999
PANELLING RIGHT
999
PANELLING
999
PANELLING
999
PANELLING
999
PANELLING
