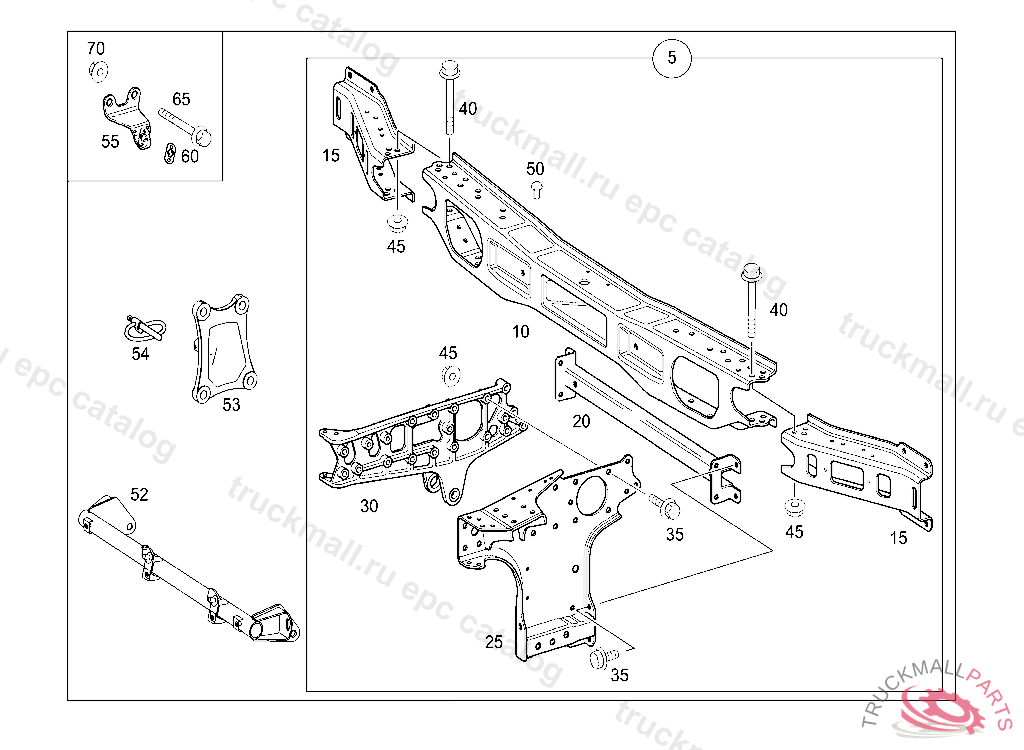

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT
5
FRAME HEAD FRONT
10
CROSS MEMBER FRONT NO.1
15
CROSS MEMBER OUTSIDE LEFT AND RIGHT NO.1
20
CROSS MEMBER UNDERRUN PROTECTION
20
CROSS MEMBER UNDERRUN PROTECTION, Replaced By: A9413101722
25
STIFFENING LEFT
25
STIFFENING RIGHT
25
STIFFENING RIGHT
25
STIFFENING LEFT
30
FRONT SPRING BRACKET. BEARING BRACKET RIGHT
30
FRONT SPRING BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY NO.7390I I I I II I
30
FRONT SPRING BRACKET. BEARING BRACKET LEFT
30
FRONT SPRING BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY NO.7390I I I I II I
35
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
40
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
40
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
40
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
40
HEXAGON HEAD BOLT TRAILER COUPLING TO FRONT CROSS MEMBER M16X1.5X45
45
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
45
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
50
RIVET16X48 MM, TO BE ADAPTED DURING ASSEMBLY
50
RIVET16X58 MM, TO BE ADAPTED DURING ASSEMBLY
50
RIVET12X36 MM, TO BE ADAPTED DURING ASSEMBLY
50
RIVET12X30 MM
50
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
52
CROSS MEMBER FRONT BOTTOM
53
BEARING BRACKET HYDRAULIC CYLINDER, NO.7390I I I I II I
54
LOCK
55
BRACKET ATTACHMENT NOISE ENCAPSULATION
60
FASTENER ,K 105999
65
HEXAGON HEAD BOLT TOWING EYE TO FRAME M16X1.5X80
70
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
