Mercedes A2109900020 - БОЛТ М8

250 D 124.127 200-300 9/89-10/92, 200D-300D 9/89-7/93

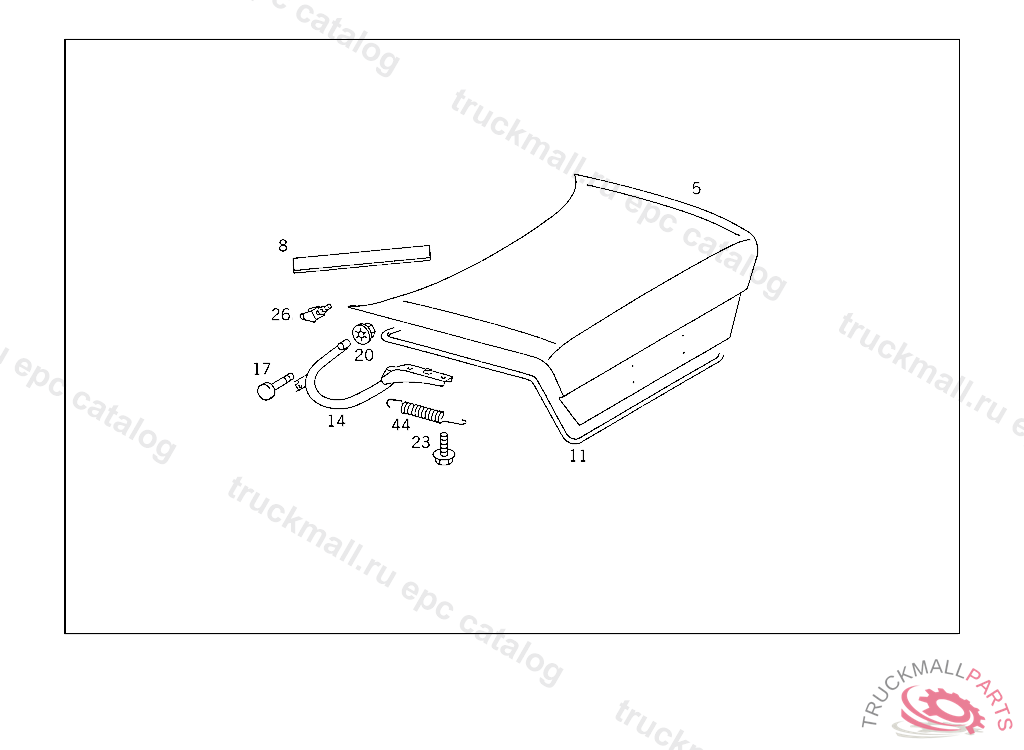

75 REAR LID - 015 REAR LID

Поз.
Артикул
Описание
5
A1247502275
REAR LID STEEL,LESS HOLES FOR TYPE DESIGNATION
8
A1407570097
PAD BETWEEN STIFFENING AND PANELLING 207 MM, TO BE ADAPTED DURING ASSEMBLY
8
A1247570997
PAD BETWEEN STIFFENING AND PANELLING 450 MM
11
A1247500398
SEAL REAR LID
14
A1247500728
HINGE LEVER LEFT
14
A1247500828
HINGE LEVER RIGHT
17
A1249900220
SCREW , Replaced By: A2109900020
17
A2109900020
SCREW HINGE LEVER TO MOUNTING
20
N913013008001
NUT BRACKET MOUNTING
23
N910105006002
HEXAGON HEAD BOLT
26
A2027500126
STOP HINGE LEVER BEARING
44
A1247570629
SPRING REAR LID
