Поз.
Артикул
Описание

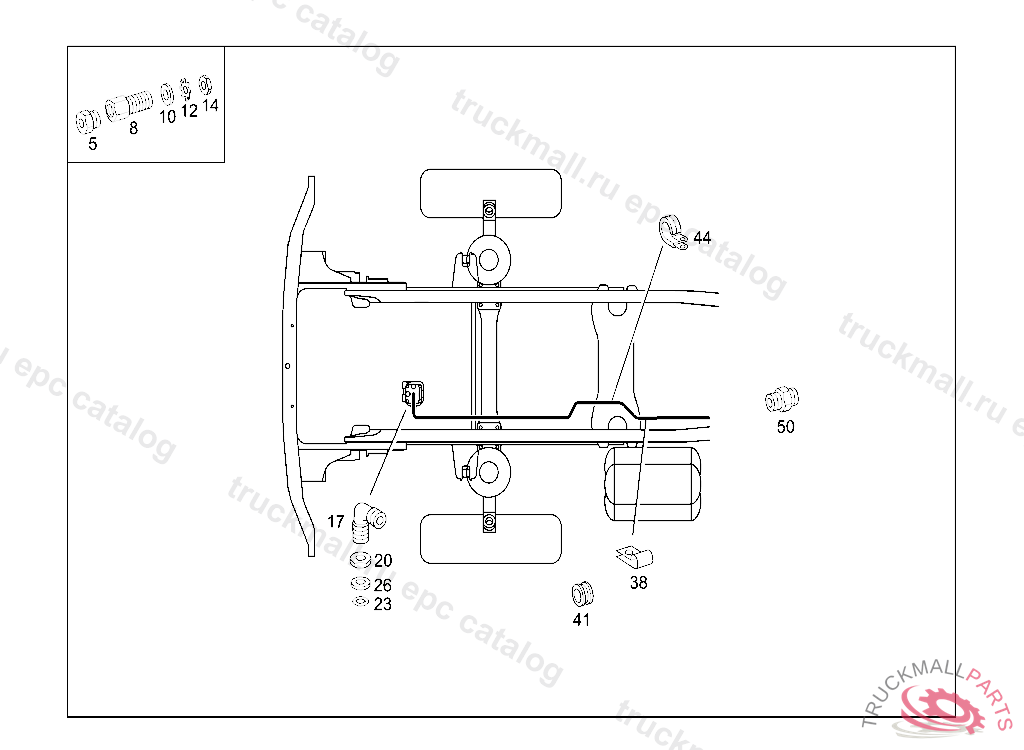

5
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
8
ADAPTER FITTING LINE CONNECTION TO ENGINE
10
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
12
TOOTHED WASHER SENDER UNIT TO BRACKET
14
NUT BRACKET TO SIDE MEMBER
17
ELBOW FITTING , Replaced By: A0039901671
17
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
20
NUT SUCTION LINE TO OIL PUMP
23
SEAL RING LINE CONNECTION
26
THRUST RING SUCTION LINE TO OIL PUMP
38
CLAMP LINE MOUNTING
41
GROMMET LINE MOUNTING
44
CLAMP DELIVERY AND SUCTION LINES TO STEERING
44
CLAMP , Replaced By: A6739950001
50
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
50
FITTING RETURN LINE CONNECTION,225538
