Mercedes A0005516456 - ТРУБКА

1217 - 1229 970.050

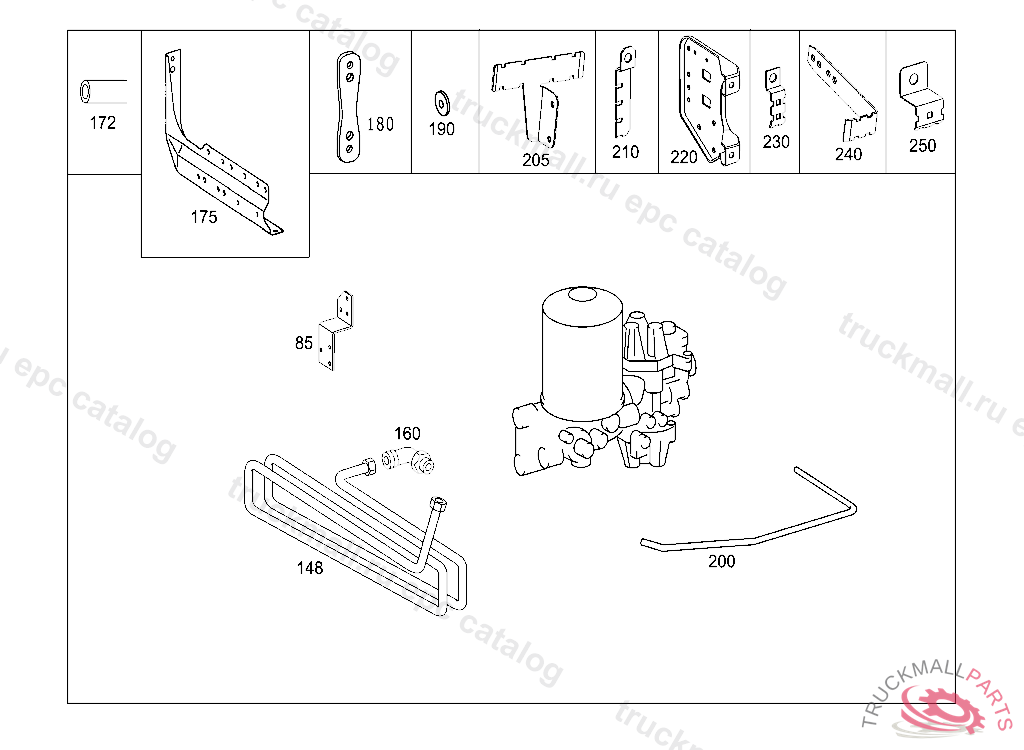

52 SHEET METAL,AIR INTAKE - 001 AIR DEHYDRATOR SHIFTED IL.2

Поз.
Артикул
Описание
85
A6624291369
BRACKET MOUNTING PARTS
148
A6624209126
COMPRESSED AIR LINE AIR DEHYDRATOR
160
A0029904871
ELBOW FITTING LINE CONNECTION
172
A0005516456
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
172
A6624291601
LINE (COMPRESSED AIR LINE), Replaced By: A0005516456
175
A9705230415
SUPPORT UNDERRUN PROTECTION,RIGHT
180
A9705230018
PAD LATERAL UNDERRUN PROTECTION
190
A3609902340
WASHER BRACKET TO LEFT SIDE MEMBER
200
A6624290701
LINE (COMPRESSED AIR LINE)
205
A9574293940
BRACKET MOUNTING PARTS
210
A9574292940
BRACKET MOUNTING PARTS
220
A9424295468
BRACKET AIR DEHYDRATOR
230
A9574290040
BRACKET AIR DEHYDRATOR
240
A9414294068
BRACKET AIR DEHYDRATOR
250
A6625453040
BRACKET AIR DEHYDRATOR
