Поз.
Артикул
Описание
5

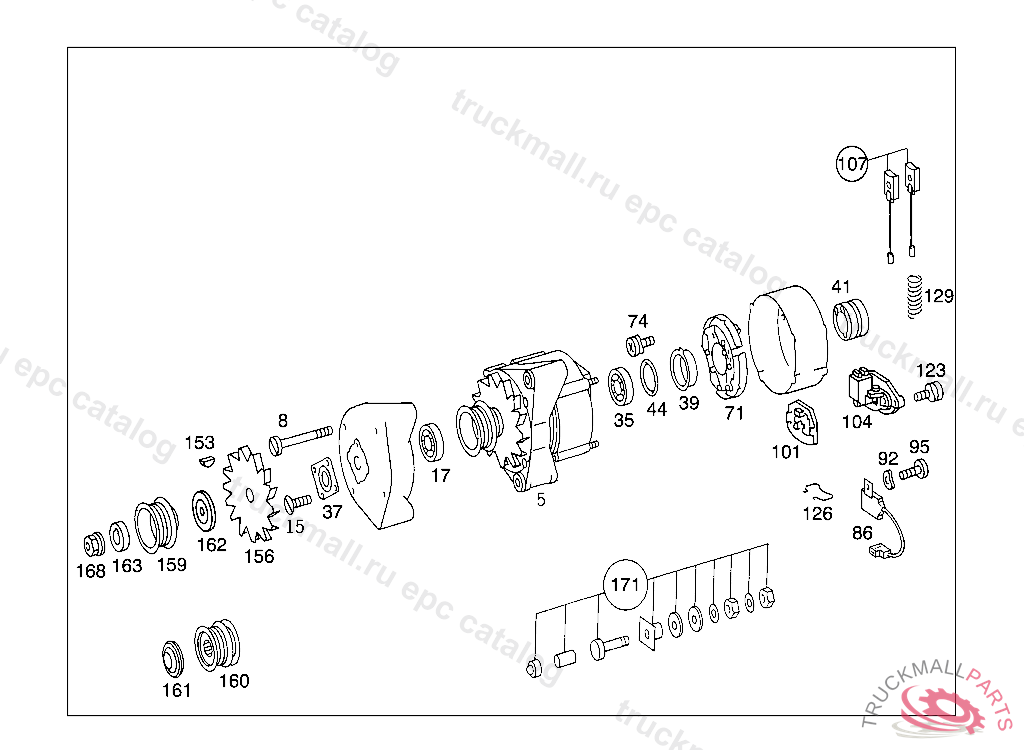

ALTERNATOR70 A, BOSCH, 911 10/50,20/60 000081 911 12/52,22/62 000055 912 10/50,20/60 000164 912 12/52,22/62 000052 962 10/50,20/60 31274 962 12/52,22/62 19579 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
ALTERNATOR USED WITH AIR CONDITIONER, OR WITH POWER STEERING 55 A, VALEO
5
ALTERNATOR USED WITH AIR CONDITIONER, OR WITH POWER STEERING 55 A, BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
BOLT. SCREWTO 008 154 80 02
8
SCREW , Replaced By: A0019901021
8
SCREW DRIVE END BEARING,COMMUTATOR BEARING VALEO, TO 008 154 89 02/ 90 02
15
SCREW COVER PLATE TO DRIVE BEARING M4X20
17
BALL BEARING DRIVE END BEARING BOSCH
17
BALL BEARING DRIVE END BEARING 52 MM, VALEO
17
BALL BEARING , Replaced By: A0079812425
17
BALL BEARING , Replaced By: A0079817025
17
BALL BEARING , Replaced By: A0079818925
35
BALL BEARING SLIP RING SIDE TO 008 154 31 02
35
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
44
SEAL RINGTO 005 154 34 02
71
RECTIFIERTO 007 154 33 02/ 52 02/ 60 02
71
RECTIFIERTO 007 154 58 02
71
RECTIFIERTO 008 154 90 02,008 154 89 02
71
RECTIFIER
71
RECTIFIER
71
RECTIFIER , Replaced By: A0001548216
71
RECTIFIER , Replaced By: A0001548116
74
COMBINATION BOLT
104
REGULATOR AND CUT-OUTTO 007 154 60 02, 008 154 26 02
104
REGULATORVALEO, TO 008 154 89 02/ 90 02
107
CARBON BRUSH SETTO 009 154 07 02
123
SCREW REGULATOR MOUNTING TO 009 154 07 02
123
SCREW , Replaced By: A0009907521
126
SPRING , Replaced By: A0001542493
126
SPRINGTO 007 154 58 02
126
SPRINGVALEO, TO 008 154 89 02/ 90 02
156
FANTO 007 154 60 02
156
FAN
156
FANVALEO, TO 008 154 89 02/ 90 02
159
PULLEY , Replaced By: A6041550015
159
PULLEY , Replaced By: A0011551215
159
PULLEYTO A 009 154 44 02, BOSCH
162
WASHER
162
WASHER , Replaced By: A0001550176
163
WASHERVALEO, TO 008 154 89 02/ 90 02
168
NUT PULLEY TO ALTERNATOR
