Поз.
Артикул
Описание

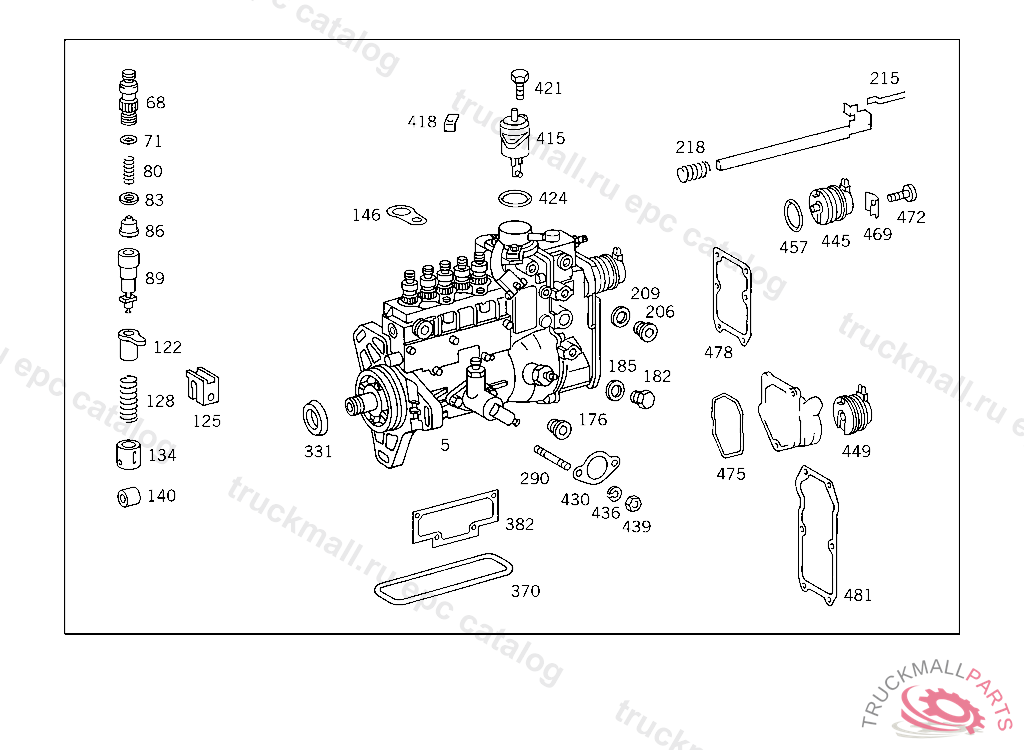

5
INJECTION PUMP MANUAL TRANSMISSION, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
INJECTION PUMP AUTOMATIC TRANSMISSION
68
PRESSURE VALVE HOLDERTO 602 070 45 01
68
PRESSURE VALVE HOLDER
71
SEAL RING101
71
SEAL RING , Replaced By: A0179974148
80
SPRING
83
SEAL RING PRESSURE VALVE HOLDER
86
VALVE
89
PUMP ELEMENT
122
SLEEVE , Replaced By: A0000742332
122
SLEEVE , Replaced By: A0000741832
122
SLEEVE
125
CLAMPING PIECE
128
SPRING
134
TAPPET CYLINDER NO.2-5
134
TAPPET CYLINDER NO.1
134
TAPPET
140
ROLLER15.84 MM
140
ROLLER15.54 MM
140
ROLLER14.40 MM
140
ROLLER14.94 MM
140
ROLLER15.06 MM
140
ROLLER14.88 MM
140
ROLLER14.82 MM
140
ROLLER15.24 MM
140
ROLLER15.42 MM
140
ROLLER15.48 MM
140
ROLLER15.12 MM
140
ROLLER AS REQUIRED 15.60 MM
140
ROLLER15.36 MM
140
ROLLER15.96 MM
140
ROLLER14.52 MM
140
ROLLER14.70 MM
140
ROLLER15.00 MM
140
ROLLER AS REQUIRED 15.30 MM
140
ROLLER15.18 MM
140
ROLLER14.64 MM
140
ROLLER14.76 MM
140
ROLLER15.72 MM
146
SHACKLE
176
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
176
SCREW PLUG , Replaced By: N000908012009
182
SCREW PLUG
185
SEAL RING SWITCH TO CASE COVER
206
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
206
SCREW PLUG , Replaced By: N000908012009
209
SEAL RING LINE CONNECTION
215
SPRING
218
SPRING
290
STUD
290
STUD , Replaced By: A0009909505
331
SEAL RING
370
SEAL RING BOTTOM
382
GASKET LATERAL, ONLY IN CONJUNCTION WITH SHEET-METAL COVER
382
GASKET LATERAL, ONLY IN CONJUNCTION WITH ALUMINIUM COVER
415
VACUUM BOX STOP BOX
415
VACUUM BOX , Replaced By: A0000704653
415
VACUUM BOX , USE PARTS WITH OLD PART NUMBER ONLY WHERE SUCH PARTS ARE ALREDY INSTALLED, Replaced By: A0000704653
418
BRACKET STOP BOX
421
SCREW , Replaced By: A0019902312
421
SCREW , Replaced By: A0019901212
421
SCREW
424
SEAL RING
430
GASKET FUEL PUMP
436
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
439
NUT CYLINDER TO BRACKET TO0002902112
439
NUT BATTERY MOUNTING
445
SOLENOID , Replaced By: A0000744688
445
SOLENOID OPERATING MAGNET ELECTRONIC IDLING CONTROL TO 602 070 05 01,602 070 34 01
449
SOLENOID ANTI-JERK LOCK-ON OPERATING MAGNET
469
BRACKET
472
SCREW (OPERATING MAGNET)
478
GASKET , Replaced By: A0010744380
478
GASKET COVER TO GOVERNOR HOUSING TO 602 070 43 01
