Поз.
Артикул
Описание
5

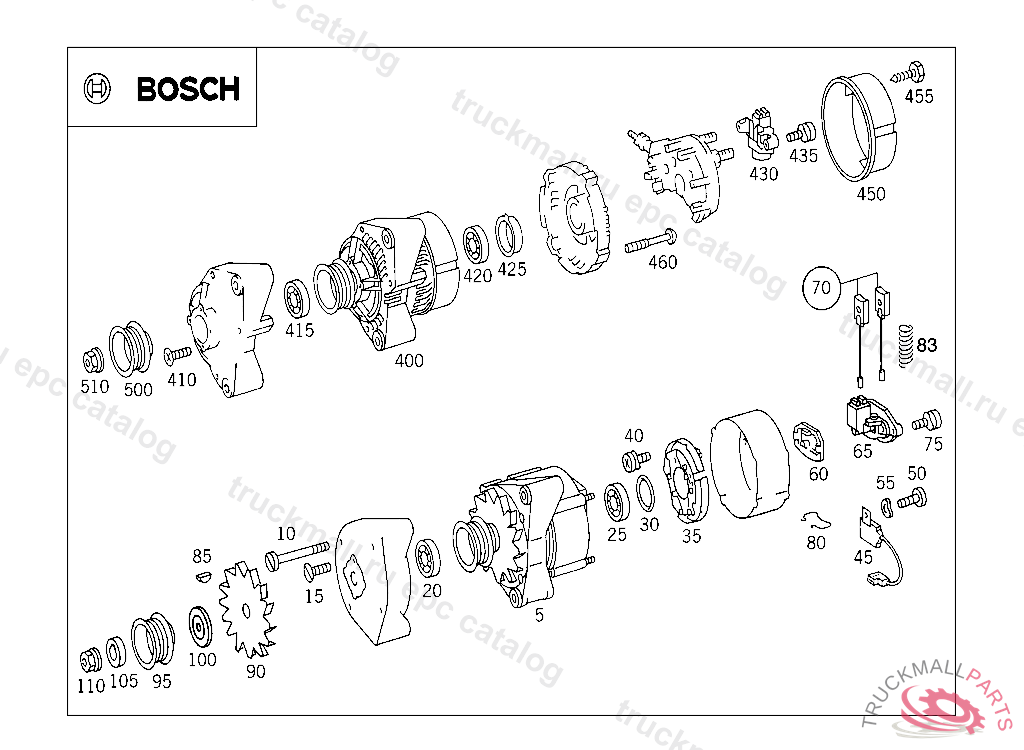

ALTERNATOR70 A, BOSCH, 911 10/50,20/60 000081 911 12/52,22/62 000055 912 10/50,20/60 000164 912 12/52,22/62 000052 962 10/50,20/60 31274 962 12/52,22/62 19579 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
BOLT. SCREWTO 008 154 80 02
10
SCREWTO 003 154 33 02
10
SCREW , Replaced By: A0019901021
20
BALL BEARING , Replaced By: A0079812425
20
BALL BEARING , Replaced By: A0079818925
20
BALL BEARING DRIVE END BEARING BOSCH
25
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
30
SEAL RINGTO 005 154 34 02
35
RECTIFIER
35
RECTIFIER , Replaced By: A0001548116
35
RECTIFIERTO 007 154 58 02
40
COMBINATION BOLT
65
REGULATOR AND CUT-OUTTO 007 154 60 02, 008 154 26 02
65
REGULATOR AND CUT-OUT , Replaced By: A0021547206
70
CARBON BRUSH SETTO 009 154 07 02
75
SCREW , Replaced By: A0009907521
75
SCREW REGULATOR MOUNTING TO 009 154 07 02
80
SPRINGTO 007 154 58 02
90
FAN
95
PULLEYTO A 009 154 44 02, BOSCH
95
PULLEY , Replaced By: A6041550015
95
PULLEY , Replaced By: A0011551215
100
WASHER , Replaced By: A0001550176
100
WASHER
110
NUT PULLEY TO ALTERNATOR
400
ALTERNATOR , Replaced By: A0101544702
410
SCREW COVER PLATE TO DRIVE BEARING M4X20
415
BALL BEARING , Replaced By: A0079818925
415
BALL BEARING DRIVE END BEARING BOSCH
420
BALL BEARING SLIP RING SIDE BOSCH
420
BALL BEARING , Replaced By: A0079817325
425
RING SLIP RING SIDE
430
REGULATOR AND CUT-OUTTO 008 154 52 02
435
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT
450
COVER FOR ALTERNATOR: 70A/90A, BOSCH
450
COVER , Replaced By: A0001543404
455
SCREW COVER BOSCH
460
SCREW HOUSING M5X47, BOSCH
500
PULLEYTO A 009 154 44 02, BOSCH
500
PULLEY , Replaced By: A6041550015
510
NUT PULLEY TO ALTERNATOR
