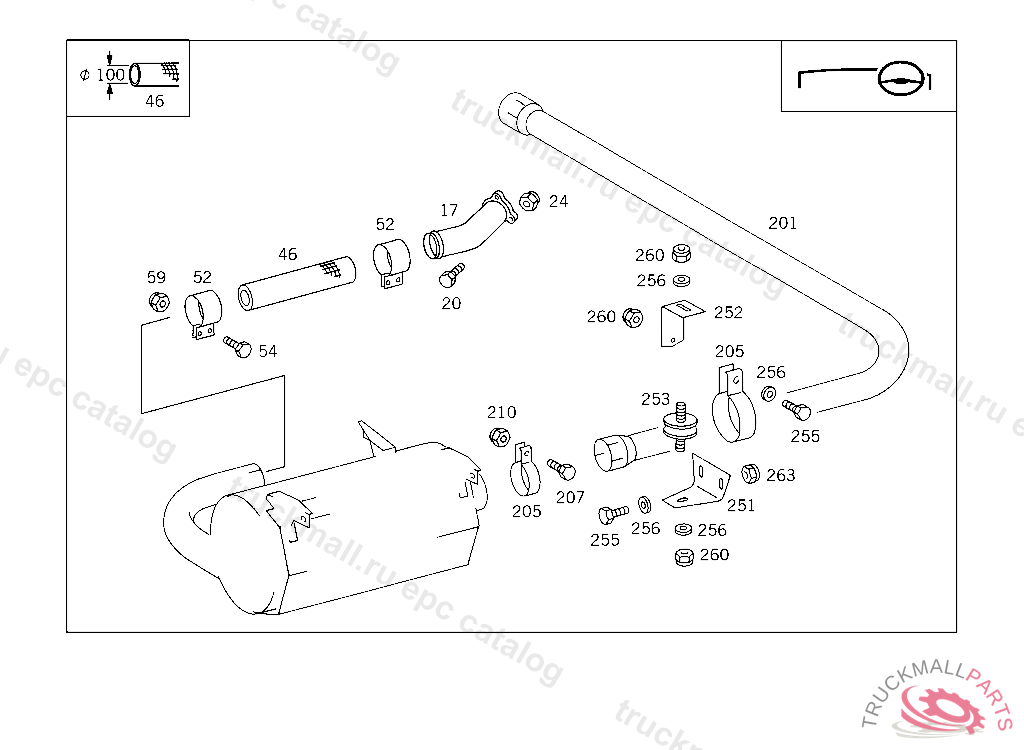

Поз.
Артикул
Описание
17
EXHAUST PIPE
20
SCREW FLANGE TO SHAFT M12X50
24
NUT CONNECTOR TO EXHAUST MANIFOLD
46
FLEXIBLE METAL TUBE , Replaced By: A3574921959
52
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
52
CLAMP , Replaced By: A3574921240
54
SCREW , Replaced By: N304017010047
54
SCREW CONNECTOR TO REAR SHIFTING ROD
59
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
205
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
205
CLAMP , Replaced By: N071555104501
207
SCREW CLAMP TO EXHAUST PIPE
210
NUT BATTERY CABLE
251
BRACKET
252
BRACKET
253
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
255
SCREW PIPE CLAMP
255
SCREW , Replaced By: N304017008021
256
WASHER EXHAUST MUFFLER TO STRAP
260
NUT REAR EXHAUST PIPE TO BRACKET
263
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
EXHAUST MUFFLER , Replaced By: A3574901901, +001A3574905419, +002A3574921140, +001A3574920959
