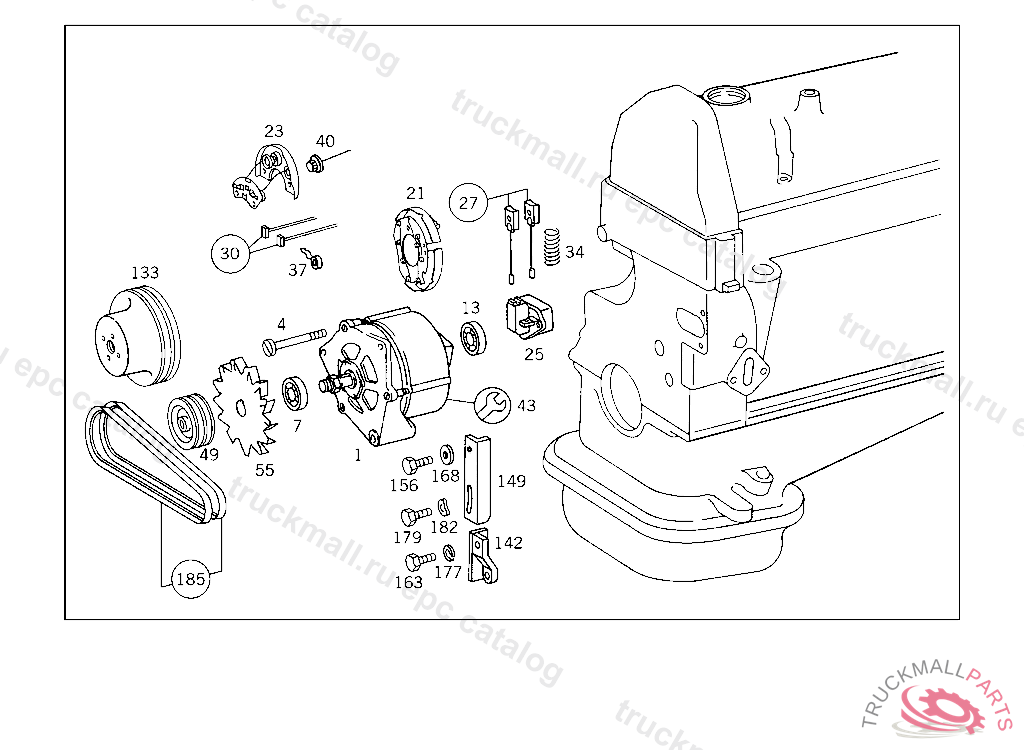

Поз.
Артикул
Описание
1
ALTERNATOR
1
ALTERNATOR
1
ALTERNATOR , Replaced By: A0031546202, +001A0001551115, +001A0001552918
1
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0081543202
1
ALTERNATOR , Replaced By: A0031542602
4
SCREW , Replaced By: A0019901321
4
SCREW , Replaced By: A0009909921
4
SCREW
4
SCREW , TO 008 154 32 02
7
GROOVED BALL BEARING
7
GROOVED BALL BEARING , Replaced By: N000625436303
13
BALL BEARING , Replaced By: A0079814325
13
BALL BEARING , Replaced By: A0079815525
13
BALL BEARING , Replaced By: A0079819025
13
GROOVED BALL BEARING
13
BALL BEARINGTO 008 154 80 02
21
RECTIFIERTO 007 154 33 02/ 52 02/ 60 02
21
RECTIFIERTO 006 154 89 02, 007 154 61 02
21
RECTIFIER
21
RECTIFIER , Replaced By: A0001548216
23
RECTIFIER , Replaced By: A0001545516
23
RECTIFIER , TO 003 154 26 02
25
REGULATOR AND CUT-OUT (ELECTRONIC FIELD REGULATOR) TO 005 154 32 02
25
REGULATOR AND CUT-OUT , Replaced By: A0021545806
27
CARBON BRUSH SET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0001546314
27
CARBON BRUSH SET , TO 008 154 32 02
27
CARBON BRUSH SETTO 005 154 34 02
30
CARBON BRUSH SET
34
SPRING
34
SPRINGTO 004 154 75 02
37
SPRING
40
DIODE POS., TO 003 154 26 02
40
DIODE EXCITER TO 003 154 33 02
40
DIODE , Replaced By: A0015480018
40
DIODE , Replaced By: A0015481018
40
DIODE , Replaced By: A0015481518
40
DIODE
43
REPAIR KIT , Replaced By: A0001500372
43
REPAIR KIT ROTOR TO 005 154 52 02
49
PULLEY
49
PULLEY , Replaced By: A0001551115
55
FAN , Replaced By: A0001555618
55
FAN , Replaced By: A0001556318
55
FANTO 007 154 60 02
133
PULLEY FAN/WATER PUMP
133
PULLEY FAN/WATER PUMP
142
BRACKET
149
BRACKET
156
SCREW ANGLE TO CROSS MEMBER M 10X30
163
SCREW BRACKET TO CONSOLE
163
SCREW , Replaced By: N304017010043
168
WASHER , Replaced By: A1309900240
168
WASHER
177
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
179
SCREW BRACKET TO APPARATUS SUPPORT
179
SCREW , Replaced By: A0069909301
182
SPRING WASHER , Replaced By: N000137008212
182
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
185
V-BELT SET2 PIECES 9,5 X 935,9,5 X 740
999
FAN. PULLEY , Replaced By: A0001552815
999
V-BELT
999
SCREW CLAMPING BOLT TO BRACKET
999
CLAMPING PIECE CLAMPING BOLT TO ALTERNATOR
999
NUT CLAMPING BOLT TO ALTERNATOR
999
SCREW , Replaced By: A1211552023
