Поз.
Артикул
Описание

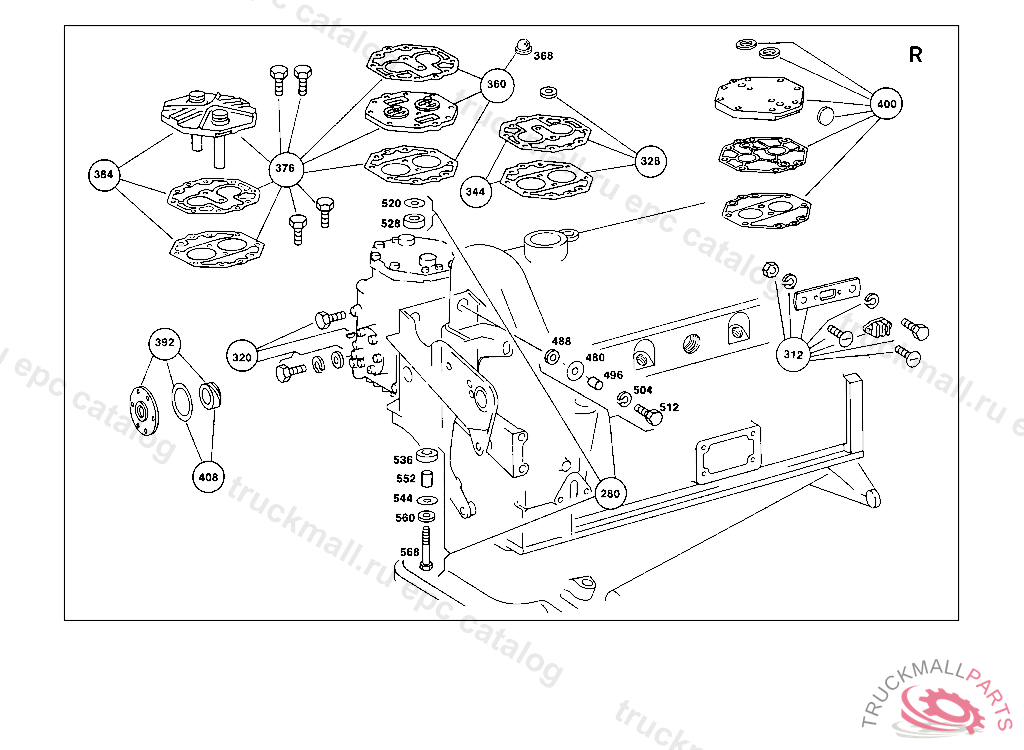

280
REPAIR KIT MOUNTING PARTS
280
REPAIR KIT , Replaced By: A6151300071
312
REPAIR KIT COMPRESSOR
320
REPAIR KIT COUPLING MOUNTING PARTS
328
REPAIR KIT VALVE PLATE, APPLICABLE TOROTALOCK VALVE,SEE SERVTCE INFORMATION 83/24
328
REPAIR KIT (GASKET KIT),VALVE DISC, APPLICALE TO SYMMETRICAL ROTALOCK VALVE,SEE SERVICE INFORMATION 83/24
328
REPAIR KIT , Replaced By: A0005861213
328
REPAIR KIT WITH BALL PIVOT TO 659 350 45 06
344
GASKET (GASKET KIT),VALVE DISC
360
REPAIR KIT , Replaced By: A0005863413
360
REPAIR KIT VALVE DISC
368
STRAINER SUCTION LINE, APPLICALE TO SYMMETRICAL ROTALOCK VALVE,SEE SERVICE INFORMATION 83/24
376
REPAIR KIT VALVE DISC,CYLINDER COVER, APPLICABLE TOROTALOCK VALVE,SEE SERVTCE INFORMATION 83/24
376
REPAIR KIT , Replaced By: A0005863513
376
REPAIR KIT , Replaced By: A0005863513
384
REPAIR KIT CYLINDER COVER, APPLICALE TO SYMMETRICAL ROTALOCK VALVE,SEE SERVICE INFORMATION 83/24
392
REPAIR KIT DRIVE END, WITH REFRIGERANT COMPRESSOR 001 131 17 01 UP TO CODE LETTER L
400
REPAIR KIT CYLINDER COVER
408
REPAIR KIT DRIVE END, WITH REFRIGERANT COMPRESSOR 001 131 17 01 FROM CODE LETTER M
480
WASHER
488
RUBBER RING
488
RUBBER RING , Replaced By: A6151310181
496
SPACER TUBE
504
LOCK WASHER AIR CLEANER TO BRACKET
512
SCREW REFRIGERANT COMPRESSOR MOUNTING PARTS
512
SCREW FLANGE AT OIL PUMP
520
WASHER
528
RUBBER RING
528
RUBBER RING , Replaced By: A6151310081
536
RUBBER RING , Replaced By: A6151310181
536
RUBBER RING
544
WASHER
552
SPACER TUBE
560
WASHER , Replaced By: N000433010510
568
SCREW ALTERNATOR TO SUPPORT
999
WASHER , Replaced By: A3129901940
999
SUSPENSION EYE
999
SCREW , 973 10/50,20/60 004128 974 10/50,20/60 001111
999
SCREW , Replaced By: N304017008030
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N308676012026
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
