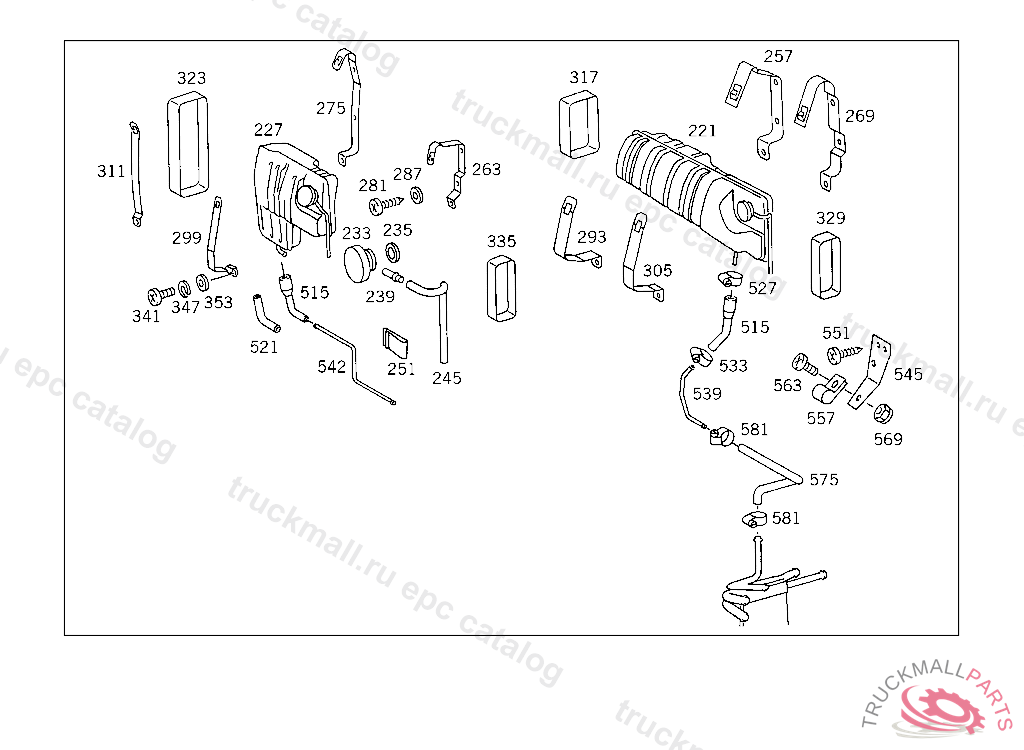

Поз.
Артикул
Описание
221
TANK (EXPANSION TANK)
227
TANK ,5 129372, Replaced By: A6205000349, +001A6205012882, +001N916017020000
227
TANK CAB,FRONT,5 129373
233
RADIATOR CAP
235
GASKET O.D., 37 MM
239
DRAIN PIPE EXPANSION TANK
239
DRAIN PIPE
245
HOSE
245
HOSE OVERFLOW
245
HOSE , Replaced By: A0219977682
251
CLIP CABLE HARNESS TO ROOF RAIL
257
BRACKET EXPANSION TANK
263
BRACKET EXPANSION TANK,LEFT
269
BRACKET EXPANSION TANK
275
BRACKET EXPANSION TANK,RIGHT
281
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
287
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
293
STRAP EXPANSION TANK TO BRACKET
299
STRAP EXPANSION TANK,LEFT
305
STRAP EXPANSION TANK TO BRACKET
311
STRAP EXPANSION TANK,RIGHT
317
SHIM EXPANSION TANK TO BRACKET
323
SHIM EXPANSION TANK,LEFT
329
SHIM EXPANSION TANK TO BRACKET
335
SHIM EXPANSION TANK,RIGHT
341
SCREW , Replaced By: N000000001146
341
SCREW CLAMP MOUNTING M 6X16
347
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
353
WASHER , Replaced By: N009021006208
353
WASHER COMPRESSED AIR LINE TO BRACKET
515
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
515
HOSE , Replaced By: A6205012882
521
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
527
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
527
CLAMP , Replaced By: N000000000667
533
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
533
CLAMP , Replaced By: N916017011001
539
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
542
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
545
BRACKET DE-AERATION LINE TO CAB
551
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
557
CLAMP ,K 147121, Replaced By: N000000000319
557
CLAMP , Replaced By: A3604300143
557
CLAMP , Replaced By: N916016008200
563
SCREW , Replaced By: N000000001146
563
SCREW CLAMP MOUNTING M 6X16
569
NUT PUMP TO BRACKET
569
NUT , Replaced By: N913004006001
575
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
581
CLAMP , Replaced By: N916017011001
581
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
CLAMP FEED LINE TO THERMOSTAT
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BREATHER PIPE , Replaced By: A6205010725
999
HOSE HEATING PIPE TO RADIATOR
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
SPRING WASHER , Replaced By: N000137008204
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: A0099900101
999
SCREW SUPPORT TO FENDER
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
GASKET HEATING PIPE TO ENGINE
