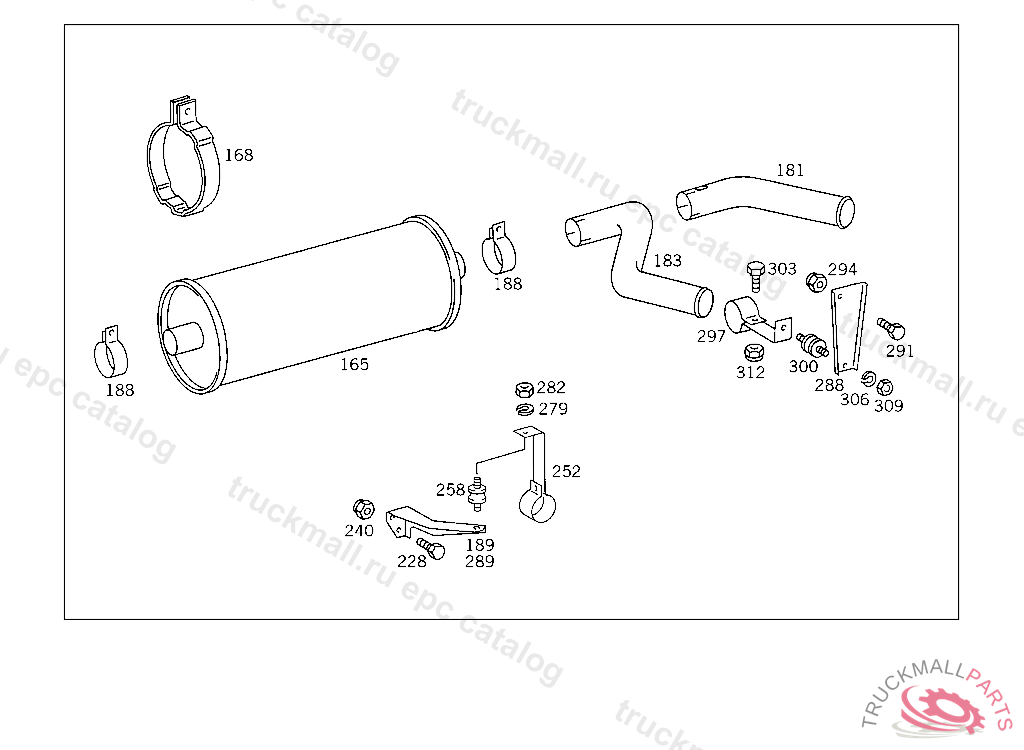

Поз.
Артикул
Описание
165
EXHAUST MUFFLER
168
CLAMP EXHAUST MUFFLER TO SUPPORT
181
REAR EXHAUST PIPE
183
END PIECE REAR EXHAUST PIPE
188
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
189
SUPPORT TAIL PIPE TO SIDE MEMBER
189
SUPPORT EXHAUST PIPE TO SIDE MEMBER
228
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
228
SCREW , Replaced By: N304017008034
228
SCREW BRACKET TO CROSS CONNECTION STRUT
228
SCREW BRACKET TO SIDE MEMBER
228
SUPPORT REAR EXHAUST MUFFLER
228
SCREW SUPPORT TO CROSS MEMBER M 10X28
228
SCREW , Replaced By: N304017008027
228
SCREW , Replaced By: N304017010002
240
NUT SUPPORT TO SIDE MEMBER
240
NUT STRAP TO BRACKET
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
240
NUT , Replaced By: N910113010000
240
NUT , Replaced By: N913004008001
252
BRACKET , Replaced By: A3834927941
252
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
252
BRACKET , Replaced By: A3834927941
252
BRACKET , Replaced By: A3834927941
258
RUBBER BUFFER BRACKET TO SUPPORT
279
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
282
NUT BRACKET TO SUPPORT AND TO END PIECE
288
SUPPORT TAIL PIPE
289
SUPPORT EXHAUST PIPE
291
SCREW , Replaced By: N304017008034
291
SCREW BRACKET TO CROSS CONNECTION STRUT
294
NUT , Replaced By: N913004008001
294
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
297
BRACKET , Replaced By: A3834927941
297
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
297
BRACKET , Replaced By: A3814923841, +001N071555075502
297
BRACKET , Replaced By: A3814923841, +001N071555075502
297
BRACKET , Replaced By: A3834927941
297
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
297
BRACKET , Replaced By: A3834927941
300
RUBBER BUFFER BRACKET TO SUPPORT
303
SCREW , Replaced By: N304017010002
303
SCREW BRACKET TO SIDE MEMBER
306
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
309
NUT BRACKET TO SUPPORT AND TO END PIECE
312
NUT STRAP TO BRACKET
312
NUT , Replaced By: N910113010000
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
SUPPORT TAIL PIPE
999
BRACKET , Replaced By: A3834927941
999
SUPPORT REAR EXHAUST MUFFLER
999
CLAMP LINE MOUNTING
