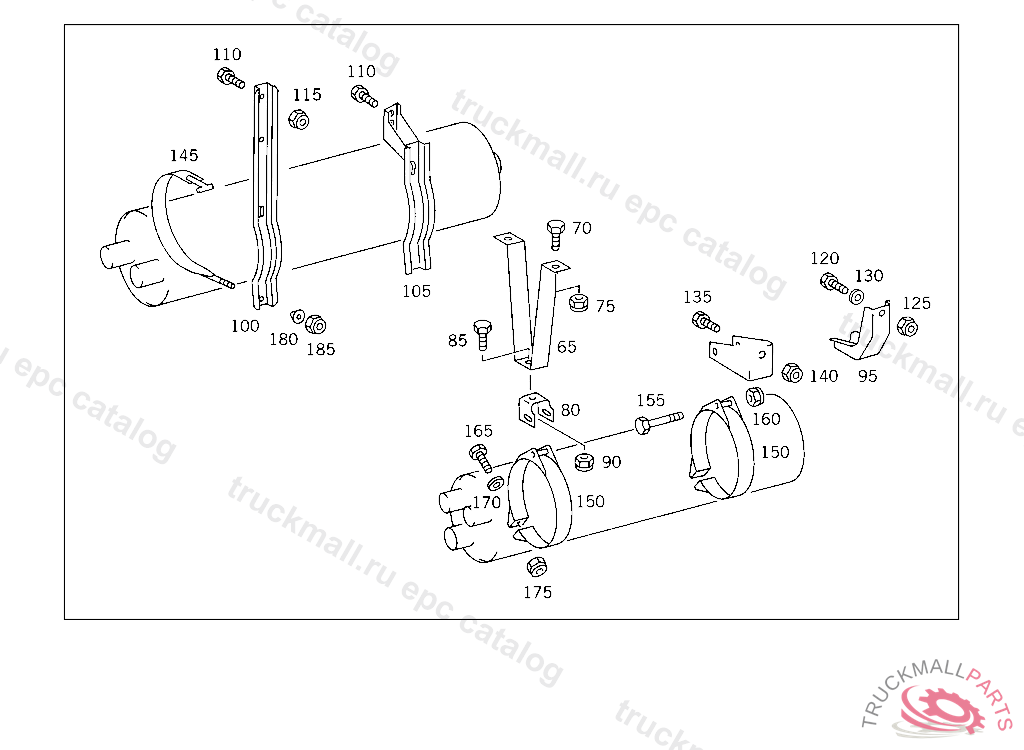

Поз.
Артикул
Описание
65
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
65
BRACKET , Replaced By: A6524911141
70
SCREW , Replaced By: N304017008027
70
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
70
SCREW END PIECE TO EXHAUST PIPE M 10X25
70
SCREW CONSOLE TO SIDE MEMBER
75
NUT SUPPORT TO SIDE MEMBER
75
NUT , Replaced By: N913004008001
75
NUT STRAP TO BRACKET
75
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
75
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
75
NUT , Replaced By: N910113010000
80
BRACKET AT SUPPORT
85
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
90
NUT , Replaced By: N910113010000
90
NUT STRAP TO BRACKET
95
CONSOLE PARTICLE FILTER SUSPENSION, TO BE ADAPTED DURING ASSEMBLY
100
BRACKET FRONT EXHAUST MUFFLER
105
BRACKET FRONT EXHAUST MUFFLER
110
SCREW , Replaced By: N308676014020
110
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
115
NUT , Replaced By: N910113014001
115
NUT BRACKET TO SIDE MEMBER
120
SCREW REAR EXHAUST PIPE TO MUFFLER
125
NUT , Replaced By: N910113010000
125
NUT STRAP TO BRACKET
130
WASHER , Replaced By: N000125010532
130
WASHER RADIATOR TO RUBBER MOUNTING
135
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
145
STRAP EXHAUST MUFFLER TO BRACKET
150
STRAP EXHAUST MUFFLER TO BRACKET
155
SCREW STRAP TO BRACKET
160
NUT , Replaced By: N910113010000
160
NUT STRAP TO BRACKET
165
SCREW EXHAUST MUFFLER TO STRAP
170
WASHER EXHAUST MUFFLER TO STRAP
170
WASHER , Replaced By: N000125008443
175
NUT , Replaced By: N913004008001
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
175
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
180
SPHERICAL WASHER STRAP TO BRACKET
185
NUT , Replaced By: N910113010000
185
NUT STRAP TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SCREW , Replaced By: N304017010002
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
BRACKET TAIL PIPE
999
END PIECE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE (TAIL PIPE)
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET ,5 768419, Replaced By: A3464910441
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE
999
END PIECE
999
END PIECE ,5 765949
999
END PIECE (TAIL PIPE)
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
BRACKET
999
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
END PIECE (TAIL PIPE)
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE TAIL PIPE,FRONT,K 027551
999
END PIECE RIGHT
999
END PIECE (TAIL PIPE)
999
END PIECE LEFT
999
EXHAUST PIPE FRONT,REAR PART,K 035522
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE (TAIL PIPE)
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET TAIL PIPE
999
END PIECE
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE , Replaced By: A6524926914
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
BRACKET FRONT EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
BRACKET STRUT
999
END PIECE REAR EXHAUST PIPE,5 298310
999
END PIECE
999
END PIECE ,5 193595
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE
999
PROTECTIVE PLATE FUEL TANK
