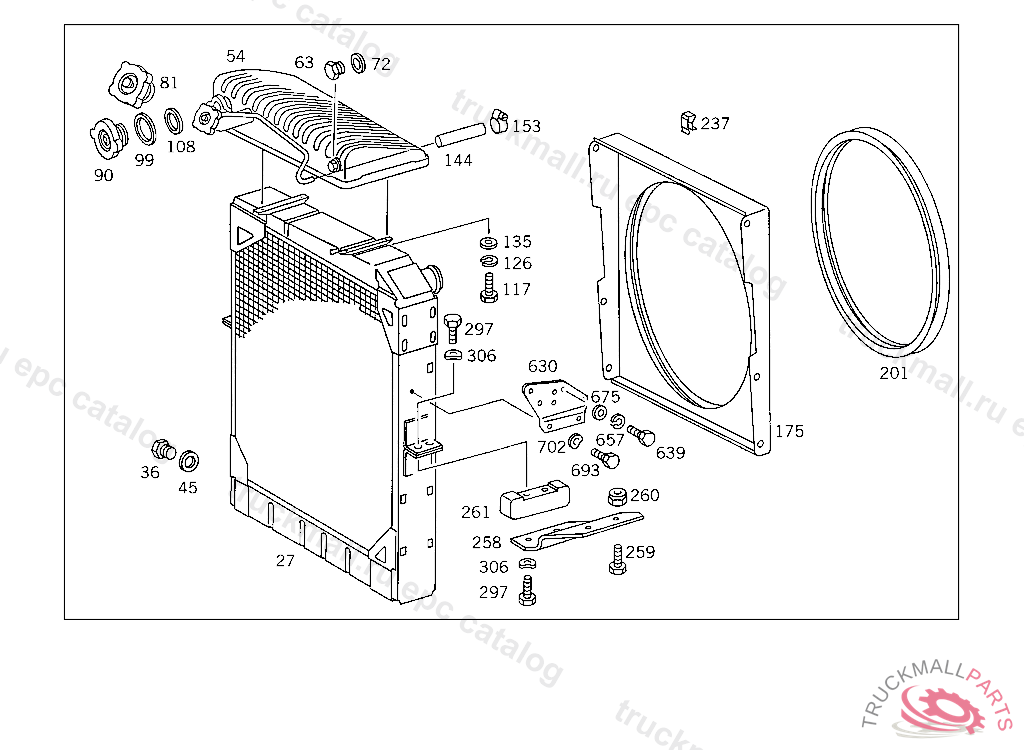

Поз.
Артикул
Описание
27
RADIATOR WATER BEHR
27
RADIATOR WATER
27
RADIATOR
27
RADIATOR WATER BEHR
27
RADIATOR , Replaced By: A0015015501
27
RADIATOR WATER BEHR
27
RADIATOR WATER BEHR
27
RADIATOR"BEHR", NOT USED
36
SCREW PLUG WATER DRAIN
36
SCREW PLUG , Replaced By: N007604014101
45
SEAL RING FUEL LINE TO FEED PUMP
54
TANK ON RADIATOR
54
TANK ON RADIATOR
54
TANK COOLING WATER EXPANSION
54
TANK EXPANSION TANK
63
SCREW PLUG , Replaced By: N007604014101
63
SCREW PLUG WATER DRAIN
72
SEAL RING FUEL LINE TO FEED PUMP
81
RADIATOR CAP FILLER NECK
81
RADIATOR CAP FILLER NECK
90
RADIATOR CAP CENTRAL
90
RADIATOR CAP CENTRAL
99
GASKET O.D., 52 MM
99
GASKET O.D., 52 MM
108
GASKET O.D., 37 MM
108
GASKET O.D., 37 MM
117
SCREW , Replaced By: N304017008016
117
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
126
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
135
WASHER , Replaced By: N000125008443
135
WASHER EXHAUST MUFFLER TO STRAP
144
HOSE OVERFLOW, EXPANSION TANK
153
CLAMP , Replaced By: N916017011001
153
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
153
CLAMP , Replaced By: N916017011000
175
FAN SHROUD RADIATOR
201
BOOT FAN SHROUD TO FAN RING
237
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
258
SUPPORT RADIATOR,LEFT,K 096749
258
SUPPORT RADIATOR,LEFT,K 096749
258
SUPPORT RADIATOR,LEFT,K 096750
259
SCREW CONSOLE TO SIDE MEMBER
260
NUT SUPPORT TO SIDE MEMBER
261
RUBBER MOUNTING RADIATOR
297
SCREW , Replaced By: N304017010028
297
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
297
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
297
SCREW END PIECE TO EXHAUST PIPE M 10X25
306
SPRING WASHER STEERING COLUMN BRACKET TO CAB
306
SPRING WASHER STEERING COLUMN BRACKET TO CAB
630
BRACKET , NOT USED
639
SCREW CLAMP TO BRACKET AND TO PIPE
657
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
675
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
693
SCREW PUMP TO BRACKET
693
SCREW , Replaced By: N304017006016
702
SPRING WASHER LICENSE PLATE TO BRACKET
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
NUT TURNBUCKLE
999
RADIATOR , Replaced By: A3815010801
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
BRACKET RADIATOR MOUNTING,4 428844
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
CONNECTOR AT WATER PUMP
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
FLANGE ENGINE BREATHING
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
