Поз.
Артикул
Описание

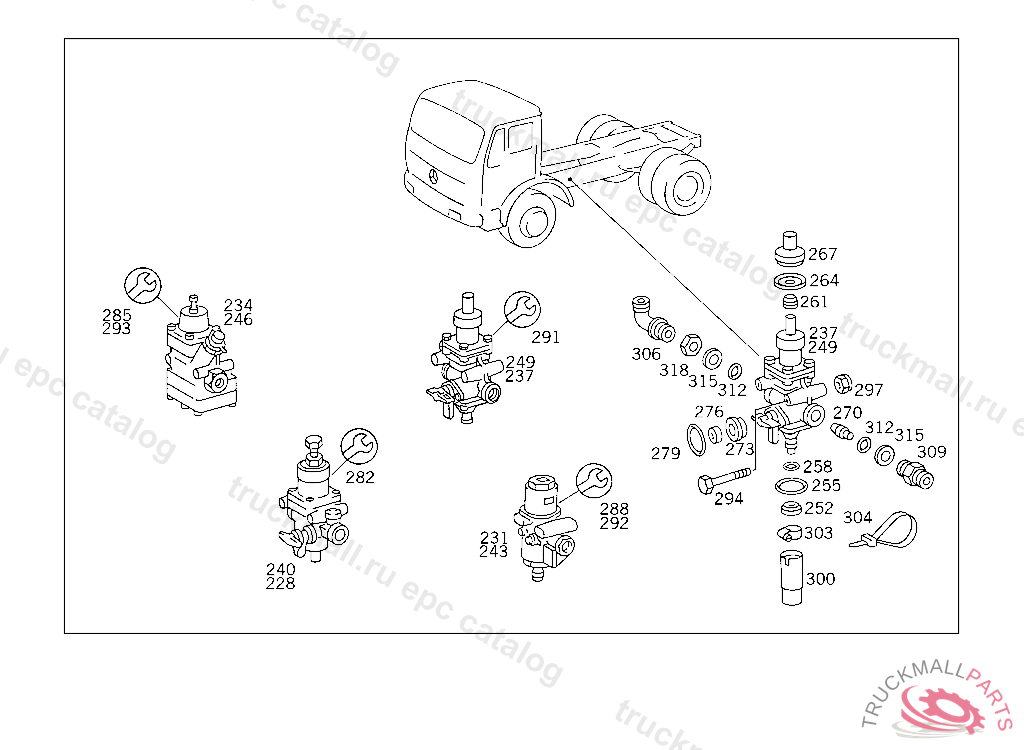

228
PRESSURE REGULATOR , Replaced By: A0024315006
231
PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
231
PRESSURE REGULATOR , Replaced By: A0024318406
234
PRESSURE REGULATOR , Replaced By: A0024314406
234
PRESSURE REGULATOR , Replaced By: A0024313606
237
PRESSURE REGULATORBOSCH
237
PRESSURE REGULATOR , Replaced By: A0024314406
252
VALVE DISCTO 001 431 90 06,GRAU,5 148812
255
SEAL RINGTO 001 431 90 06,GRAU,5 148812
258
SEAL RINGTO 001 431 90 06,GRAU,5 148812
261
VALVE DISCTO 001 431 90 06,GRAU,5 148812
264
DIAPHRAGMTO 001 431 90 06,GRAU,5 148812
267
PROTECTIVE CAPTO 001 431 90 06,GRAU,5 148812
270
VALVETO 001 431 90 06,GRAU,5 148812
273
STRAINERTO 001 431 90 06,GRAU,5 148812
276
VALVE SEATTO 001 431 90 06,GRAU,5 148812
279
SEAL RINGTO 001 431 90 06,GRAU,5 148812
282
REPAIR KIT VALVE KIT WABCO,5 148812
282
REPAIR KIT VALVE KIT WABCO,5 148812
282
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
282
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
282
REPAIR KIT , Replaced By: A0004301107
285
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
285
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
285
REPAIR KIT , Replaced By: A0004301407
288
REPAIR KITTO 001 431 12 06, KNORR 3200
288
REPAIR KITTO 001 431 12 06, KNORR 3200
292
REPAIR KIT PRESSURE REGULATOR WABCO
292
REPAIR KIT PRESSURE REGULATOR WABCO
293
REPAIR KIT SEAL RING BOSCH,209
293
REPAIR KIT SEAL RING BOSCH,209
293
REPAIR KIT SEAL RING BOSCH,209
293
REPAIR KIT SEAL RING BOSCH,209
293
REPAIR KIT DIAPHRAGM PART BOSCH,209
293
REPAIR KIT DIAPHRAGM PART BOSCH,209
293
REPAIR KIT DIAPHRAGM PART BOSCH,209
293
REPAIR KIT DIAPHRAGM PART BOSCH,209
294
SCREW REAR AXLE REGULATING SOLENOID VALVE
297
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
297
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
297
NUT , Replaced By: N913004008001
300
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
300
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
303
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
303
CLAMP , Replaced By: N000000000667
303
HOSE CLAMP LINE MOUNTING
303
CLAMP , Replaced By: A0059970190
304
LOOM TIE LINE MOUNTING 280 MM
306
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
306
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
309
FITTING AIR RESERVOIR,CONNECTION: "13"
312
O-RING CHECK VALVE TO AIR RESERVOIR
315
THRUST RING CHECK VALVE TO AIR RESERVOIR
315
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
318
NUT CHECK VALVE TO AIR RESERVOIR
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 84 06, KNORR 90310
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
CONNECTOR REPAIR SIZE
999
PLUG
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
PRESSURE REGULATORKNORR 90310
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
999
SEAL RING , Replaced By: A0009870746
999
ADHESIVE FOIL GUIDE SIGN
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
WASHER STRAP TO SUPPORT
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING , Replaced By: N007603012121
