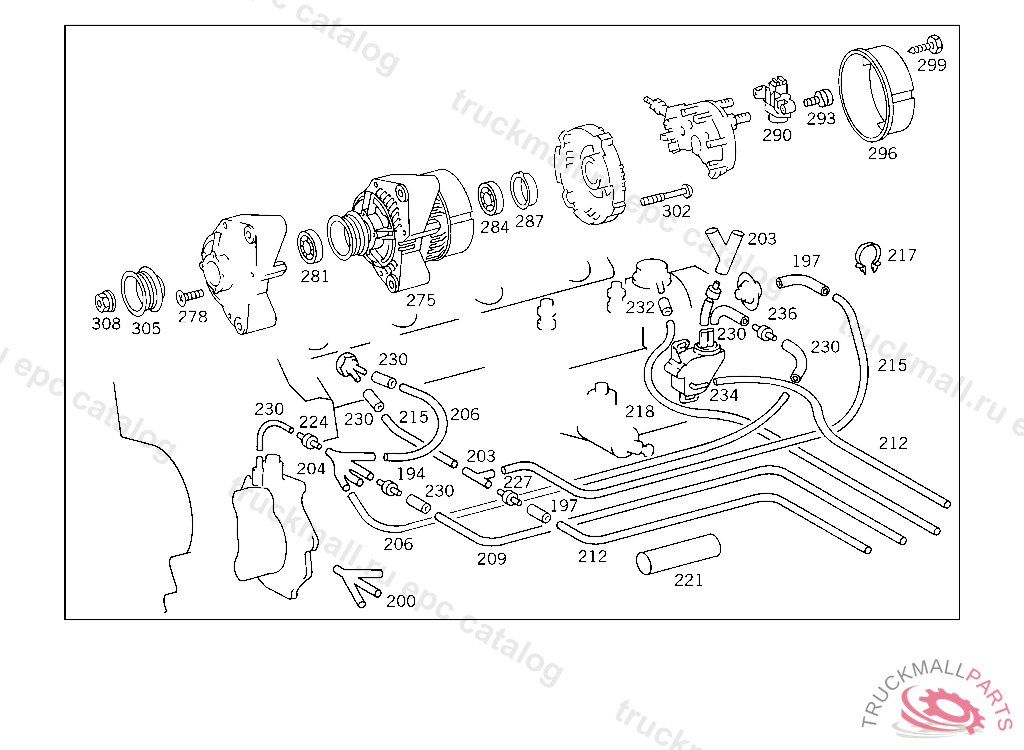

Поз.
Артикул
Описание
194
INDUCTOR VACUUM PUMP
197
HOSE
200
BRANCH-OFF FITTING BETWEEN VACUUM LINE AND CONNECTION FOR ELEC.-PNEUM.DIRECTIONAL CONTROL VALVE
203
BRANCH-OFF FITTING INCREASE IN TRANSMISSION SHIFT POINT & 2 SELECTION PROGRAMS, F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806
204
BRANCH-OFF FITTING THERMOVALVE
206
PIPE LINE FROM CHECK VALVE DISTRIBUTOR TO SUPPLY TANK 500 MM, ORDER BY THE METER 114.010 FROM CHASSIS 031062,114.015,017 FROM CHASSIS 033609,114.021 FROM CHASSIS 001552,114.022 FROM CHASSIS 000843,114.023 FR OM CHASSIS 000001 115.010 FROM CHASSIS 034113,115.015 FROM CHASSIS 032215 114.010,021,022 UNTIL PRODUCTION STOP, 114.011 UP TO CHASSIS 108425, 114.015,017 UP TO CHASSIS 245853, 114.023 UP TO CHASSIS 100866 AND FOOTN.63
209
LINE. HOSE FROM VACUUM CONTROL VALVE TO PASSENGER COMPARTMENT 4 MM, ORDER BY THE METER
209
HOSE , Replaced By: A0019978152
212
LINE. HOSE FROM VACUUM CONTROL VALVE TO PASSENGER COMPARTMENT 4 MM, ORDER BY THE METER
215
PIPE LINE390 MM, ORDER BY THE METER
217
CLAMP
217
CLAMP , Replaced By: A0009955244
218
HOSE , ORDER BY THE METER
221
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
221
INSULATING HOSE ELECTRONICS AT SUPPORT, ORDER BY THE METER
224
AIR FILTER
224
DASHPOT. STRAINER VACUUM LINE
227
STRAINER
230
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
232
HOSE TO ELEMENT AT FRONT SEAT
234
VALVE VACUUM CONTROL VALVE
234
VALVE , Replaced By: A1403001133, +001A1162760929
236
THROTTLE
275
ALTERNATOR , Replaced By: A0101544702
278
SCREW COVER PLATE TO DRIVE BEARING M4X20
281
BALL BEARING DRIVE END BEARING BOSCH
281
BALL BEARING , Replaced By: A0079818925
284
BALL BEARING , Replaced By: A0079817325
284
BALL BEARING SLIP RING SIDE BOSCH
287
RING SLIP RING SIDE
290
REGULATOR AND CUT-OUTTO 008 154 52 02
293
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT
296
COVER , Replaced By: A0001543404
296
COVER FOR ALTERNATOR: 70A/90A, BOSCH
299
SCREW COVER BOSCH
302
SCREW HOUSING M5X47, BOSCH
305
PULLEY , Replaced By: A6041550015
305
PULLEYTO A 009 154 44 02, BOSCH
308
NUT PULLEY TO ALTERNATOR
999
CONDENSERTO 004 154 75 02
999
V-BELT12.5X1030
999
V-BELT21,36X2100
999
BRACKET
999
SPRING
999
BOOT
999
GROOVED BALL BEARING
999
WASHER ALTERNATOR SUPPORT TO CYLINDER CRANKCASE
999
OIL PAN
999
GUIDE TUBE
999
OIL DIPSTICK
999
SUPPORT
999
OIL PUMP
999
SUCTION BASKET
999
ENGINE SUPPORT LEFT
999
ENGINE SUPPORT RIGHT
999
COVER RING
999
BASIC ENGINE , ORDER LONG BLOCK IN COMBINATION WITH APPLICATION DATA AND ASSIGNMENT TO ENGINE
999
COVER TO LOCK TACHOMETER DRIVE
999
PISTON PRESSURE RELIEF VALVE TO 602 180 29 01
999
SCREW PLUG , Replaced By: A1119970330
999
COVERTO 602 180 29 01
999
SPRING WASHER , Replaced By: N000137008212
999
SCREW SUPPORT TO CYLINDER CRANKCASE
999
SCREW , Replaced By: N304014008009
999
SCREW PLUG AT TANK
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
COMBINATION BOLT , Replaced By: N304017008028
999
COMBINATION BOLT , Replaced By: A0019909312
999
COMBINATION BOLT SUPPORT TO CRANKCASE
999
COMBINATION BOLT , USED WITH HYDRAULIC BRAKE UP TO CHASSIS 209475 EXCEPT FOR 209273,209446,209461,209465,209471,209474.
999
SCREW
