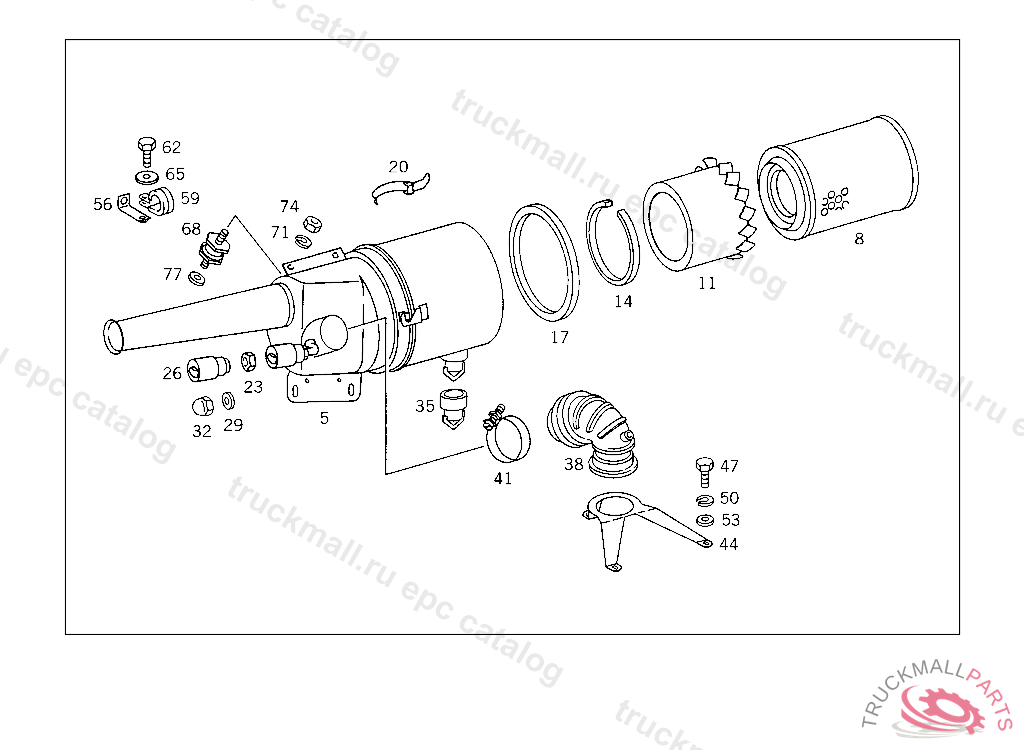

Поз.
Артикул
Описание
5
AIR CLEANERMANN & HUMMEL
5
AIR CLEANERKNECHT
8
FILTER ELEMENT
11
SEPARATORTO 011 094 12 02
14
WASHER FELT
17
GASKETTO 011 094 12 02
17
GASKETTO 011 094 11 02
20
FASTENER
23
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
26
MAINTENANCE INDICATOR ,950198
26
VACUUM BOX (MAINTENANCE INDICATOR) TO 115 094 01 02,973,974,460.332901875
29
SEAL RINGTO 001 431 72 14
32
NUT , FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
35
VALVE (DUST DISCHARGE VALVE)
35
VALVE ON AIR CLEANER
38
HOSE , 936 10/50,20/60 002350
41
LOOM TIE. CLAMP HOSE FASTENING
41
CLAMP , Replaced By: A0069972690
44
BRACKET
47
SCREW PUMP TO BRACKET
47
SCREW , Replaced By: N304017006016
50
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
WASHER COMPRESSED AIR LINE TO BRACKET
68
RUBBER BUFFER COVERING TO FRAME
71
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
74
NUT
77
WASHER EXHAUST MUFFLER TO STRAP
77
WASHER , Replaced By: N000125008443
