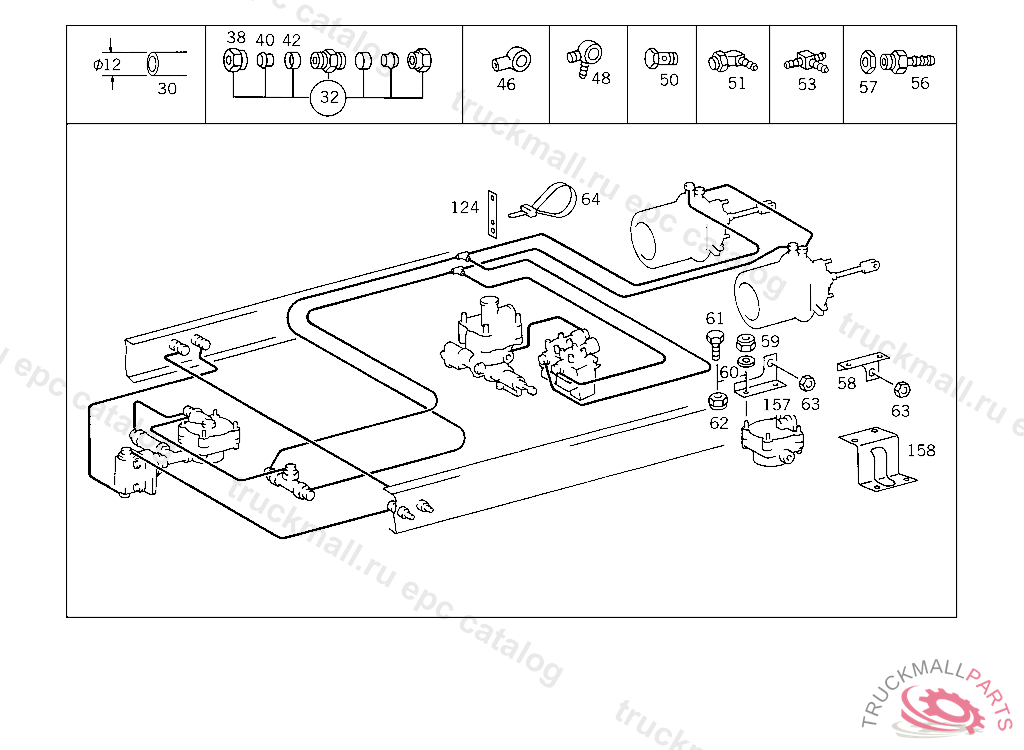

Поз.
Артикул
Описание
30
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
30
HOSE , Replaced By: A0009872827
32
FITTING (PARTS KIT),LINE RUPTURE
32
FITTING , Replaced By: A0029906171
38
UNION NUT LINE CONNECTION
38
UNION NUT LINE CONNECTION, Replaced By: N000000006239
38
UNION NUT LINE CONNECTION
38
UNION NUT LINE CONNECTION, Replaced By: N000000006239
40
SEAL CONE LINE CONNECTION
40
SEAL CONE LINE CONNECTION
40
GLAND , Replaced By: A0019901967
42
SLEEVE LINE CONNECTION
42
SLEEVE LINE CONNECTION
46
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
48
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
48
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
50
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
51
ELBOW FITTING LINE MOUNTING
53
T-FITTING HOSE WIDTH, 9 MM,TO M 22
53
T-FITTING , Replaced By: A0029909070
56
FITTING BULKHEAD FITTING,CONNECTION: "10"
56
FITTING BULKHEAD FITTING,CONNECTION: "10"
56
FITTING , Replaced By: N915059010001
57
NUT BRACKET TO SIDE MEMBER
57
NUT BRACKET TO SIDE MEMBER
58
BRACKET SIDE MEMBER,5 272559
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
60
WASHER 3/2-WAY VALVE TO BRACKET
61
SCREW BRACKET TO CROSS CONNECTION STRUT
61
SCREW , Replaced By: N304017008034
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
63
NUT BRACKET TO SIDE MEMBER
64
LOOM TIE LINE MOUNTING 280 MM
64
LOOM TIE LINE MOUNTING
124
BRACKET WISHBONE CONTROL ARM
157
BRACKET SIDE MEMBER,5 272559
157
BRACKET SIDE MEMBER,5 272559
158
BRACKET SIDE MEMBER,5 2725605 356525
158
BRACKET SIDE MEMBER,5 2725605 356525
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ADAPTER FITTING , Replaced By: A0069970072
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296934
999
VALVE PART , Replaced By: A0029971236
999
TEST CONNECTION
999
ABS ELECTRONICS , Replaced By: A0004461114
999
CROSS FITTING AIR RESERVOIRS I AND II,4 821954 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONTROL UNIT , Replaced By: A0025454932
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 042987, Replaced By: A0035452832
999
VALVE
999
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.5 186367 IN CASE OF "C" ELECTRONICS WITH ASR, EXCHANGE 006 545 27 32 FOR 013 545 05 32, Replaced By: A0045458432
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
LINE FROM 3/2-WAY VALVE TO DISTRIBUTOR
999
BRACKET RELAY VALVE, NOT USED
999
BRACKET SENSOR CABLE
999
PROTECTIVE PLATE , Replaced By: A6244210120
999
PROTECTIVE PLATE FRONT AXLE TWO-WAY VALVE
999
BRACKET LEFT SIDE MEMBER
999
BRACKET RIGHT SIDE MEMBER
999
BRACKET LOAD/NO-LOAD VALVE
999
FITTING , Replaced By: A0009905070
