Поз.
Артикул
Описание

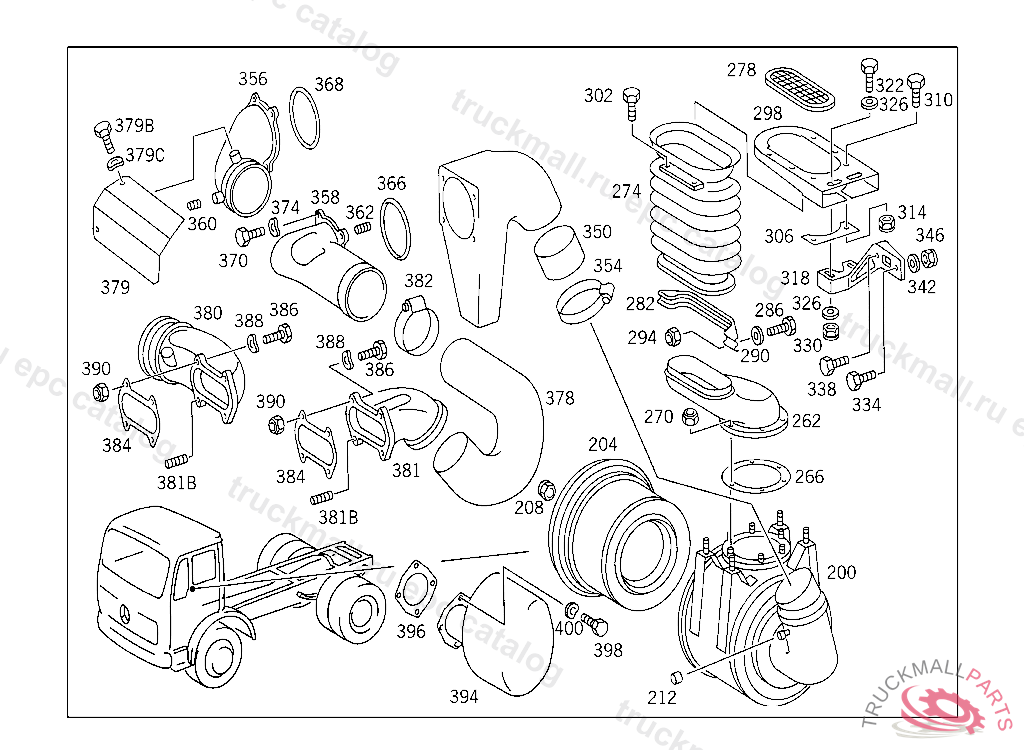

200
AIR CLEANERMANN & HUMMEL,4 938204
204
FILTER ELEMENT
204
FILTER ELEMENTT0 010 094 15 02
208
NUT
212
WASHER FELT
262
PIPE ELBOW (INTAKE PIPE),4 938204
266
GASKET INTAKE PIPE TO AIR CLEANER,4 938204
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
270
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
NUT , Replaced By: N913004008001
274
BOOT AIR INTAKE
274
BOOT , Replaced By: A6205200296
278
STRAINER BOOT
278
STRAINER , Replaced By: A6205280103
282
CLAMP BOOT TO INTAKE PIPE
286
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
286
SCREW , Replaced By: N304017008027
290
WASHER EXHAUST MUFFLER TO STRAP
290
WASHER , Replaced By: N000125008443
294
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
294
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
294
NUT , Replaced By: N913004008001
298
BRACKET BOOT
298
BRACKET , Replaced By: A6575280040
302
SCREW BOOT TO BRACKET
306
BRACKET BOOT
310
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
310
SCREW , Replaced By: N304017008016
314
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
314
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
314
NUT , Replaced By: N913004008001
318
SUPPORT BOOT
322
SCREW BRACKET TO SUPPORT
326
WASHER RADIATOR TO RUBBER MOUNTING
326
WASHER , Replaced By: N000125010532
330
NUT STRAP TO BRACKET
330
NUT , Replaced By: N910113010000
334
SCREW BRACKET TO SIDE MEMBER
334
SCREW , Replaced By: N304017010002
338
SCREW EXHAUST PIPE TO BRACKET
342
WASHER RADIATOR TO RUBBER MOUNTING
342
WASHER , Replaced By: N000125010532
346
NUT STRAP TO BRACKET
346
NUT , Replaced By: N910113010000
350
HOSE FROM AIR CLEANER TO CAB CONSOLE
354
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
354
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
354
CLAMP , Replaced By: N000000000678
366
SEAL RING INTAKE PIPE TO CAB CONSOLE,5 088424
368
SEAL RING INTAKE PIPE TO CAB CONSOLE,5 088425
370
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
370
SCREW , Replaced By: N304017008027
374
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
374
SPRING WASHER , Replaced By: N000137008212
378
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
381
PIPE ELBOW (INTAKE PIPE)
382
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
382
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
382
CLAMP , Replaced By: N000000000678
384
GASKET INTAKE PIPE TO ENGINE
384
GASKET , Replaced By: A4421411480
386
SCREW BRACKET TO SUPPORT
386
SCREW PIPE ELBOW TO BRACKET M 10X50
386
SCREW , Replaced By: N304017010053
386
SCREW , Replaced By: N304017010030
386
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
388
SPRING WASHER STEERING COLUMN BRACKET TO CAB
390
NUT STRAP TO BRACKET
390
NUT , Replaced By: N910113010000
999
CAP OIL REFILLING
999
CAP OIL REFILLING
999
PIPE ELBOW (INTAKE PIPE),5 066897
999
SCREW , Replaced By: N304017008018
999
SCREW SUPPORT TO FENDER
999
THREADED INSERT ,5 462573
