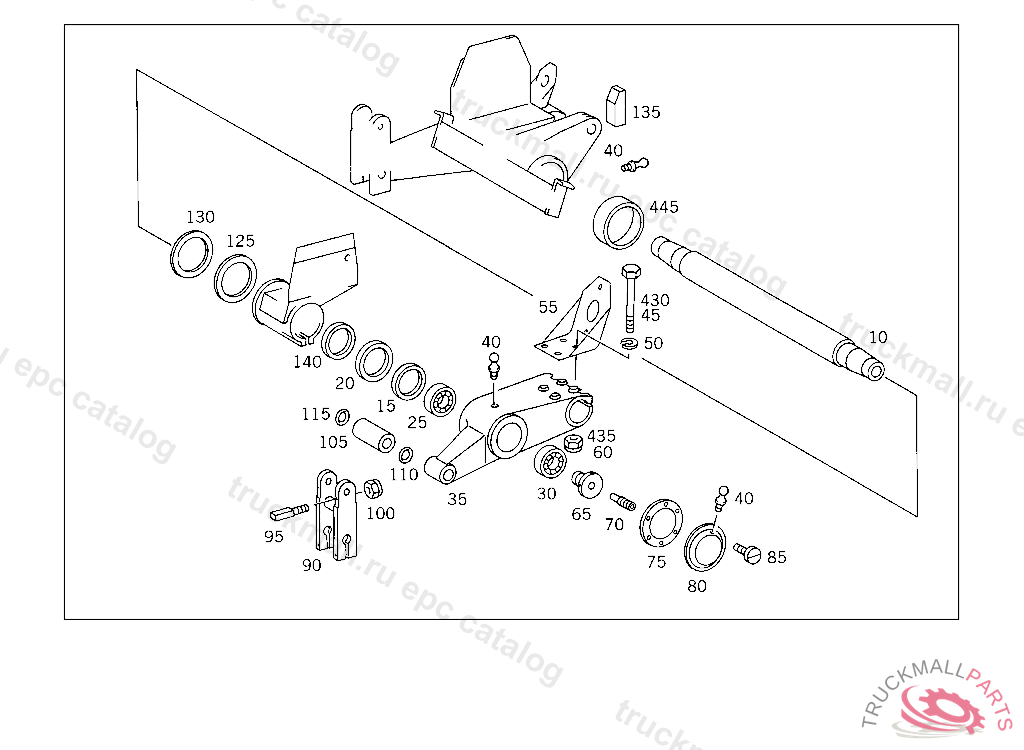

Поз.
Артикул
Описание
10
AXLE TUBE
15
THRUST RING SWINGING LINK TO AXLE TUBE,INSIDE
20
SEAL RING SWINGING LINK TO AXLE TUBE,INSIDE
25
TAPERED ROLLER BEARING INSIDE
30
CYLINDR. ROLLER BEARING OUTSIDE
35
SWINGING LINK LEFT
35
SWINGING LINK RIGHT
40
GREASE NIPPLE PROTECTIVE TUBE
40
GREASE NIPPLE , Replaced By: N071412010100
45
SCREW RUBBER MOUNTING TO FRONT CONSOLE
50
WASHER SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
55
SCREW
60
NUT
65
FLANGE SWINGING LINK
70
SCREW
75
GASKET COVER TO SWINGING LINK
80
COVER SWINGING LINK
85
SCREWROCKINGER,TYP 59 U150
85
SCREW , Replaced By: A0009847929
90
SHACKLE REAR SPRING TO SWINGING LINK
95
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
95
STUD , Replaced By: A3529900337
100
NUT SHACKLE PIN TO SHACKLE
105
BUSHING SPRING SHACKLE TO SWINGING LINK
110
SEAL RING SPRING SHACKLE TO SWINGING LINK
115
SEAL RING SPRING SHACKLE TO SWINGING LINK
125
GASKET LIFT ARM
130
RING LIFT ARM
135
LOCK MOUNTING BRACKET
140
SPACER RING
430
STUD BOLT P.T.O. TO BELL HOUSING M 12X30
435
NUT END PIECE TO EXHAUST PIPE
445
BUSHING LIFT ARM
999
VALVE , Replaced By: A0005505355
999
TRAILING AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 749.005
999
TRAILING AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 749.005
