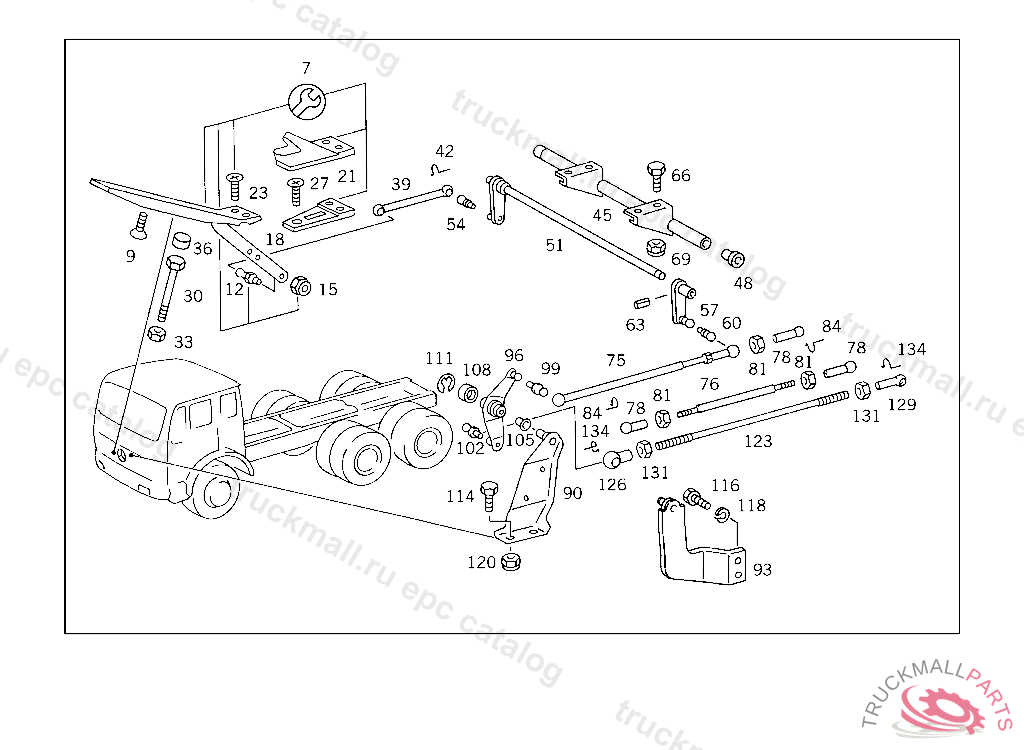

Поз.
Артикул
Описание
7
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
9
SCREW ACCELERATOR PEDAL
12
BALL PIVOT LOAD SENSOR
15
NUT PUMP TO BRACKET
15
NUT , Replaced By: N913004006001
18
SHIM ACCELERATOR PEDAL
21
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
27
SCREW ACCELERATOR PEDAL TO CAB M 6X20
30
SCREW VALVE TO BRACKET, Replaced By: N304014008002
33
NUT
33
NUT , Replaced By: N304032008006
36
STOP ACCELERATOR PEDAL
39
BALL SOCKET ROD TO ACCELERATOR PEDAL
42
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
45
BEARING TUBE CONTROL SHAFT,5 151594
48
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
51
SHAFT CONTROL,5 151594
54
BALL PIVOT CONTROL SHAFT
57
LEVER (CONTROL LEVER)
60
BALL PIVOT CONTROL SHAFT
63
CLAMPING SLEEVE , Replaced By: N308752004001
66
SCREW , Replaced By: N304017008016
69
NUT , Replaced By: N913004008001
75
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
78
BALL SOCKET PULL ROD TO LEVER
81
NUT BALL PIVOT TO LEVER
84
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
90
BEARING BRACKET INTERMEDIATE BEARING
90
BEARING BRACKET INTERMEDIATE LEVER
90
BEARING BRACKET ,5 181099, Replaced By: A6203000436, +002A6153010088
96
LEVER (INTERMEDIATE LEVER)
96
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 188038-5 251581, Replaced By: A6203001128
96
LEVER (INTERMEDIATE LEVER)
96
LEVER ,5 181099, Replaced By: A6203000928, +002A6153010088
99
BALL PIVOT , Replaced By: A3129910120
102
BALL PIVOT BOTTOM B13X5 MM
105
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
108
COVERING INTERMEDIATE BEARING
111
LOCK PLATE INTERMEDIATE BEARING
114
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
120
NUT , Replaced By: N910113010000
123
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
126
BALL SOCKET ROD TO BALL PIVOT
129
BALL SOCKET ROD TO BALL PIVOT
131
NUT , Replaced By: N304032008006
134
SECURING CLIP. CIRCLIP
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
