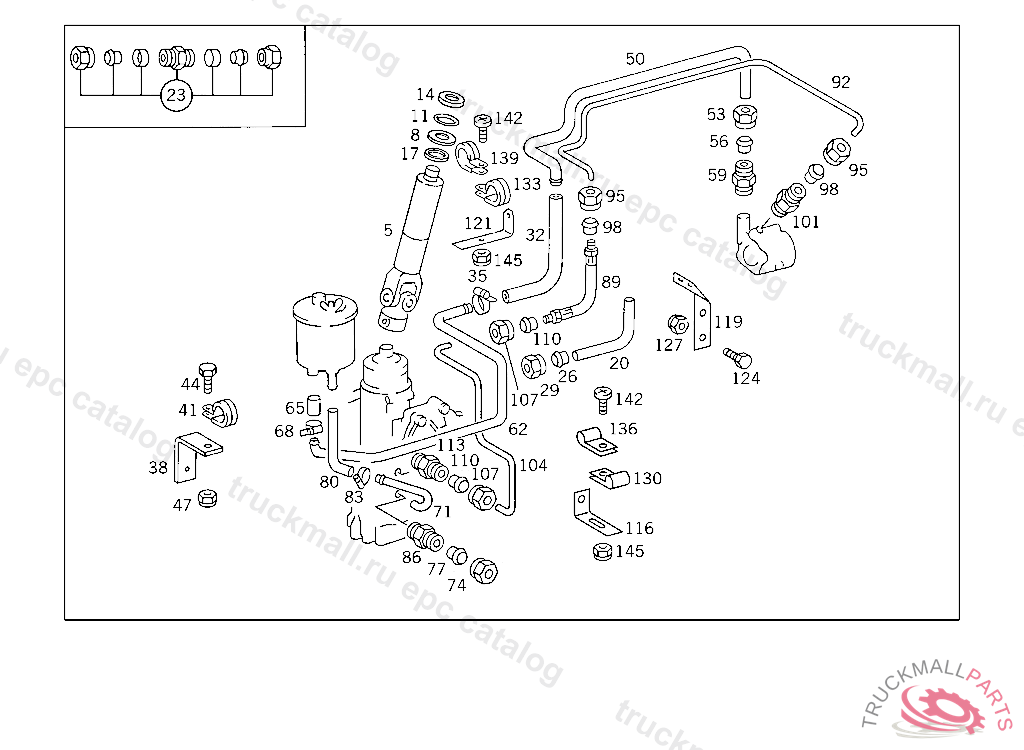

Поз.
Артикул
Описание
5
STEERING SHAFT
5
STEERING SHAFT
5
STEERING SHAFT , Replaced By: A6504600409
8
WASHER
11
SEAL RING
14
SEAL HOLDER
17
RING STEERING SHAFT
20
TUBE FROM HIGH PRESSURE HOSE TO STEERING
23
FITTING (PARTS KIT),LINE RUPTURE
23
FITTING , Replaced By: A0029906171
26
GLAND , Replaced By: A0019901967
26
SEAL CONE LINE CONNECTION
29
UNION NUT LINE CONNECTION, Replaced By: N000000006239
29
UNION NUT LINE CONNECTION
32
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
35
CLAMP LINES TO BRACKET
38
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
38
BRACKET , Replaced By: A3524290740
38
BRACKET COMPRESSED AIR LINE MOUNTING
41
CLAMP LINES TO BRACKET
41
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
44
SCREW BRACKET TO BEARING BRACKET
44
SCREW LICENSE PLATE TO BRACKET
44
SCREW , Replaced By: N304017006020
44
SCREW , Replaced By: N304017008045
47
NUT , Replaced By: N913004006001
47
NUT PUMP TO BRACKET
50
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
53
NUT LINE CONNECTION
53
UNION NUT LINE CONNECTION, Replaced By: N000000006243
56
GLAND , Replaced By: A0019901267
56
SEAL CONE LINE CONNECTION
59
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
62
LINE , NOT USED
65
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
68
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
68
CLAMP , Replaced By: N000000000667
71
LINE FROM STEERING TO OIL TANK
74
UNION NUT LINE CONNECTION
77
GLAND LINE CONNECTION
80
HOSE , NOT USED
80
HOSE , Replaced By: A6999974082
83
CLAMP HOSE TO FITTING AND TO OIL TANK
86
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
89
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
89
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
89
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
LINE FROM POWER STEERING PUMP TO HOSE
95
UNION NUT LINE CONNECTION
95
UNION NUT LINE CONNECTION, Replaced By: N000000006239
98
GLAND , Replaced By: A0019901967
98
SEAL CONE LINE CONNECTION
101
SCREW-IN FITTING DELIVERY LINE TO PUMP
104
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
107
UNION NUT LINE CONNECTION, Replaced By: N000000006239
107
UNION NUT LINE CONNECTION
110
GLAND , Replaced By: A0019901967
110
SEAL CONE LINE CONNECTION
113
SCREW-IN FITTING DELIVERY LINE TO PUMP
116
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
119
BRACKET DELIVERY AND SUCTION LINES TO FRAME
119
BRACKET , Replaced By: A6564660040
121
BRACKET , Replaced By: A6205244040
121
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
124
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
124
SCREW , Replaced By: N308676012026
124
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
127
NUT SUPPORT TO SIDE MEMBER
130
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
130
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
133
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
136
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
139
CLAMP DELIVERY AND SUCTION LINES TO FRAME
139
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
142
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
145
NUT PUMP TO BRACKET
145
NUT , Replaced By: N913004006001
