Mercedes
TRUCK
2636 K,3336 B/K,3536 K
624.139
50 RADIATOR

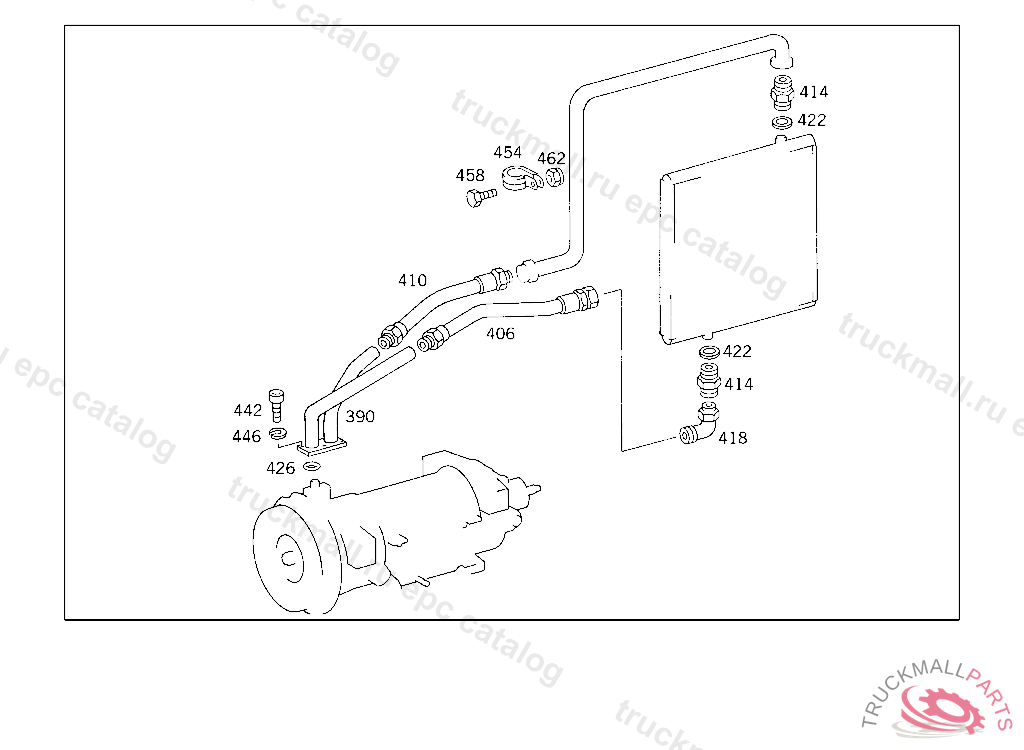

001 RADIATOR,TRANSMISSION OIL COOLER,LINES AND MOUNTING PARTS - CHASSIS PARTS IL.5

Mercedes A6252571682 - Schlauch

2636 K,3336 B/K,3536 K 624.139

50 RADIATOR - 001 RADIATOR,TRANSMISSION OIL COOLER,LINES AND MOUNTING PARTS - CHASSIS PARTS IL.5

Поз.
Артикул
Описание
390
A6992700320
FLANGE (OIL LINE),FROM AIR COOLED OIL COOLER TO SLEEVE VALVE
406
A6252571782
HOSE (OIL LINE),FROM AIR COOLED OIL COOLER TO SLEEVE VALVE
410
A6252571682
HOSE (OIL LINE),FROM AIR COOLED OIL COOLER TO SLEEVE VALVE
414
N003901035003
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
418
N003952035100
FITTING OIL COOLER CONNECTION
422
N007603042101
SEAL RING OIL COOLER CONNECTION
426
A0149970848
SEAL RING OIL LINE
442
N000912006040
SCREW OIL PIPE TO SLEEVE VALVE
446
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
454
N916016035205
CLAMP LINE MOUNTING
458
N000933008145
SCREW CLAMP TO BRACKET AND TO PIPE
462
N913004008004
NUT , Replaced By: N913004008001
462
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
A6205002003
RADIATOR , NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS
999
A6992702241
BRACKET OIL COOLER
999
A6992713340
BRACKET OIL COOLER
999
A6992714640
BRACKET OIL COOLER
