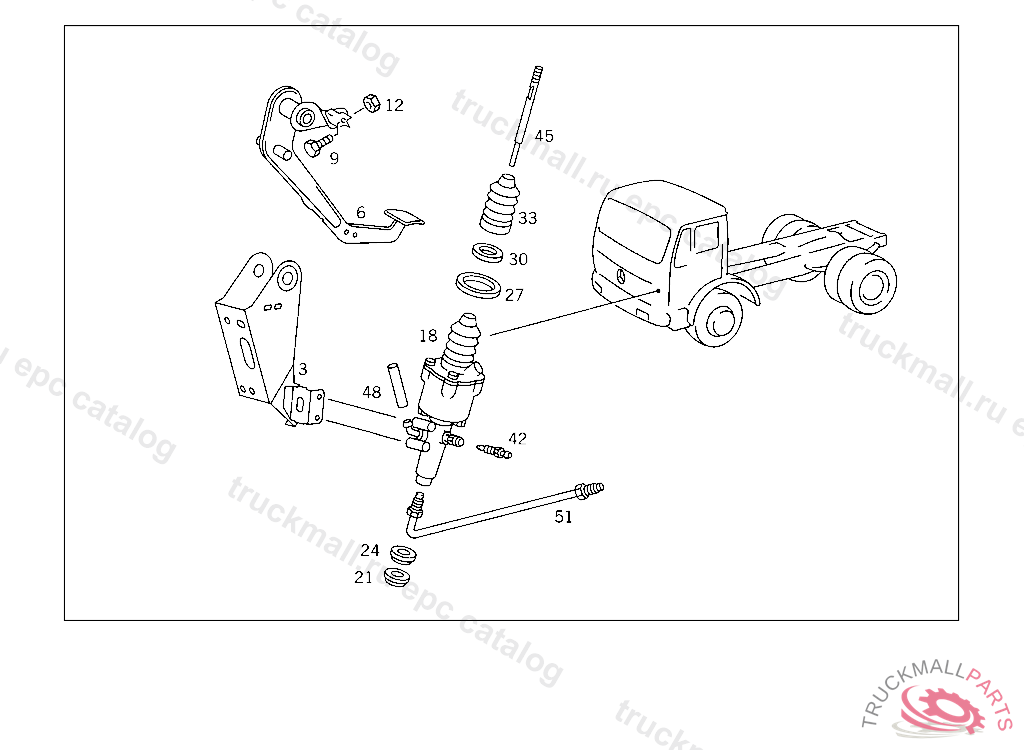

Поз.
Артикул
Описание
3
BEARING BRACKET PEDAL BEARING, TO BE ADAPTED DURING ASSEMBLY
3
BEARING BRACKET PEDAL BEARING, TO BE ADAPTED DURING ASSEMBLY
3
BEARING BRACKET CLUTCH PEDAL
6
PEDAL CLUTCH,5 238024
6
PEDAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 910000, Replaced By: A6202901216
9
SCREW CLUTCH PEDAL
12
NUT SWITCH TO FLOOR PLATE
18
MASTER CYLINDER CLUTCH
21
SEAL RING
24
SEAL RING
27
SEAL RING
30
SEAL RING
33
BOOT
42
VALVE CLUTCH SLAVE CYLINDER
42
BLEEDER VALVE , Replaced By: A0004310265
42
VALVE , Replaced By: A3075530107
45
ROD MASTER CYLINDER TO PEDAL ASSEMBLY
48
HOSE , Replaced By: A0009978952
48
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
51
LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
51
LINE , Replaced By: A3812901714
51
LINE , Replaced By: A3812903214
51
LINE , Replaced By: A3812901614
51
LINE FROM VALVE TO CONNECTION FITTING,K 172343
999
GROMMETD6/32
999
PEDAL , 415 5 014669 416 5 000516 417 4 972024, Replaced By: A6202900216
999
PEDAL CLUTCH,5 238025
999
PEDAL CLUTCH
999
PEDAL CLUTCH,5 238025
999
PEDAL CLUTCH
999
BRACKET 3/2-WAY VALVE
999
SCREW CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET,5 238025
999
SCREW BRACKET ON LOAD SENSOR
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
