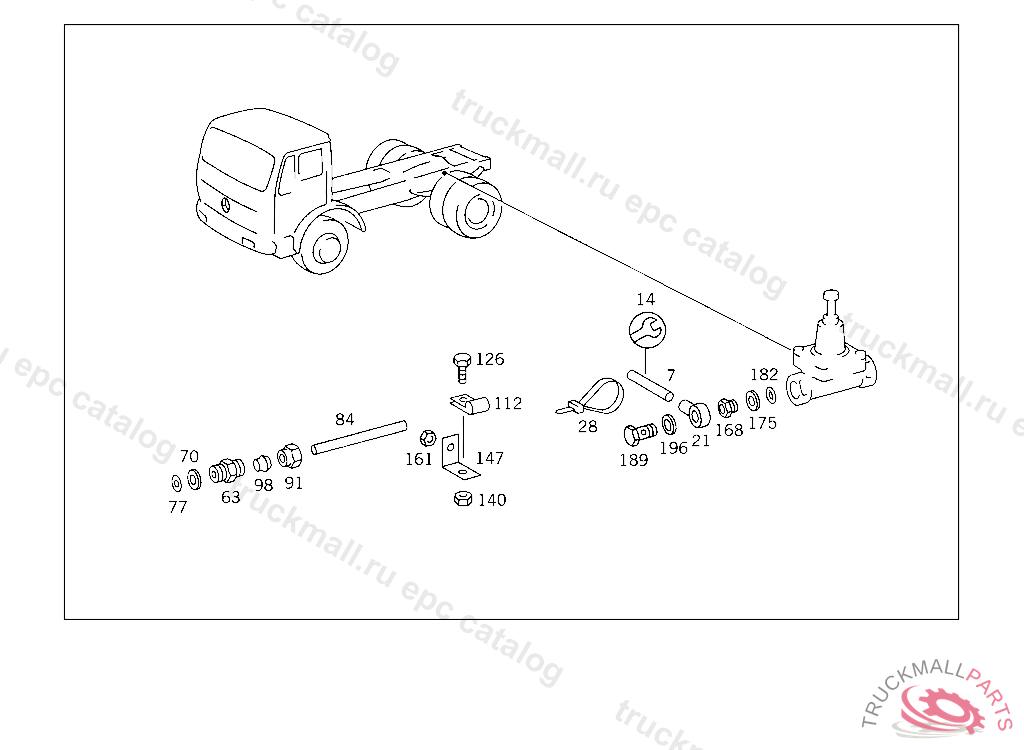

Поз.
Артикул
Описание
7
HOSE , Replaced By: A0009872827
7
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
14
FITTING (PARTS KIT),LINE RUPTURE
14
FITTING , Replaced By: A0029906171
21
BANJO UNION , Replaced By: N915052009009
21
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
28
LOOM TIE LINE MOUNTING 280 MM
63
SCREW-IN FITTING LINE CONNECTION
63
FITTING , Replaced By: N003901018008
70
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
70
THRUST RING CHECK VALVE TO AIR RESERVOIR
77
O-RING CHECK VALVE TO AIR RESERVOIR
84
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
91
UNION NUT LINE MOUNTING
98
GLAND , Replaced By: A0019901167
98
SEAL CONE LINE MOUNTING
112
CLAMP FEED LINE TO THERMOSTAT
126
SCREW PUMP TO BRACKET
126
SCREW , Replaced By: N304017006016
140
NUT , Replaced By: N913004006001
140
NUT PUMP TO BRACKET
147
BRACKET , Replaced By: A6205243040
147
BRACKET BRACKET TO CROSS MEMBER
161
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
161
NUT , Replaced By: N913004008001
168
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
175
THRUST RING CHECK VALVE TO AIR RESERVOIR
175
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
182
O-RING CHECK VALVE TO AIR RESERVOIR
189
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
196
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
