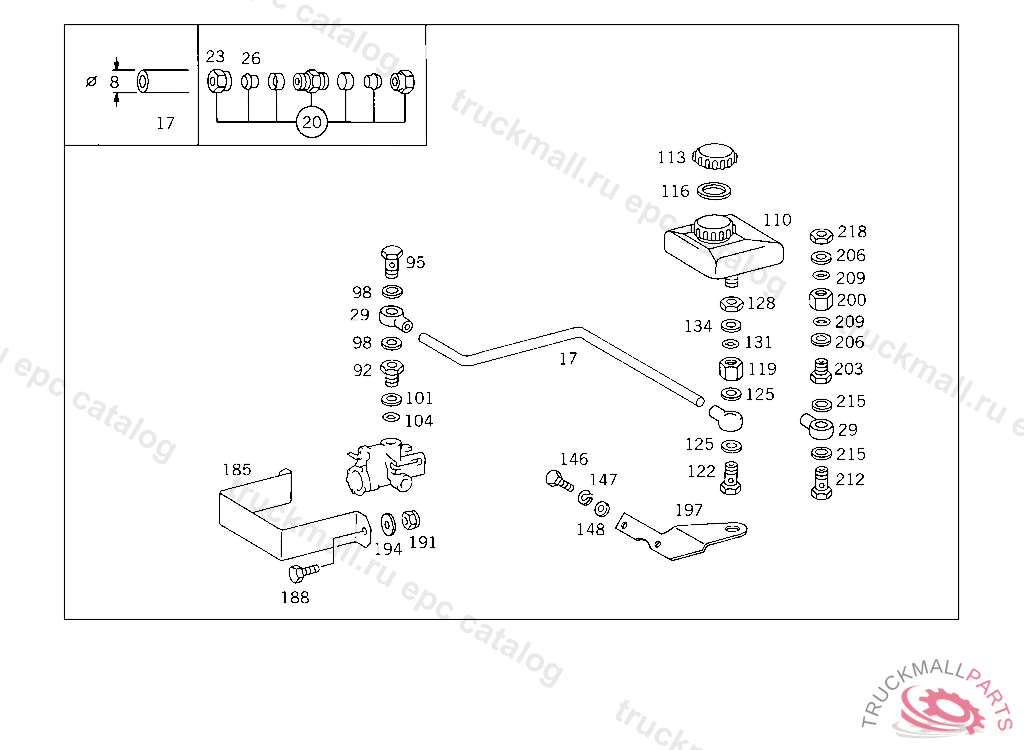

Поз.
Артикул
Описание
17
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
FITTING , Replaced By: A0029905971
20
FITTING (PARTS KIT),LINE RUPTURE
23
UNION NUT BUTT SCREW CONNECTION
23
UNION NUT LINE CONNECTION
23
UNION NUT LINE CONNECTION
26
GLAND LINE CONNECTION
29
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
92
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
95
HOLLOW SCREW HEATING CONNECTION
98
SEAL RING LINE CONNECTION
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
O-RING CHECK VALVE TO AIR RESERVOIR
110
RESERVOIR , Replaced By: A0024311602, +001A0004317833
110
RESERVOIR ANTI-FREEZE DEVICE
113
FILLER CAP BUTTRESS THREAD
116
SEAL RING
119
ADAPTER FITTING RESERVOIR TO SUPPORT
122
HOLLOW SCREW RESERVOIR TO SUPPORT
125
SEAL RING VALVE TO VALVE,K 025179
128
NUT CHECK VALVE TO AIR RESERVOIR
131
O-RING CHECK VALVE TO AIR RESERVOIR
134
THRUST RING CHECK VALVE TO AIR RESERVOIR
134
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
146
SCREW STRAP TO BRACKET
146
SCREW FRONT AXLE REGULATING SOLENOID VALVE
146
SCREW , Replaced By: N000933008134
146
SCREW CENTRAL LOCK TO CAB M 10X16
147
LOCK WASHER AIR CLEANER TO BRACKET
148
WASHER BRACKET TO LEFT SIDE MEMBER
148
WASHER , Replaced By: N009021008213
185
COVERING BRACKET TO APPARATUS SUPPORT
188
SCREW , Replaced By: N304017008016
188
SCREW , Replaced By: N304017008021
188
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
188
SCREW END PIECE TO EXHAUST PIPE M 10X25
188
SCREW END PIECE TO EXHAUST PIPE M 10X25
188
SCREW PIPE CLAMP
191
NUT , Replaced By: N910113010000
191
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
191
NUT STRAP TO BRACKET
191
NUT STRAP TO BRACKET
191
NUT , Replaced By: N913004008001
194
WASHER BRACKET TO APPARATUS SUPPORT
197
BRACKET FLUID RESERVOIR
197
BRACKET FLUID RESERVOIR
200
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
203
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
206
THRUST RING CHECK VALVE TO AIR RESERVOIR
206
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
209
O-RING CHECK VALVE TO AIR RESERVOIR
212
HOLLOW SCREW HEATING CONNECTION
215
SEAL RING LINE CONNECTION
218
NUT CHECK VALVE TO AIR RESERVOIR
999
BRACKET FLUID RESERVOIR
999
BRACKET , Replaced By: A6164310840
999
BRACKET RESERVOIR,6 900001-6 900006
999
FITTING FRONT AXLE II RELAY VALVE,CONNECTION: "24"
