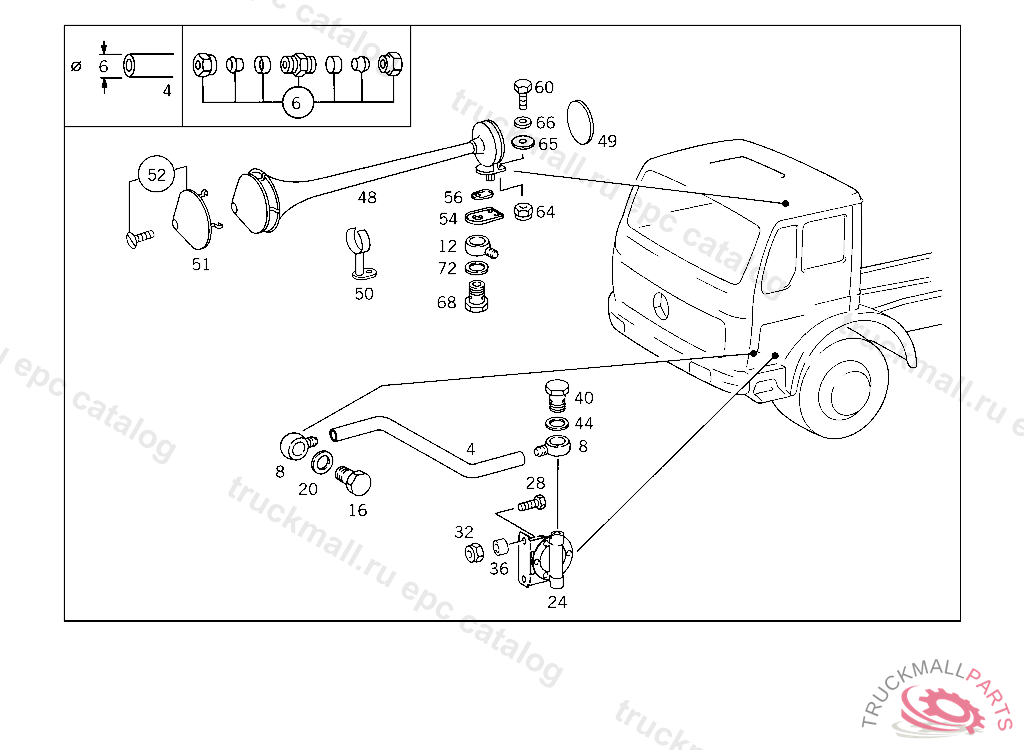

Поз.
Артикул
Описание
4
PLASTIC PIPE RISING PIPE 4X6 MM
4
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
6
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
8
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
12
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
16
HOLLOW SCREW HEATING CONNECTION
20
SEAL RING LINE CONNECTION
24
VALVE (3/2-WAY SOLENOID VALVE)
28
SCREW COVER PLATE TO BRACKET
32
NUT PUMP TO BRACKET
32
NUT , Replaced By: N913004006001
36
SPACER TUBE VALVE TO BRACKET
40
HOLLOW SCREW HEATING CONNECTION
44
SEAL RING LINE CONNECTION
48
AIR HORN HIGH NOTE
48
AIR HORN , Replaced By: A0005423621
48
AIR HORN , Replaced By: A0005423021
48
AIR HORN LOW NOTE
48
AIR HORN , Replaced By: A0005424321
48
AIR HORN , Replaced By: A0005424221
48
AIR HORN LOW NOTE
48
AIR HORN , Replaced By: A0005422521
48
AIR HORN , Replaced By: A0005423121
48
AIR HORN , Replaced By: A0005422221
48
AIR HORN , Replaced By: A0005422421
48
AIR HORN , Replaced By: A0005421921
48
AIR HORN HIGH NOTE
48
AIR HORN , Replaced By: A0005422121
48
AIR HORN , Replaced By: A0005422021
48
AIR HORN , Replaced By: A0005423521
49
DIAPHRAGMTO 000 542 19 21/20 21
50
BRACKET HIGH-GRADE STEEL TO 000 542 42 21/43 21
50
BRACKETTO 000 542 30 21/31 21
50
BRACKET CHROMIUM PLATED TO 000 542 24 21/25 21/35 21/36 21
51
CAPTO 000 542 19 21/20 21
52
COVERING (PARTS KIT),AIR HORN,CHROMIUM PLATED TO 000 542 24 21/25 21/35 21/36 21
52
COVERING (PARTS KIT),AIR HORN HIGH-GRADE STEEL TO 000 542 42 21/43 21
52
COVERING (PARTS KIT),AIR HORN TO 000 542 30 21/31 21
54
SHIM HORN TO CAB ROOF
56
SHIM HORN TO CAB ROOF
60
SCREW , Replaced By: N304017006020
60
SCREW LICENSE PLATE TO BRACKET
64
NUT PUMP TO BRACKET
64
NUT , Replaced By: N913004006001
65
WASHER HORN TO CAB ROOF
66
WASHER , Replaced By: N009021006208
66
WASHER COMPRESSED AIR LINE TO BRACKET
68
HOLLOW SCREW HEATING CONNECTION
72
SEAL RING LINE CONNECTION
999
SHIM
999
BRACKET
