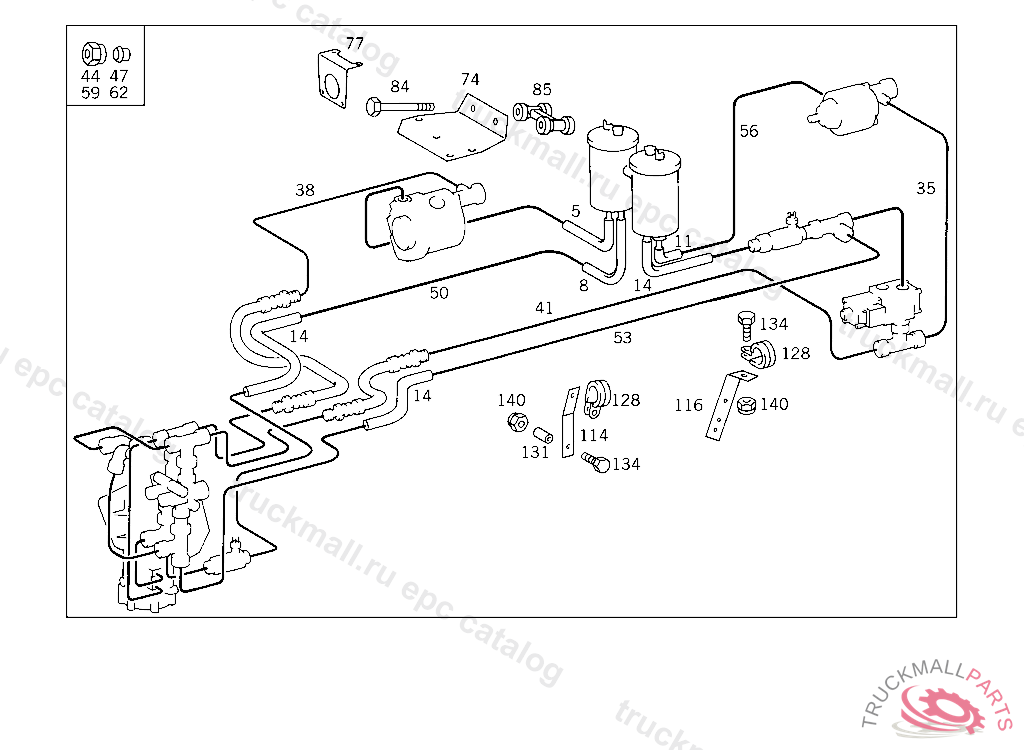

Поз.
Артикул
Описание
5
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
5
HOSE , Replaced By: A3859971582
8
HOSE , Replaced By: A3859971682
8
HOSE , Replaced By: A6254660281
8
HOSE , NOT USED
8
HOSE FROM RETURN LINE TO OIL TANK
11
HOSE FROM OIL TANK TO SUCTION LINE
14
HOSE FROM RETURN LINE TO OIL TANK
14
HOSE RETURN LINE CONNECTION 245 MM
14
HOSE RETURN LINE CONNECTION 265 MM
14
HOSE , Replaced By: A6254660281
35
LINE , Replaced By: A0005516156
35
LINE , Replaced By: A0005516156
35
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
35
TUBE FROM HIGH PRESSURE HOSE TO STEERING
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,5 720064
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
35
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
35
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
35
LINE (DELIVERY LINE),FROM PUMP TO HOSE, CIRCUIT I
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,K 063043
35
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
35
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,K 063044
38
LINE (DELIVERY LINE),FROM HOSE TO T-FITTING, NOT USED
38
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
38
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
38
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
38
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
41
LINE (PRESSURE HOSE),FROM DISCONNECTING POINT,ENGINE,TO HIGH-PRESSURE HOSE
41
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
41
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II
44
UNION NUT LINE CONNECTION
47
GLAND LINE CONNECTION
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
50
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
50
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
50
LINE RETURN LINE TO OIL TANK
50
LINE RETURN LINE TO OIL TANK,5 940034
50
LINE RETURN LINE TO OIL TANK
50
LINE (DELIVERY LINE),FROM PUMP TO HOSE, CIRCUIT I
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
50
CONTACT BRIDGE RETURN LINE TO OIL TANK
50
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
50
LINE FROM STEERING TO PRESSURE LIMIT VALVE T-FITTING,CIRCUIT I, NOT USED
50
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
50
LINE RETURN LINE TO OIL TANK,5 738607
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
50
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
50
LINE RETURN LINE TO OIL TANK,5 959804
50
OIL LINE (RETURN LINE) TO OIL HOSE,CIRCUIT I
50
LINE (RETURN LINE) FROM HOSE TO HOSE,CIRCUIT:
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
50
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
50
LINE (PRESSURE HOSE),FROM DISCONNECTING POINT,ENGINE,TO HIGH-PRESSURE HOSE
53
LINE RETURN LINE TO OIL TANK
53
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
53
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
53
LINE RETURN LINE TO OIL TANK,5 769901
53
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
53
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
53
LINE RETURN LINE TO OIL TANK
53
LINE RETURN LINE TO OIL TANK
53
LINE RETURN LINE TO OIL TANK
53
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
53
LINE RETURN LINE TO OIL TANK
53
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS I
53
LINE (RETURN LINE),FROM HOSE TO HOSE KREIS II
53
LINE RETURN LINE TO OIL TANK
53
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
53
LINE RETURN LINE TO OIL TANK,5 738607
56
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE FROM FLOW INDICATOR TO HIGH PRESSURE HOSE,CIRCUIT I
56
LINE , Replaced By: A0004291601
56
LINE , Replaced By: A0004291601
56
LINE , Replaced By: A0004291601
56
LINE , Replaced By: A0004291601
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE DELIVERY LINE TO ENGINE,5 959804
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II,K 063043
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
56
LINE SUCTION LINE TO OIL PUMP,CIRCUIT II
56
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
59
UNION NUT LINE MOUNTING
59
NUT LINE CONNECTION
59
UNION NUT LINE CONNECTION, Replaced By: N000000006243
62
GLAND , Replaced By: A0019901267
62
GLAND , Replaced By: A0019901167
62
SEAL CONE LINE MOUNTING
62
SEAL CONE LINE CONNECTION
74
BRACKET OIL TANK
77
BRACKET OIL TANK
77
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
84
SCREW CLUTCH TO FLYWHEEL
85
SHIM OIL TANK
114
BRACKET DELIVERY AND SUCTION LINES
114
BRACKET , Replaced By: A3812711640
116
BRACKET RETURN LINE,5 537500
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP , Replaced By: A6739950001
128
CLAMP DELIVERY AND SUCTION LINES TO STEERING
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP LINE MOUNTING
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP HOSE TO FLANGE AND TO VALVE
128
CLAMP BRAKE HOSE BRACKET
131
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
131
SPACER TUBE SWITCH TO ENGINE
131
SPACER TUBE , Replaced By: A1369913740
134
SCREW , Replaced By: N304017010002
134
SCREW , Replaced By: N304017006016
134
SCREW , Replaced By: N304017006020
134
SCREW , Replaced By: N304017008018
134
SCREW CAB FLOOR COVERING M 6X25
134
SCREW LICENSE PLATE TO BRACKET
134
SCREW SUPPORT TO FENDER
134
SCREW BRACKET TO FRAME SIDE MEMBER
134
SCREW PUMP TO BRACKET
134
SCREW END PIECE TO EXHAUST PIPE M 10X25
134
SCREW COVER PLATE TO BRACKET
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW HOSE TO CAB M 6X25
134
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
134
SCREW AT FILTER BRACKET
134
SCREW BRACKET TO SIDE MEMBER M 12X30
134
SCREW CYLINDER TO P.T.O. HOUSING
134
SCREW CONVERTER HOUSING TO FLYWHEEL
140
NUT STRAP TO BRACKET
140
NUT AT FILTER BRACKET
140
NUT END PIECE TO EXHAUST PIPE
140
NUT PUMP TO BRACKET
140
NUT , Replaced By: N910113010000
140
NUT , Replaced By: N913004006001
999
SCREW , Replaced By: N304017008018
999
HOSE , Replaced By: A3859971682
999
HOSE , Replaced By: A3859971582
999
HOSE , Replaced By: A6999974082
999
HOSE , Replaced By: A3859971582
999
HOSE , Replaced By: A3859971582
999
BRACKET FENDER TO BRACKET
999
BRACKET DELIVERY LINE TO ENGINE
999
BRACKET OIL TANK,K 209686
999
BRACKET OIL LINE TO TRANSMISSION
999
BRACKET
999
BRACKET OIL TANK,K 181151K 209685
999
BRACKET LINES TO SIDE MEMBER
999
BRACKET ENGINE SUSPENSION EYE
999
BRACKET DELIVERY LINE TO FRAME
999
BRACKET ,5 936685
999
BRACKET OIL TANK TO PLATE
999
BRACKET POWER CYLINDER DELIVERY LINE,5 556098
999
BRACKET OIL LINE TO TRANSMISSION CASE
999
HOSE RETURN LINE CONNECTION 200 MM, ORDER BY THE METER
999
HOSE RETURN LINE CONNECTION 250 MM, ORDER BY THE METER
999
HOSE
999
HOSE FROM RETURN LINE TO OIL TANK,K 012717
999
HOSE , Replaced By: A6254660281
999
HOSE , Replaced By: A6254660381
999
BRACKET LINES TO BRACKET,K 187088
999
BRACKET POWER CYLINDER DELIVERY LINE,K 011674
999
BRACKET POWER CYLINDER DELIVERY LINE
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE (RETURN LINE),FROM HOSE TO HOSE
999
LINE (RETURN LINE),FROM HOSE TO HOSE
999
LINE (DELIVERY LINE),FROM PUMP TO HOSE, CIRCUIT I
999
LINE , Replaced By: A0005516156
999
LINE , Replaced By: A0005516156
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6754600988
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
999
LINE FROM STEERING TO HIGH PRESSURE HOSE, CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,5 764784
999
LINE (PRESSURE LINE),PUMP TO SEPARATION POINT ENGINE CIRCUIT II
999
LINE (SUCTION LINE) FROM OIL TANK TO PUMP,CIRCUIT II,5 7647845 760760
999
LINE (RETURN LINE),FROM HOSE TO HOSE,5 7647845 959804
999
LINE DELIVERY LINE TO OIL PUMP,CIRCUIT II,K 061656
999
LINE (RETURN LINE) TO OIL HOSE,CIRCUIT II
