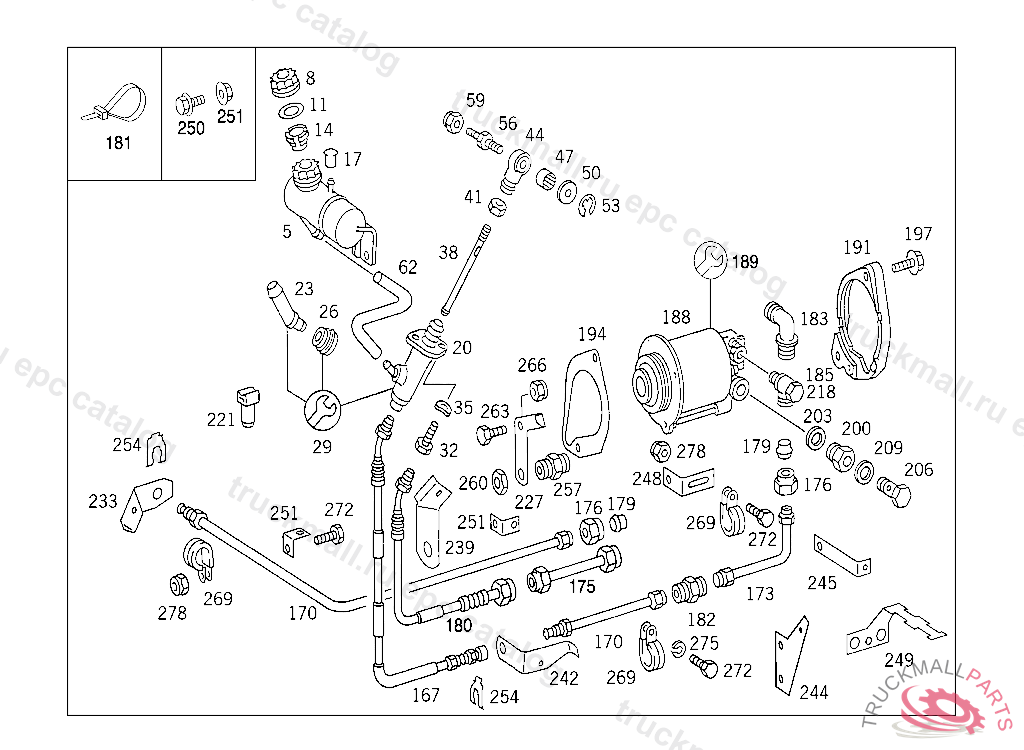

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
MASTER CYLINDER CLUTCH
23
INTERMEDIATE PIECE
26
PLUG
29
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER
32
SCREW COVER PLATE TO BRACKET
35
SPRING WASHER LICENSE PLATE TO BRACKET
38
ROD CLUTCH MASTER CYLINDER
41
NUT
41
NUT , Replaced By: N304035008001
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
44
ARTICULATION PIECE CLUTCH MASTER CYLINDER
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
47
NEEDLE BEARING JOINT TO PIN
50
WASHER BRACKET TO FENDER BRACKET
53
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
56
PIN CLUTCH MASTER CYLINDER TO CLUTCH PEDAL
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
167
LINE , Replaced By: A6552904013
167
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1630 MM,K 130132
167
LINE CLUTCH LINE
173
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
175
LINE FROM MASTER CYLINDER TO HOSE 95 MM,K 130133
176
UNION NUT LINE CONNECTION
176
UNION NUT
179
GLAND LINE CONNECTION
180
LINE FROM MASTER CYLINDER TO PARTITION FITTING 4150 MM
180
LINE FROM MASTER CYLINDER TO PARTITION FITTING 5000 MM
181
LOOM TIE LINE MOUNTING
182
FITTING (PARTS KIT),LINE RUPTURE
185
FITTING CLUTCH BOOSTER,CONNECTION: "4"
185
FITTING , Replaced By: A0029909768
188
CLUTCH BOOSTER , Replaced By: A0002951518
188
CLUTCH BOOSTERKNORR
188
CLUTCH BOOSTERWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
189
REPAIR KIT CLUTCH BOOSTER WABCO
191
BRACKETWABCO,K 037846
194
COVER PLATETO 000 295 02 18 , 000 295 09 18
197
SCREW CLUTCH BOOSTER TO BELL HOUSING,K 037846
200
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
203
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
206
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
209
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
209
SEAL RING. SEALING RING , Replaced By: N007603016401
218
FITTING , Replaced By: A0029909768
218
FITTING CLUTCH BOOSTER,CONNECTION: "4"
221
BRACKET LINE TO FRONT PANEL
239
BRACKET BRACKET TO FAN SHROUD BRACKET
242
BRACKET BRACKET TO FAN SHROUD BRACKET,K 130132
244
BRACKET CLUTCH LINE TO BRACKET,K 130132
245
BRACKET FUEL LINES TO TRANSMISSION
248
BRACKET FUEL LINE TO BELL HOUSING
248
BRACKET HYDRAULIC LINE TO BELL HOUSING,5 547965K 130132
249
BRACKET HYDRAULIC LINE TO FAN SHROUD
250
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
251
NUT EXHAUST PIPE TO SIDE MEMBER
257
FITTING HYDRAULIC LINE TO BRACKET,K 130132
260
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
266
NUT STRAP TO BRACKET
266
NUT , Replaced By: N910113010000
269
CLAMP ,K 147121, Replaced By: N000000000319
269
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
269
CLAMP WIRE CABLE TO SIDE MEMBER AND TO TRANSMISSION
272
SCREW COVER PLATE TO BRACKET
272
SCREW PUMP TO BRACKET
272
SCREW , Replaced By: N304017006016
275
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
278
NUT PUMP TO BRACKET
278
NUT , Replaced By: N913004006001
999
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING,K 130132
999
BRACKET CLUTCH LINE TO SUPPORT
999
SCREW BRACKET TO SIDE MEMBER
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
CLAMP LINE MOUNTING
