O 530 NG3 EURO 2
628.010
32 SPRINGS AND SUSPENSION

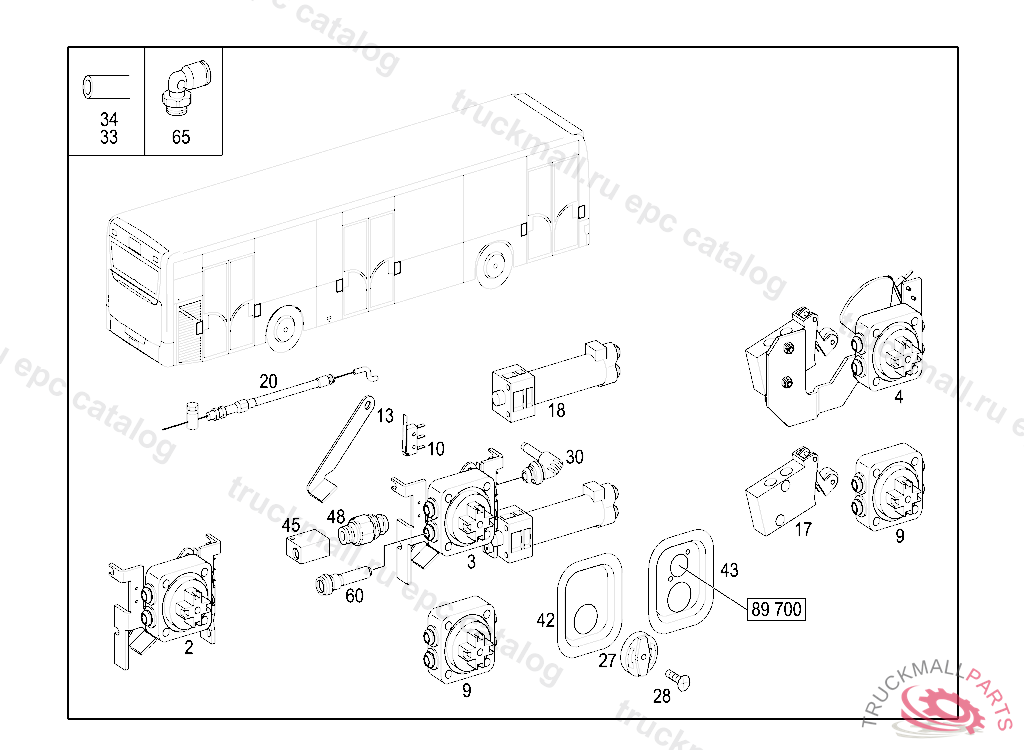

060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2

Mercedes A0009872627 - Трубка пластиковая 6 X 4

O 530 NG3 EURO 2 628.010

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2

Поз.
Артикул
Описание
2
A6277600857
EMERGENCY COCK. CONTROL COCK STANDARD VERSION
2
A6277600457
CONTROL COCK KEY LOCKING
3
A6287601257
CONTROL COCK KEY LOCKING
3
A6287601057
CONTROL COCK OUTSIDE
3
A6287601157
CONTROL COCK OUTSIDE
3
A6277601357
CONTROL COCK EMERGENCY VALVE RESET
4
A6277601357
CONTROL COCK EMERGENCY VALVE RESET
4
A6287601957
CONTROL COCK KEY LOCKING
4
A6287601857
CONTROL COCK KEY LOCKING
4
A6287601357
CONTROL COCK EMERGENCY VALVE RESET
9
A6287602157
CONTROL COCK
9
A0009970512
PNEU. DIR. CONTROL VALVE , Replaced By: A6287602157
10
A0055458714
SWITCH
13
A0007662324
LEVER
13
A0007663224
ACTUATING LEVER
13
A0007663324
ACTUATING LEVER
13
A0007662424
LEVER , Replaced By: A0007663324
13
A0007662224
LEVER , Replaced By: A0007663224
13
A0007662524
LEVER
17
A0007606878
VALVE
18
A0008004372
CYLINDER
20
A6277601304
PULL
20
A6277601604
PULL
27
A0009977177
ROTARY KNOB
27
A0009977477
HANDLE
27
A0009977377
ROTARY KNOB
27
A0009977077
ROTARY KNOB
28
A0009906131
SCREW
28
A0029901020
SCREW
30
A0049904271
ELBOW FITTING
33
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
34
A0009875427
PLASTIC PIPE YELLOW D6MM, ORDER BY THE METER
34
A0009875327
PLASTIC PIPE BLUE, ORDER BY THE METER
42
A6277660045
RECESS
43
A6277660145
RECESS
45
A0008050078
VALVE SHUTTLE VALVE
48
A0039905768
FITTING
60
A0009973101
PLUG
65
A0039903671
ELBOW FITTING DIA., 6MM
999
A0049907170
T-FITTING
999
A0049906870
T-FITTING , Replaced By: A0049907170
999
A0039906768
FITTING
999
A0029975889
COUPLING
999
A0029872460
RUBBER PAD
999
A0007605278
VALVED6 MM
