Главная
›
Mercedes
›
BUS
›
CITARO 12M 2-TUERER
›
628.037
›

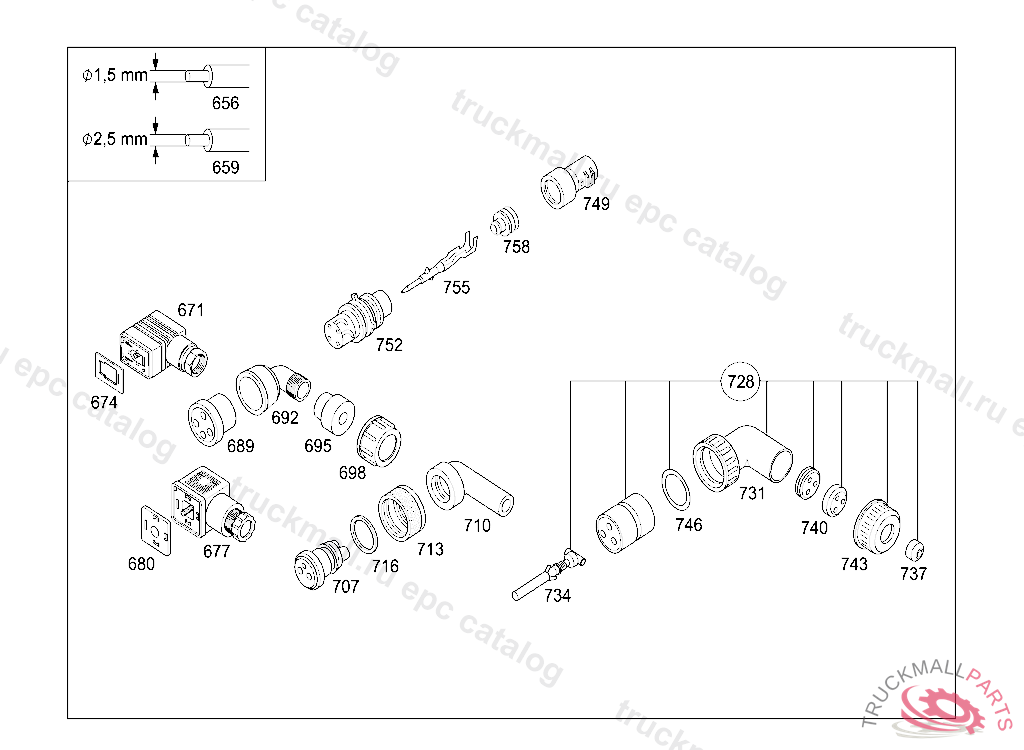

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›
040 CONTACT PARTS,GROMMETS,MOUNTING PARTS, BULBS IL. 3
Mercedes A3805450026 - Розетка
CITARO 12M 2-TUERER 628.037
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 040 CONTACT PARTS,GROMMETS,MOUNTING PARTS, BULBS IL. 3
Поз.
Артикул
Описание
656
N922014015490
LINE1,5MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
659
N922014025490
LINE2,5MM?, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
671
A0385459428
PLUG
674
A0015454780
GASKET
677
A0035455426
PLUG SOCKET 4-POLE
680
A0005453480
GASKET
689
A0015454580
GASKET
692
A0005466235
BOOT REAR "ENR" SOLENOID VALVE BRANCH-OFF
695
A0015454680
GASKET
698
A0009909654
NUT SOLENOID VALVE
707
A3805450026
PLUG SOCKET PRESSURE SWITCH SCREW-CONNECTION TO M 24X1
707
A3805450226
PLUG SOCKET A B S SENSOR CABLE SCREW-CONNECTION
710
A3805461135
BOOT CABLE HARNESS EXTENSION
710
A3805460335
BOOT CABLE HARNESS EXTENSION
713
A0009902054
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
713
A0009903654
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
716
A0009906840
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
716
A3809900140
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 27X1,5 129167
728
A0005450029
RIGHT-ANGLE PLUG
731
A0225459428
PLUG
734
A0075451026
SOCKET CONTACT
737
A0015454680
GASKET
740
A0005453439
RUBBER RING
743
A0009909654
NUT SOLENOID VALVE
746
A0189976448
SEAL RING
749
A0015460135
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
752
A0335455528
PLUG HOUSING PRESSURE SENSOR
755
A0295456428
CONTACT PIN1.0-2.5MM
758
A0005457380
CORE BUNDLE SEALING1.0-2.5 MM2
