Главная
›
Mercedes
›
BUS
›
CITARO 12M 2-TUERER
›
628.037
›
83 HEATING AND VENTILATION
›
360 RECIRCULATING PUMP

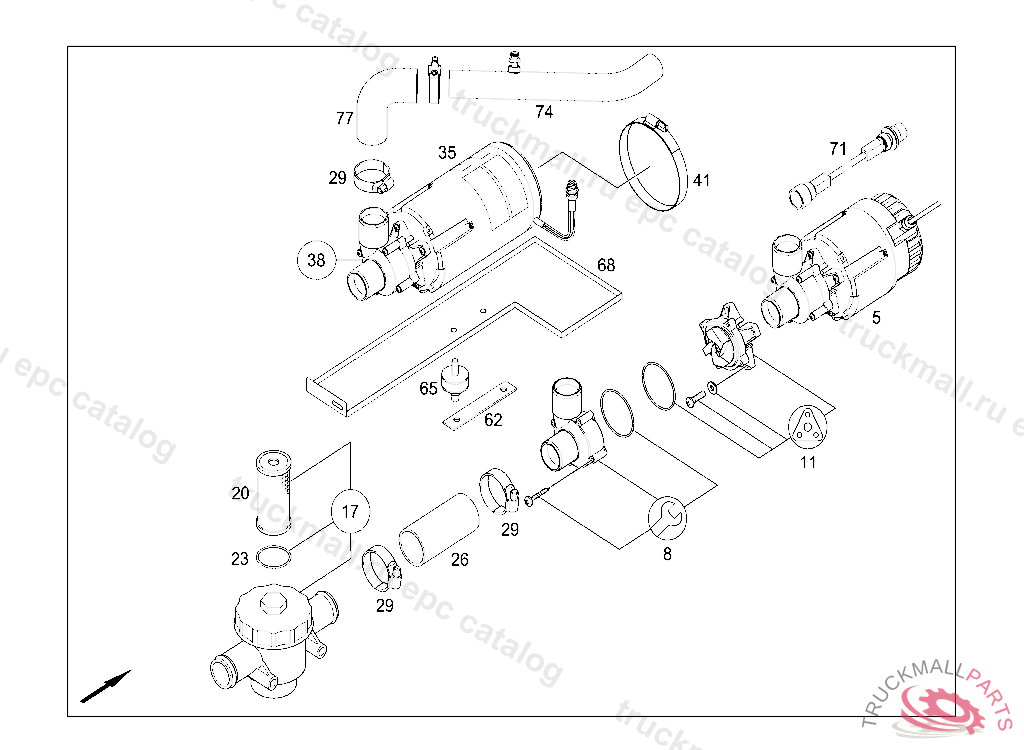

Mercedes A6288219001 - LU ZB LEITUNGSSATZ A
CITARO 12M 2-TUERER 628.037
83 HEATING AND VENTILATION - 360 RECIRCULATING PUMP
Поз.
Артикул
Описание
5
A0028352964
PUMP CIRCULATION PUMP 2,U4856
8
A0008352039
REPAIR KIT PUMP COVER
11
A0018356798
GASKET KIT REPAIR KIT
17
A0008322072
WATERFILTER
20
A0018356947
FILTER
23
A0018358398
SEAL
26
A0008322694
HOSE38X4,5X65MM
29
N000000000671
CLAMP
29
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
35
A0028354764
PUMP CIRCULATION PUMP 1,U4854
38
A0008336226
COUPLING PARTS KIT
41
N000000000673
CLAMP HOSE TO RETARDER 60-80X13 MM
62
A0008350296
PAD
65
A3225040212
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
65
A0008330194
BUFFER , Replaced By: A3225040212
68
A0008352211
PLATE
68
A0008353211
BASE PLATE
71
A6288219001
ELECTRIC CABLE
74
A0078304515
PIPE LINE
77
A0018320094
HOSE FROM HEATING WATER PIPE TO HEATER
