Mercedes A0007232001 - DREHFALLENSCHLOSS RE

O 530 N3 EURO 3 628.043

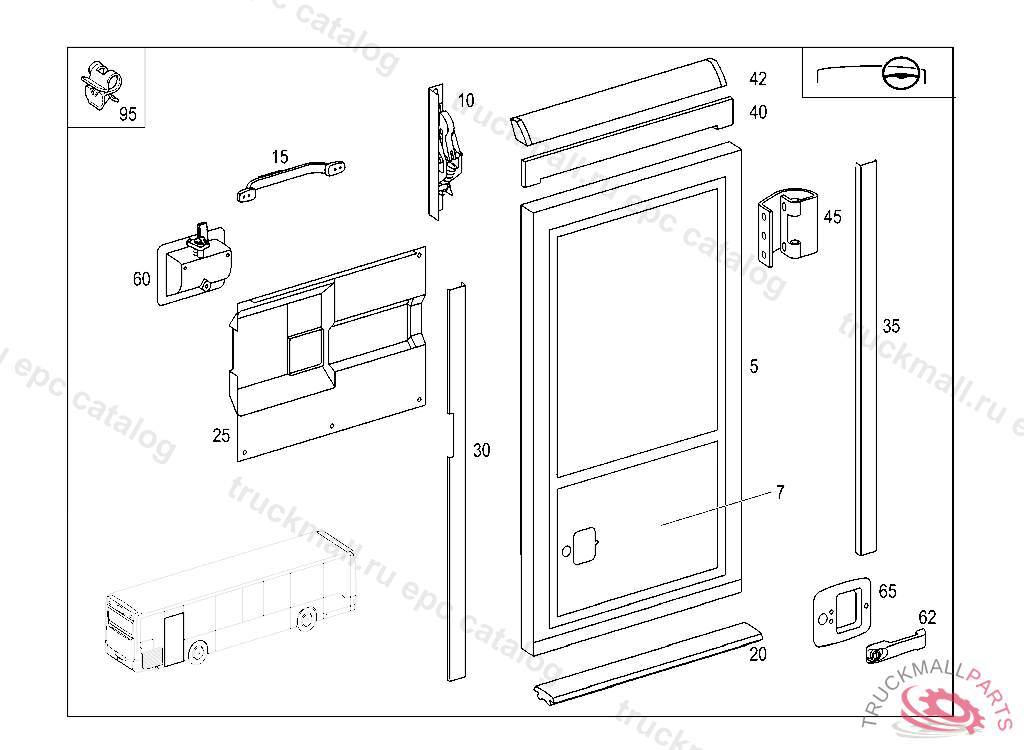

73 DOORS - 085 EMERGENCY DOOR

Поз.
Артикул
Описание
5
A6287300003
DOOR SHELL , NO.7365 INO.5856 INO.7327 IIII
7
A6287320009
PANELLING
10
A0007501450
LOCK (LOCK),LESS KEY
15
A3358155136
HANDLE LEFT AND RIGHT, NO.7365I.......I.......I.......I.......I....... I
20
A0009876614
RUBBER STRIP , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
25
A6287330023
COVERING
30
A6287330123
COVERING LEFT
35
A6287330223
COVERING RIGHT
40
A6287330323
COVERING TOP
42
A6286901101
DRIP MOULDING
45
A0007300137
HINGE BOTTOM
45
A0007300037
HINGE TOP
60
A6277600360
HANDLE BLACK
62
A6277600159
DOOR HANDLE
65
A0007330398
SEAL
95
A0089888478
CLIP
999
A6287300035
DOOR LOCK COMPLETE
999
A0048206210
SWITCH LOCKING MECHANISM
999
A0008003672
DOOR CYLINDER PNEUMATIC
999
A0007606078
VALVE 3/2-WAY VALVE
999
A0007232001
LOCK
