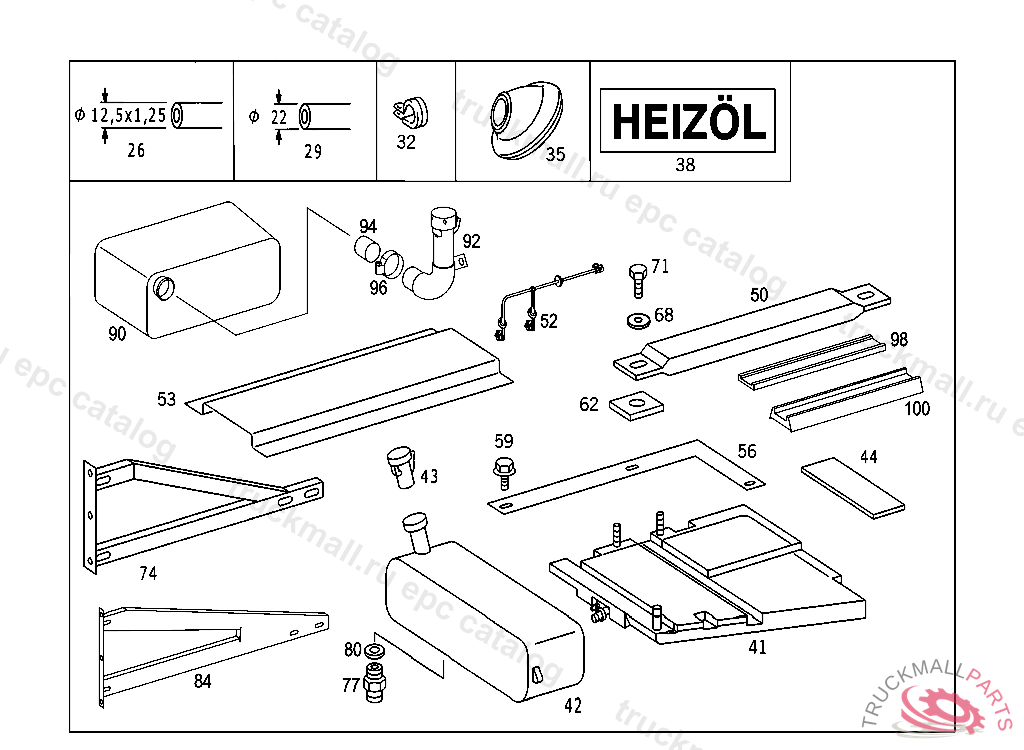

Mercedes A6284750046 - PROTECTION PLATE

26

PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM

29

LINE DE-AERATION

29

HOSE BREATHER PIPE TO FUEL TANK, FROM CHASSIS 005564 ALSO INSTALLED ON 005452,005460,005468,005469,005476,005483,005484,005491,005492,005498,005499,005506,005513,005514, 005519,005520,005526-005528,005532-005536,005538-005543,005549-005551,005558,005559.

32

CLAMP25-40X13 MM

35

GROMMET LINE CONNECTION

38

GUIDE SIGN IN GERMAN

41

FUEL TANK55 L

41

FUEL TANK55L

44

PAD ,101397

44

PAD600X50X7,101396103474100514

44

RUBBER MAT234,5X52X5,101397 FROM IDENT NO. WEB 103286103474

50

SUPPORT

52

LINE (FUEL-OIL TANK)

56

PROTECTIVE PLATE

59

HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12

62

THRUST PLATE

68

WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER

71

SCREW BRACKET TO FRAME

999

FILTER ELEMENT

999

FILTER ELEMENT

999

GASKET23X15X3

999

GASKET14X22

999

GASKET22X18X1,5

999

SEAL F FILLER NECK. GASKET

999

SEAL RING
