Mercedes A3116954414 - Halter

O 530 N3 EURO 3 628.045

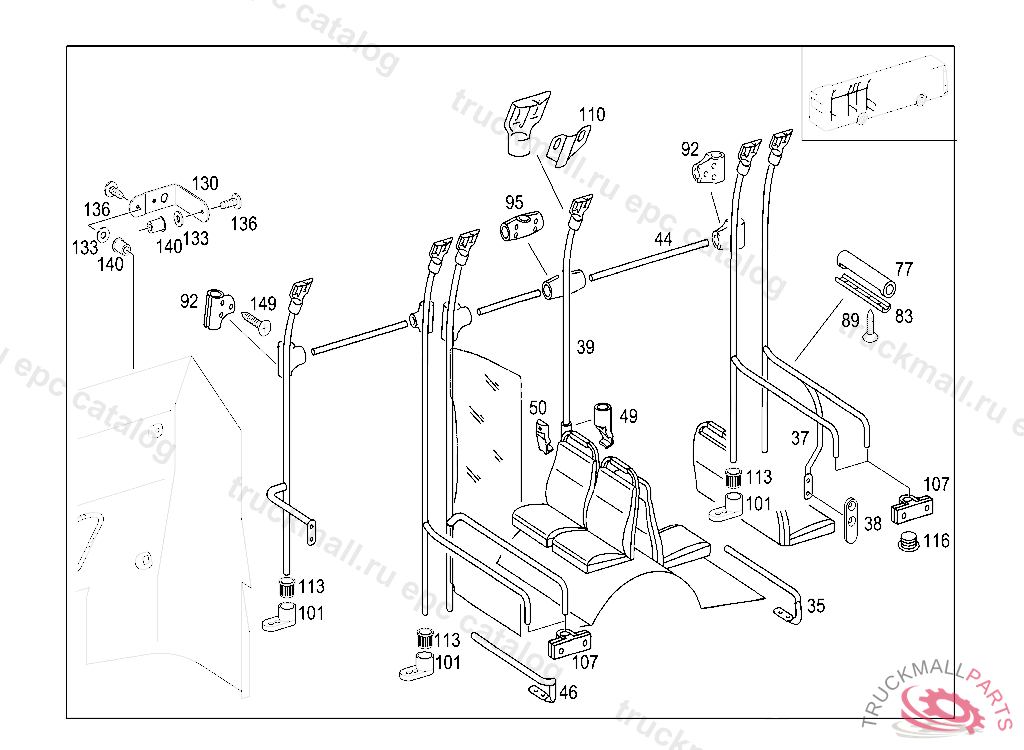

81 APPOINTMENTS - 440 GRIP RAILS,COMMUNICATOR SYSTEM BUTTON, PARTITION PANE,REAR RIGHT IL. 3

Поз.
Артикул
Описание
89
N914127004202
SHEET METAL SCREW BRACKET TO FIRE WALL
92
A6288150214
BRACKET
95
A6288150314
BRACKET GRIP RAIL MOUNTING, STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
101
A6288150814
BRACKET AT VERTICAL GRIP RAIL,BOTTOM, STATE COLOR NUMBER WHEN ORDERING
107
A3578150814
BRACKET
110
A6288150714
BRACKET
130
A3116954414
BRACKET , NO.7331I.......I.......I.......I.......I....... I
133
N000000003250
WASHER BRACKET TO CAB REAR PANEL
136
N000000002250
HEXALOBULAR BOLTM8X30
136
N000000003120
HEXALOBULAR BOLTM8X16
140
N913024008101
RIVETED NUT , Replaced By: N913024008104
140
N913024008104
RIVET NUT. RIVETED NUT CONNECTING PIPE TO CAB CROSS MEMBER
149
N007983003288
SHEET METAL SCREW3,9X19 MM
