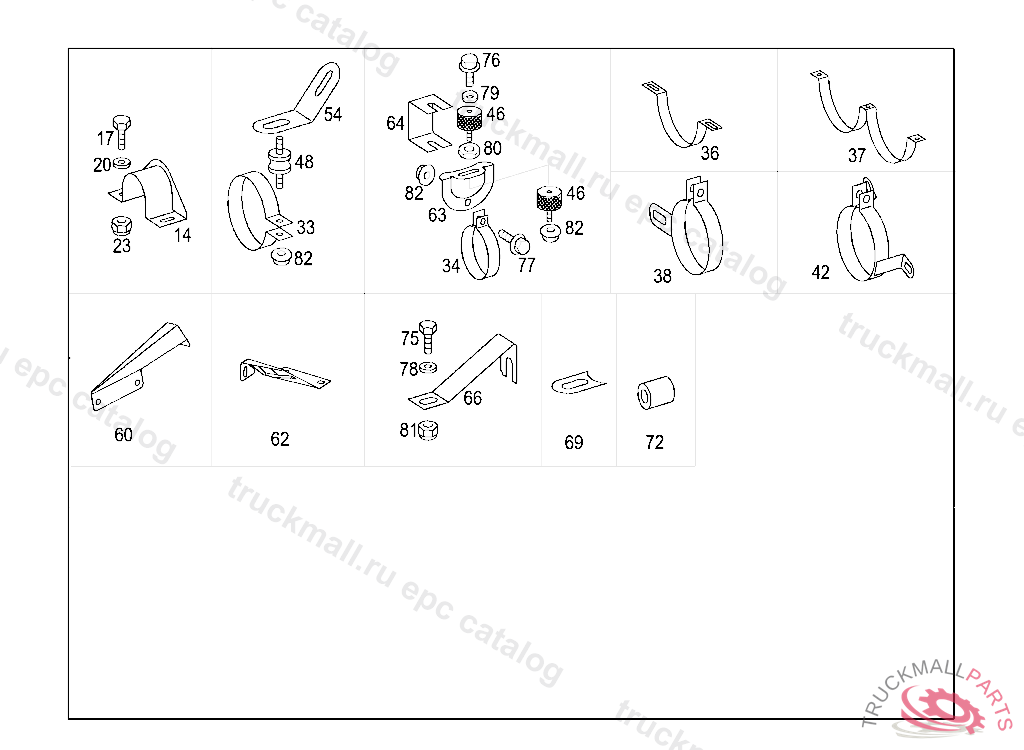

Поз.
Артикул
Описание
17
SCREW , Replaced By: N910105010009
17
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
20
WASHER BRACKET TO BRACKET
23
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
33
CLAMP CONNECTION OF CHARGING AIR PIPES
34
CLAMP
36
CLAMP CONNECTION OF CHARGING AIR PIPES
37
CLAMP CONNECTION OF CHARGING AIR PIPES
38
CLAMP. STRAP CONNECTION OF CHARGING AIR PIPES
42
STRAP CONNECTION OF CHARGING AIR PIPES
46
RUBBER MOUNTING FASTENING OF LINES AND HOSES
48
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
54
ANGLE FASTENING OF LINES AND HOSES
60
ANGLE FASTENING OF LINES AND HOSES
62
BRACKET
63
BRACKET PIPE ELBOW TO SUBSTRUCTURE
64
BRACKET FASTENING OF LINES AND HOSES
66
BRACKET FASTENING OF LINES AND HOSES
66
BRACKET AT TRANSMISSION
69
BRACKET FASTENING OF LINES AND HOSES
72
SPACER WASHER
75
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
75
SCREW CLAMP TO EXHAUST PIPE
75
SCREW BRACKET MOUNTING M6 X 20
75
SCREW BRACKET TO SIDE MEMBER M8X20
75
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
76
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
77
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
78
WASHER BRACKET TO BRACKET
78
WASHER , Replaced By: N009021008213
78
WASHER BRACKET TO LEFT SIDE MEMBER
78
WASHER COLD START SYSTEM TO BRACKET
78
WASHER TRANSMISSION TO INTERMEDIATE RING
78
WASHER BRACKET TO CAB REAR PANEL
78
WASHER , Replaced By: N009021006208
79
WASHER BRACKET TO COVERING
80
NUTM10
81
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
81
NUTM8
81
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
81
NUT HORN TO BRACKET M8
81
NUT STRAP TO BRACKET
81
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
82
HEXAGON NUT
999
AIR INTAKE PIPE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
999
LINE CHARGING AIR LINE
