Mercedes A6286300317 - ZB TUERRAHMEN (T

O 530 GNUE3 EURO 2 628.201

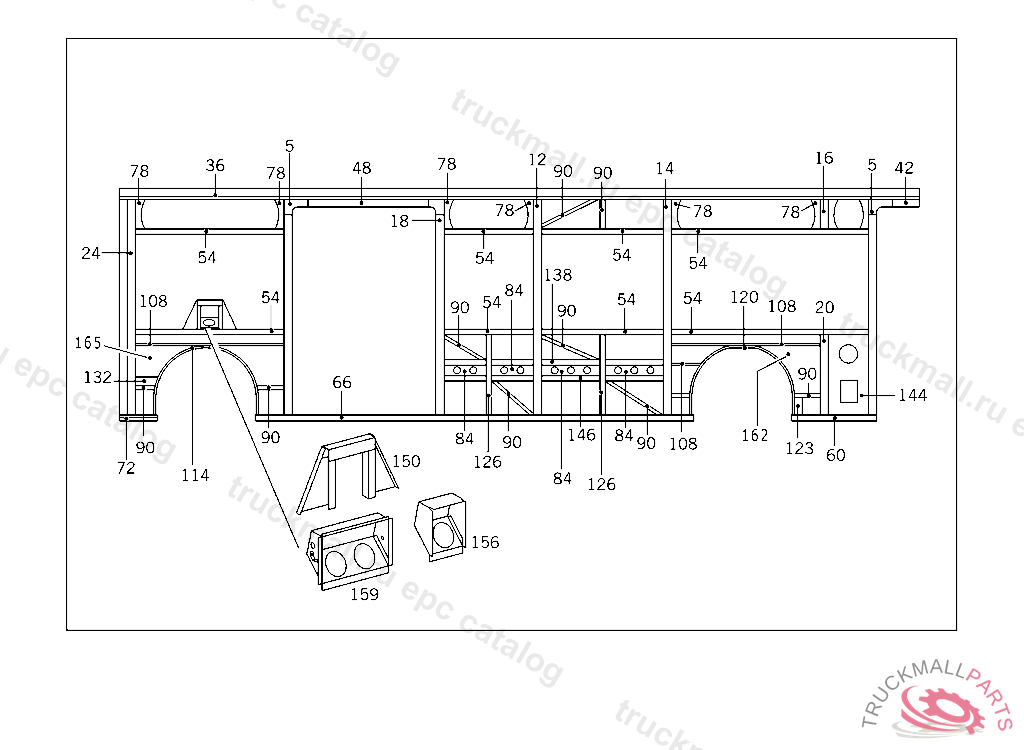

63 SIDE PANELS - 240 FRONT CARRIAGE FRAMEWORK,RIGHT

Поз.
Артикул
Описание
5
A6286300110
PILLARNO. 1 + 5
12
A6286310910
PILLAR PART
14
A6286301210
PILLARNO. 2
14
A6286302510
PILLARNO. 2
16
A6286313110
PILLAR PART
18
A6286300210
PILLARNO. 2 + 3
20
A6286313210
PILLAR PART
24
A6286300910
PILLARNO. 6
36
A6286301240
SUPPORT TOP
42
A6286300117
FRAME FRONT DOOR
42
A6286300317
FRAME FRONT DOOR
48
A6286300017
FRAME DOOR,TOP
54
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
60
A6286300740
SUPPORT BOTTOM
60
A6286302240
SUPPORT BOTTOM
66
A6286300840
SUPPORT BOTTOM
72
A6286301940
SUPPORT BOTTOM
78
A6286341316
REINFORCEMENT TOP
84
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
90
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
108
A6286321840
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
114
A6286320030
WHEEL BOW
120
A6286320230
WHEEL BOW
123
A6286310410
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
126
A6286310110
PILLAR PART
132
A6286340316
REINFORCEMENT
138
A6286327440
SUPPORT. RECTANGULAR TUBE50X40X2X1480MM, TO BE ADAPTED DURING ASSEMBLY
144
A6286320719
WEB
146
A6286321719
WEB
156
A6286027608
COVERING
162
A6286300627
PANELLING
162
A6286300827
PANELLING
165
A6286300227
PANELLING
