82 ELECTRICAL SYSTEM

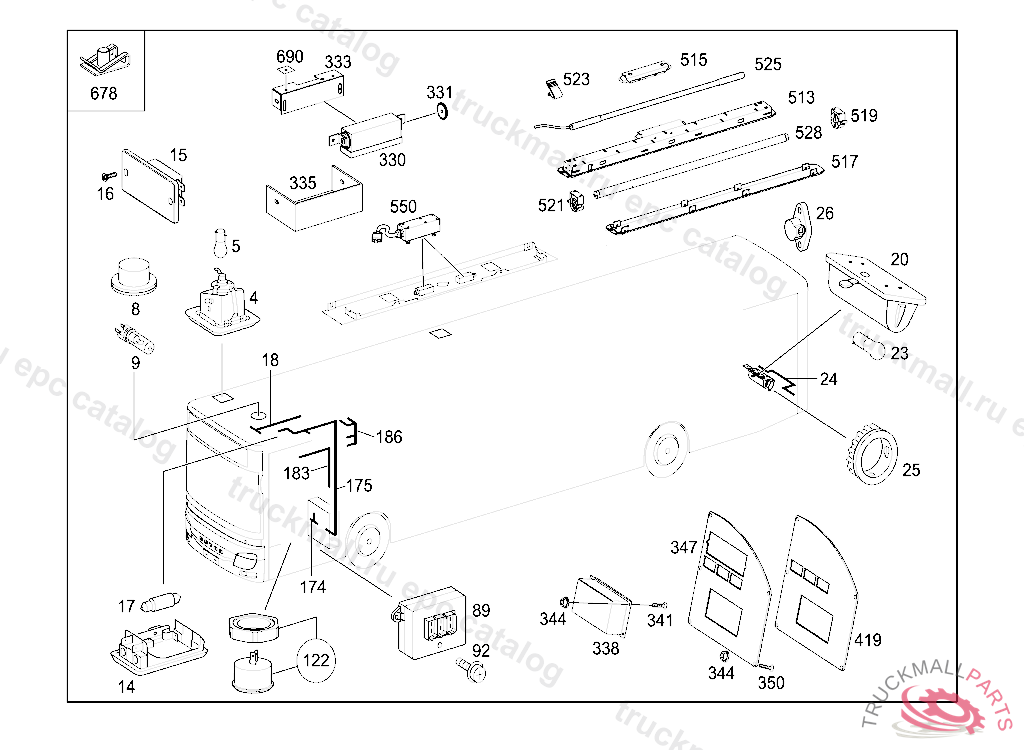

480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1

Mercedes A0018207601 - ZB INNENLEUCHTE

S 415 NF 3-TUERER 628.788

82 ELECTRICAL SYSTEM - 480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1

Поз.
Артикул
Описание
4
A0018207601
INTERIOR LAMP ABOVE DOOR
5
N072601024190
BULB , Replaced By: N072601024192
8
A0018205701
INTERIOR LAMP (DOME LAMP),084016 ,AB IDENT-NO. SIEHE SA 72035/35/37/39
9
A0008250794
BULB HALOGEN 28 V / 20 W
14
A1238200101
INTERIOR LAMP , Replaced By: A1268201301
15
A0028203201
ENTRANCE LIGHT ACCOMMODATION BOX LED, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.10.2010
16
A0009907710
COUNTERSUNK WOOD SCREW
17
N072601024131
BULB24V/5W
18
A6668207504
ELECTRIC CABLE COUNTER LIGHTING
20
A0008250040
ENGINE COMPARTMENT LAMP
23
N000000000604
BULB RAMP WARNING SYSTEM 15W
24
A6284405534
CABLE HARNESS ENGINE COMPARTMENT LAMP IN ENGINE COMPARTMENT
24
A6284405434
CABLE HARNESS ENGINE COMPARTMENT LAMP IN ENGINE COMPARTMENT
25
A0005460522
NUT. CLAMPING RING
26
A0008210624
PLUG SOCKET HAND LAMP
89
A0065456024
PULSE SENDER UNIT
92
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
92
N007985004178
SCREW JUNCTION BOX
122
A0048206626
SIGNAL BELL REQUEST FOR STOP
174
A6288208713
ELECTRIC CABLE ELECTRICAL COMPARTMENT, LIGHTING
175
A6288208813
ELECTRIC CABLE READING LAMP
175
A6288206515
ELECTRIC CABLE DRIVER'S SEAT LIGHTING X0233 - 31S13/X0130/X0131
183
A3118206217
ELECTRICAL WIRING HARNESS DESTINATION INDICATOR
186
A3118201931
ELECTRICAL WIRING HARNESS DESTINATION INDICATOR
330
A0008223759
LIGHT BARRIER ABOVE DOOR
330
A0008224059
LIGHT BARRIER. PHOTOELECTRIC BARRIER
330
A0008223959
LIGHT BARRIER
331
A0129901682
SHIM FOR PHOTOELECTRIC LIGHT BARRIER, ONLY REPLACEABLE BY PAIRS ORDER ADDITIONALLY: N 007981 002204
331
A0039907082
ADJUSTING WASHER FOR PHOTOELECTRIC LIGHT BARRIER, ONLY REPLACEABLE BY PAIRS, Replaced By: A0129901682
333
A6288274812
ANGLE FOR PHOTOELECTRIC LIGHT BARRIER
335
A6288272740
COVERING. COVER BOX FOR PHOTOELECTRIC LIGHT BARRIER
338
A0048271445
CTRL. UNIT INDICATOR SYS. DESTINATION INDICATOR
338
A0048277745
CTRL. UNIT INDICATOR SYS. DESTINATION INDICATOR MOBITEC
341
N000000007097
HEXALOBULAR BOLTM4X25
341
A0039907512
BOLT W HEX. SOCKET
341
A0039907912
SCREW, SPECIAL SHAPE. SCREWM4 X 16
344
N304032003001
NUT BRACKET MOUNTING
344
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
344
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
347
A3236882708
COVER DESTINATION INDICATOR
347
A3116885708
COVER DESTINATION INDICATOR
350
N000000007005
SCREWM4X20
350
A0009905031
HEXAL. SKT. OVAL HD. SCR.M4X20
419
A3236882608
COVER
419
A3116882608
COVERING
513
A3568204901
INTERIOR LAMP
515
A0008211161
SERIES TRANSFORMER WITH DIMMUNG
517
A0008220227
LENS
519
A0008251982
SOCKET LESS SPRING CLAMP
521
A0008252082
SOCKET WITH SPRING CLAMP
523
A0008241132
CLAMP
525
A0148204904
LIGHT GUIDE
528
N000000006736
FLUORESCENT LAMPIEC 60081 - TL D
528
N000000004230
FLUORESCENT LAMP
550
A0038213651
LIGHT SENSOR ABOVE DOOR
678
A0009906756
CAGE NUTM5
690
A6286950094
INSERT
999
A0009870772
EDGE GUARD SECTION , ORDER BY THE METER
999
A6288270214
BRACKET FASTENING TO STAR POINT
