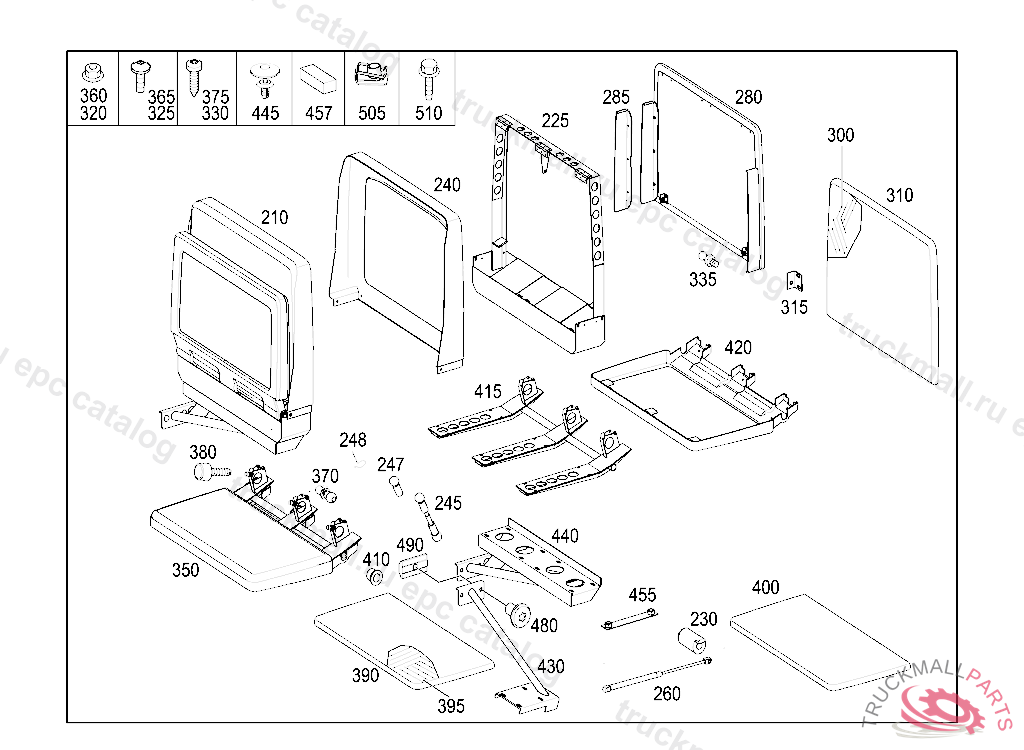

Поз.
Артикул
Описание
210
FOLDING SEAT FOLDING SEAT, ONE AND A HALF SEATER, LEFT IN DIRECTION OF TRAVEL
225
SEAT FRAMEWORK TWIN FOLDING SEAT
230
SUPPORT SEAT FRAMEWORK
240
PANELLING BACKREST
245
ROD
247
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
248
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
260
GAS PRESSURE SPRING BACKREST
280
BACKRESTTO A6289300505
285
COVERING RIGHT, .......INO.7E86I.......I.......I II
285
COVERING LEFT, .......INO.7E86I.......I.......I II
300
COVER , STATE COLOR WHEN ORDERING
310
PAD
315
ANGLE
320
NUT , Replaced By: N913023006001
325
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
330
TAPPING SCREW4,2X16
335
BALL PIVOT ACCELERATOR PEDAL,4 859026
350
SEAT CUSHIONTO A6289300505
360
NUT , Replaced By: N913023006001
360
NUT BRACKET TO FIRE WALL
365
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
370
BALL PIVOT ACCELERATOR PEDAL,4 859026
375
TAPPING SCREW CONTROL UNIT TO FIRE WALL
380
BUFFER , Replaced By: A2019880511
390
SEAT CUSHIONTO A6289300721
395
COVER , STATE COLOR WHEN ORDERING
400
PAD
410
BUSHING
415
SEAT CUSHION FRAME
420
COVERING
430
SEAT FRAMEWORKTO A6289300605 / A6289300705
440
SEAT FRAMEWORK PASSENGER SEATS, REAR RIGHT, 3 DOORS, NO.7365I.......I.......I.......I.......I....... I
445
RIVET COVERING TO BODY
455
PLATE
457
MOUNTING STRIP80X30X20
480
SCREW DOUBLE OCCUPANCY SEAT TO SIDE PANEL AND TO FLOOR M10X18MM
490
SLIDE
505
NUT RETAINER , Replaced By: A3229900091
510
SCREW , Replaced By: N910143008000
