Главная
›
Mercedes
›
BUS
›
S 415 NF 3-TUERER
›
628.788
›

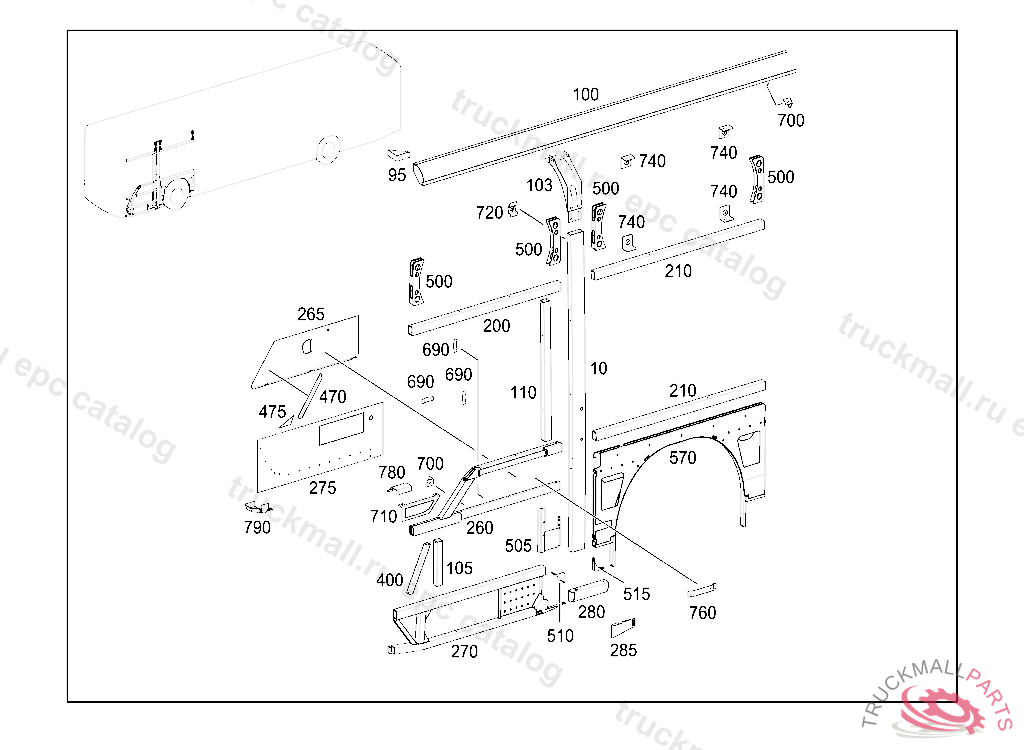

63 SIDE PANELS
›
150 LEFT FRAMEWORK IL. 1
Mercedes A6286302225 - ZB TRAEGER / FRONTBO
S 415 NF 3-TUERER 628.788
63 SIDE PANELS - 150 LEFT FRAMEWORK IL. 1
Поз.
Артикул
Описание
10
A6286303810
PILLAR
10
A6286301610
PILLARNO. 1
95
A3576220716
REINFORCEMENT
100
A6286303425
SUPPORT
103
A6286020232
REINFORCEMENT
105
A6286333405
STRUT
110
A6286310210
PILLAR PART DRIVER'S WINDOW
200
A6286320840
SUPPORT
210
A6286320440
SUPPORT
260
A6286304640
SUPPORT DRIVER'S WINDOW
265
A3116021708
COVER
270
A6286302225
SUPPORT
275
A6286026038
COVER
280
A6286305525
SUPPORT
285
A6286342816
REINFORCEMENT
400
A6286333205
STRUT40 X 30 X 2 X 383, TO BE ADAPTED DURING ASSEMBLY
470
A3116025549
ATTACHMENT ANGLE BRACKET
475
A6286026239
COVER
500
A6286341316
REINFORCEMENT TOP
505
A6286340231
CONSOLE
510
A6286342716
REINFORCEMENT
515
A3576310032
CONNECTION
570
A6286303427
PANELLING FRONT AXLE,LEFT
690
A3016020014
BRACKET
700
A3016145914
BRACKET
710
A3116023676
BRACKET
720
A3056000014
BRACKET
740
A3056102812
ANGLE
760
A6286020836
BRACKET , Replaced By: A6286025678
760
A6286025678
BRACKET
780
A6286026077
BRACKET
790
A6286281731
CONSOLE
