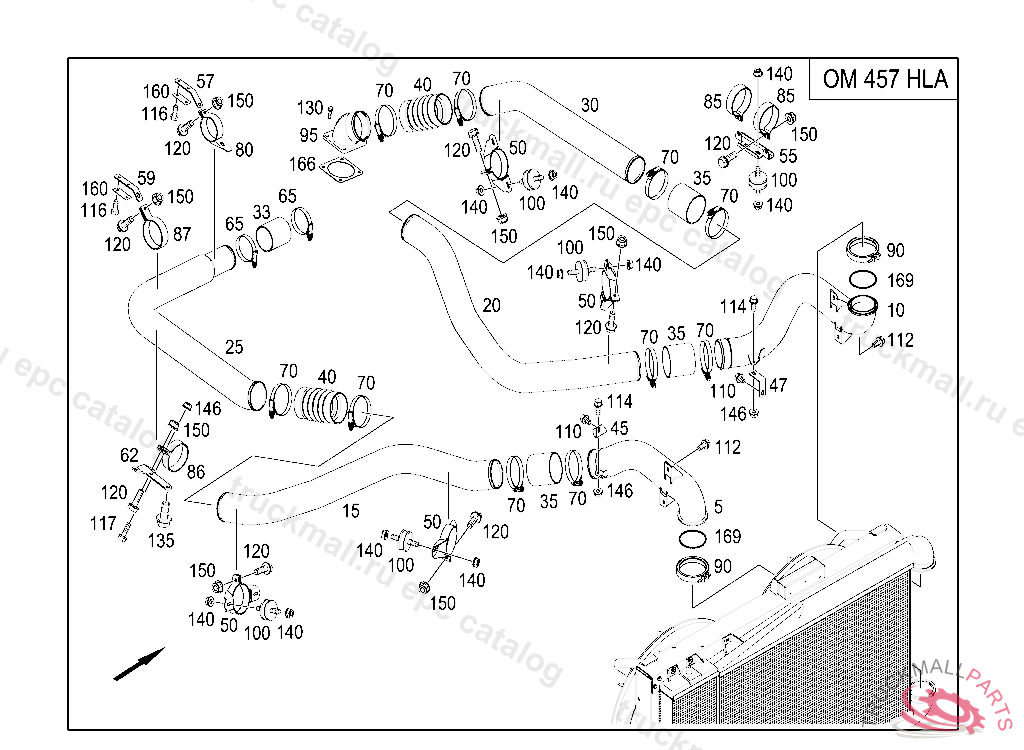

Поз.
Артикул
Описание
5
AIR INTAKE PIPE FROM TURBOCHARGER TO CHARGE AIR INTERCOOLER
10
AIR INTAKE PIPE FROM CHARGING AIR INTERCOOLER TO ENGINE
15
AIR INTAKE PIPE
20
AIR INTAKE PIPE COLD AIR INTAKE
25
AIR INTAKE PIPE
30
AIR INTAKE PIPE
33
CHARGE AIR HOSED85MM
35
HOSE AIR INTAKE PIPE TO ENGINE
40
CHARGE AIR HOSE. HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
45
BRACKET
47
BRACKET
50
BRACKET
55
BRACKET
57
BRACKET
59
BRACKET
62
BRACKET
62
BRACKET , PRODUCTION BREAKPOINT AS OF 28.08.09
65
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
70
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
80
CLAMP DIA., 85,5MM
85
CLAMP
86
CLAMP
87
CLAMP CONNECTION OF CHARGING AIR PIPES
90
CLAMP (CHARGING AIR INTERCOOLER)
95
FLANGE
100
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
110
SCREW PIPE ELBOW TO BRACKET M8X12
112
SCREW , Replaced By: N910143008000
114
SCREW BRACKET TO CAB REAR PANEL M 8X20
116
SCREW PIPE CLAMP
117
SCREW , Replaced By: N910143008002
120
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
130
SCREW BRACKET TO SIDE MEMBER M10X35
135
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
135
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
135
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
140
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
146
NUT HORN TO BRACKET M8
150
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
160
LOCK
166
GASKET
169
GASKET (CHARGING AIR INTERCOOLER)
999
SPACER TUBETO A 628 500 35 31
