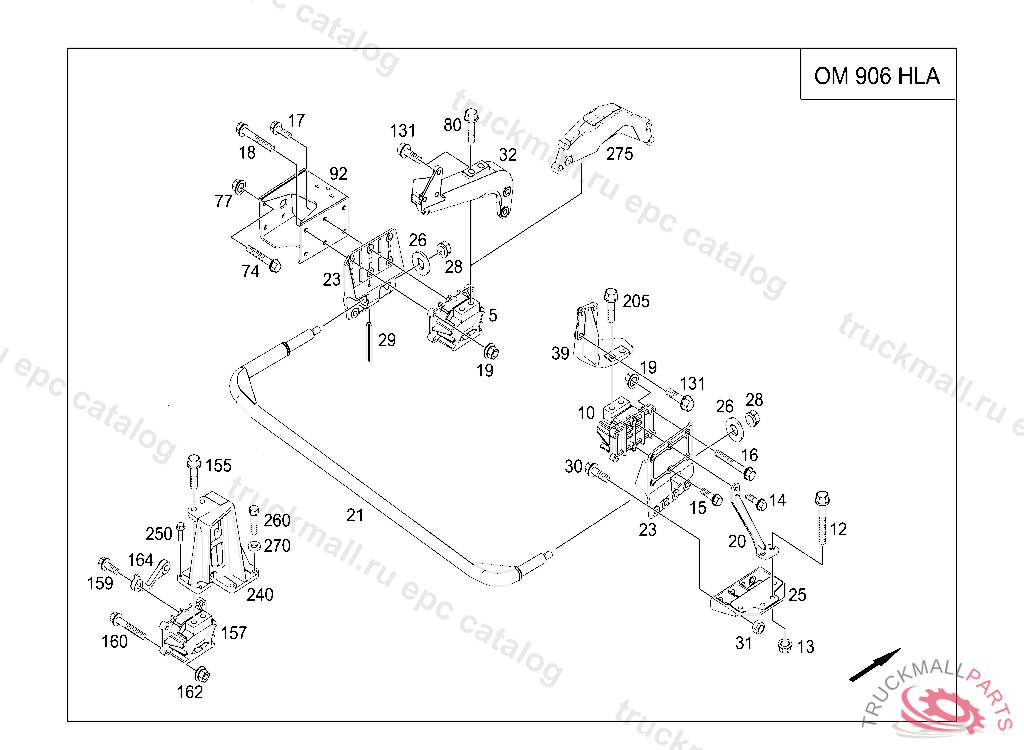

Поз.
Артикул
Описание
5
RUBBER MOUNTING LEFT
5
RUBBER MOUNTING LEFT OM 457 / OM 906
10
RUBBER MOUNTING RIGHT OM 457 HLA
10
RUBBER MOUNTING RIGHT
12
HEXAGON HEAD BOLT SUPPORTING ARM TO BELL HOUSING M18X1.5X60
12
HEXAGON HEAD BOLT BEARING BRACKET TO FRAME M18X1.5X60, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
13
NUT RETARDER HOUSING TO TRANSMISSION CASE
13
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
14
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
14
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
15
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
15
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
16
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
16
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
17
SCREW SUPPORT TO SIDE MEMBER M 14X45
17
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO ENGINE SUPPORT M 14X1.5X45
18
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO ENGINE SUPPORT M 14X1.5X70
19
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
19
NUT SUPPORT TO FRAME
20
REINFORCEMENT RIGHT OM 457
20
REINFORCEMENT RIGHT OM 906 HLA
21
BEARING TUBEOM 906
23
BEARING BRACKETOM 457
25
SUPPORTOM 906
26
WASHER DIA., 56
28
NUT
29
ROLL PIN
30
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
30
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
31
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
31
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
32
ENGINE SUPPORT LEFT OM 906 HLA , ZF
39
ENGINE SUPPORT RIGHT OM 906
74
HEXAGON HEAD BOLT. SCREW CONSOLE TO FRAME END PLATE M14X1.5X40
74
SCREW , Replaced By: A9429901304
77
NUT SUPPORT TO FRAME
77
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
HEXAGON HEAD BOLT BRACKET MOUNTING LEFT & RIGHT M18X1.5X55
80
HEXAGON HEAD BOLT. SCREW SUPPORTING ARM TO ENGINE REAR MOUNTING M 18X1.5X80
80
HEXAGON HEAD BOLT ENGINE MOUNTING TO CONSOLE M18X1.5X55
80
HEXAGON HEAD BOLT TOWING EYE TO FRAME M18X1.5X80
92
CONSOLE VEHICLE WIDTH 2550 MM
131
SCREW GUSSET PLATE TO CROSS MEMBER M16 X 1.5 X 40
131
HEXAGON HEAD BOLT AT FRAME, REAR M16X1.5X40
155
HEXAGON HEAD BOLT. SCREW PLATE TO SIDE MEMBER M18 X 1.5 X 45
155
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M18X1.5X45
157
RUBBER MOUNTING WITH AIR CONDITIONER OM 906, Replaced By: A6282401817
157
RUBBER MOUNTING LESS AIR CONDITIONER OM 906 HLA
157
RUBBER MOUNTING TOP OM 457
159
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
159
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
160
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
160
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
162
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
162
NUT SUPPORT TO FRAME
164
LOCK , Replaced By: A6282420135
164
FASTENING PLATE
205
HEXAGON HEAD BOLT CROSSMEMBER AND BEARING BRACKET TO FRAME M18X1.5X40
205
HEXAGON HEAD BOLT ENGINE MOUNTING TO CONSOLE M18X1.5X55
205
HEXAGON HEAD BOLT BRACKET MOUNTING LEFT & RIGHT M18X1.5X55
205
HEXAGON HEAD BOLT REAR AXLE SHAFT TO HUB M18X1.5X40
240
ENGINE SUPPORT
250
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
260
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
270
WASHER , Replaced By: A3539900240
275
TRANSMISSION CARRIER
