Поз.
Артикул
Описание

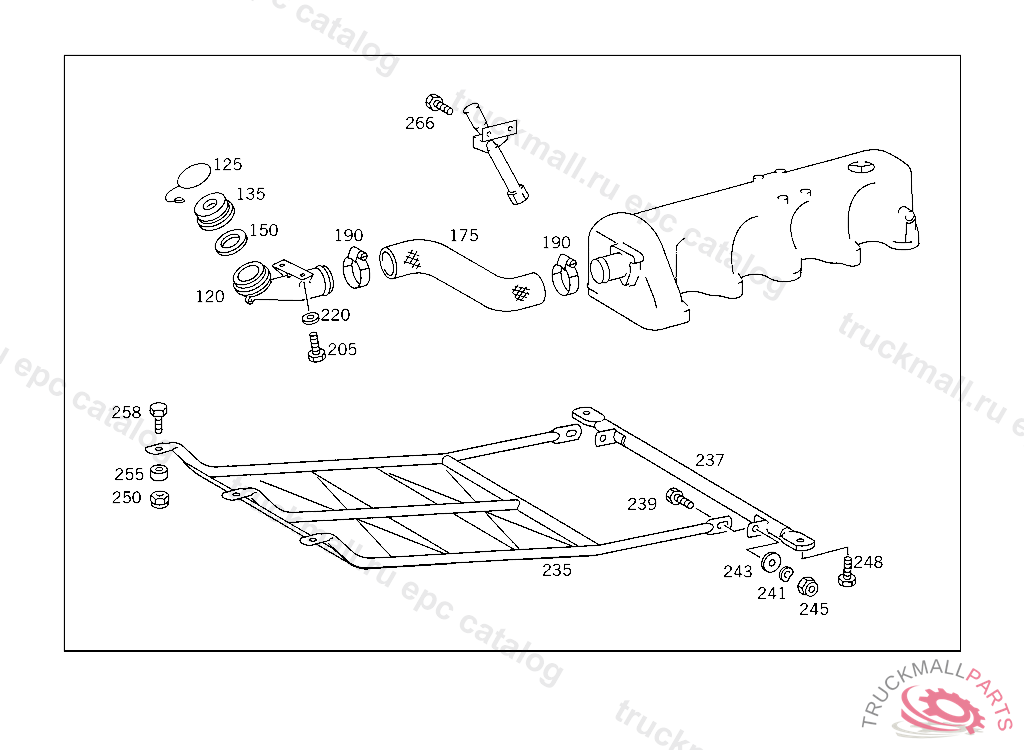

120
PIPE OIL FILLER NECK
125
FLANGE OIL FILLER NECK
135
CAP , Replaced By: A6310100085
135
PLUG OIL FILLING
150
GASKET
175
HOSE
190
LOOM TIE
190
CLAMP
190
CLAMP , Replaced By: N000000000671
190
LOOM TIE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 032543, Replaced By: A6319971890
190
LOOM TIE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 032543, Replaced By: A6319972290
190
LOOM TIE HOSE TO FILLER NECK
190
LOOM TIE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 032543, Replaced By: A6319972290
205
SCREW OIL FILLER NECK TO CAB
220
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
235
PROTECTIVE PLATE
235
PROTECTIVE PLATE ,007796021334, Replaced By: A6315201642, +001A6315200533
235
PROTECTIVE PLATE ,007795, Replaced By: A6315201542, +001A6315200433, +002A6315240071, +002N000125008418, +002N000137010201, +002N913004008005
237
SUPPORT ,021335
237
SUPPORT ,007796021334, Replaced By: A6315200533, +001A6315201642
239
SCREW PROTECTIVE PLATE TO BRACKET
241
SPRING WASHER STEERING COLUMN BRACKET TO CAB
243
WASHER BRACKET TO LEFT SIDE MEMBER
245
NUT BRACKET TO SIDE MEMBER
248
SCREW BEARING BRACKET TO CROSS MEMBER
250
NUT , Replaced By: N910113010000
255
SPACER RING ,099541
258
SCREW SENSOR CABLE TO PROTECTIVE PLATE
258
SCREW REAR EXHAUST PIPE TO MUFFLER
266
SCREW OIL DIPSTICK GUIDE TUBE TO BRACKET
