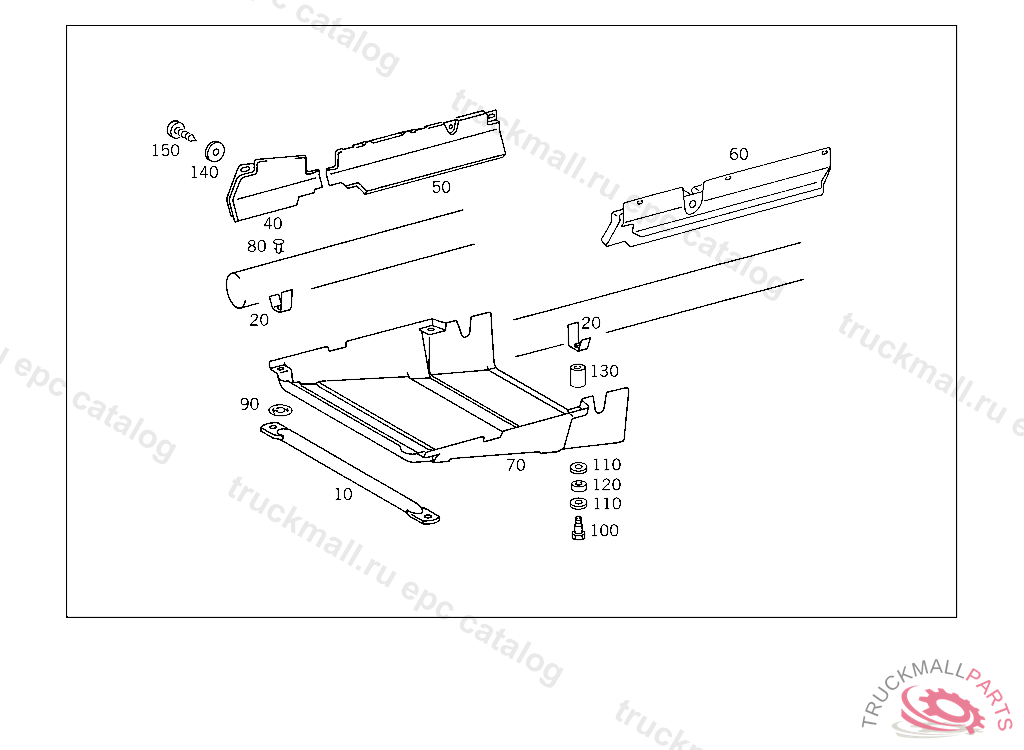

Поз.
Артикул
Описание
10
STRUT , Replaced By: A6315200533
10
SUPPORT ,021335
20
BRACKET ,052141, Replaced By: A6313101109, +001A6315240171, +001A6319870241, +001N000125010518
20
BRACKET AT FRAME,052142
40
ANTINOISE CAPSULE TOP RIGHT
50
ANTINOISE CAPSULE TOP RIGHT,073370
50
ANTINOISE CAPSULE TOP RIGHT,073371
60
ANTINOISE CAPSULE TOP LEFT,073371
60
ANTINOISE CAPSULE TOP LEFT,073370
70
ANTINOISE CAPSULE
80
LOCKING PIN ANTINOISE CAPSULE TO FRAME
90
LOCK PROTECTIVE PLATE TO BRACKET
100
SCREW ANTINOISE CAPSULE TO FRAME
100
SCREW ANTINOISE CAPSULE TO FRAME,052142
100
SCREW ANTINOISE CAPSULE TO FRAME
110
WASHER , Replaced By: N000125010532
120
RUBBER RING ANTINOISE CAPSULE TO FRAME,052142
130
SPACER TUBE ANTINOISE CAPSULE TO FRAME, TO BE ADAPTED DURING ASSEMBLY
130
SPACER TUBE ANTINOISE CAPSULE TO FRAME, TO BE ADAPTED DURING ASSEMBLY
130
SPACER TUBE ANTINOISE CAPSULE TO FRAME
130
SPACER TUBE ANTINOISE CAPSULE TO FRAME
140
WASHER , Replaced By: N009021005205
140
WASHER5,3
150
SHEET METAL SCREW
999
SPRING WASHER , Replaced By: N000137008212
999
GUIDE , NOT USED
999
BRACKET AT FRAME,073370
999
STRUT , NOT USED
999
PROTECTIVE PLATE
999
BRACKET , NOT USED
